Inline Connector End View (C340)

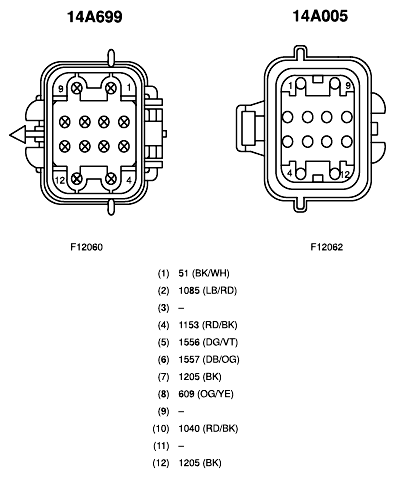

Fig 1: Identifying Inline Connector (C340)
G10360839Courtesy of FORD MOTOR CO.
