Valve - Seat Inspection

Valve and Seat Refacing Measurements

CAUTION: After grinding valves or valve seats, check valve clearance.

Check the valve head and seat.
- Check valve angles.
- Check margin width.
- Be sure margin width is within specification.

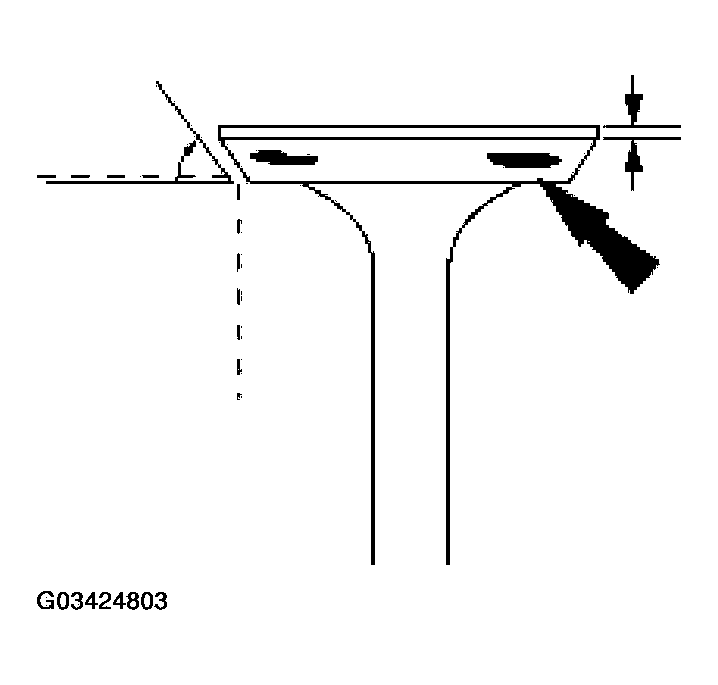

  Fig 1: Checking Valve Head And Seat
  Courtesy of FORD MOTOR CO.
Inspect for abnormalities on the valve face and seat.
