Component Locations

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

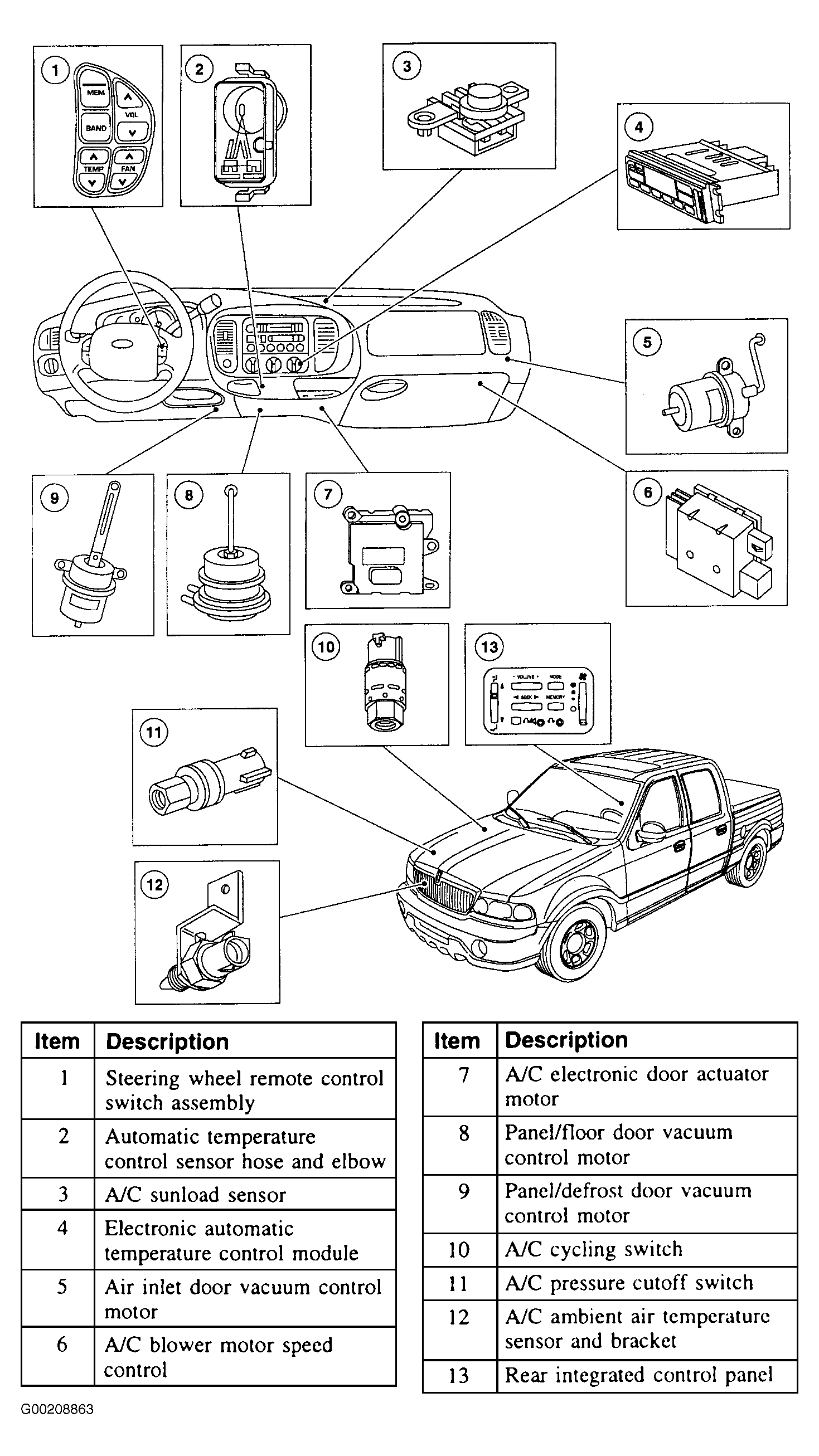

Fig 1: Locating HVAC Control Components

Courtesy of FORD MOTOR CO.
