Component Locations
WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

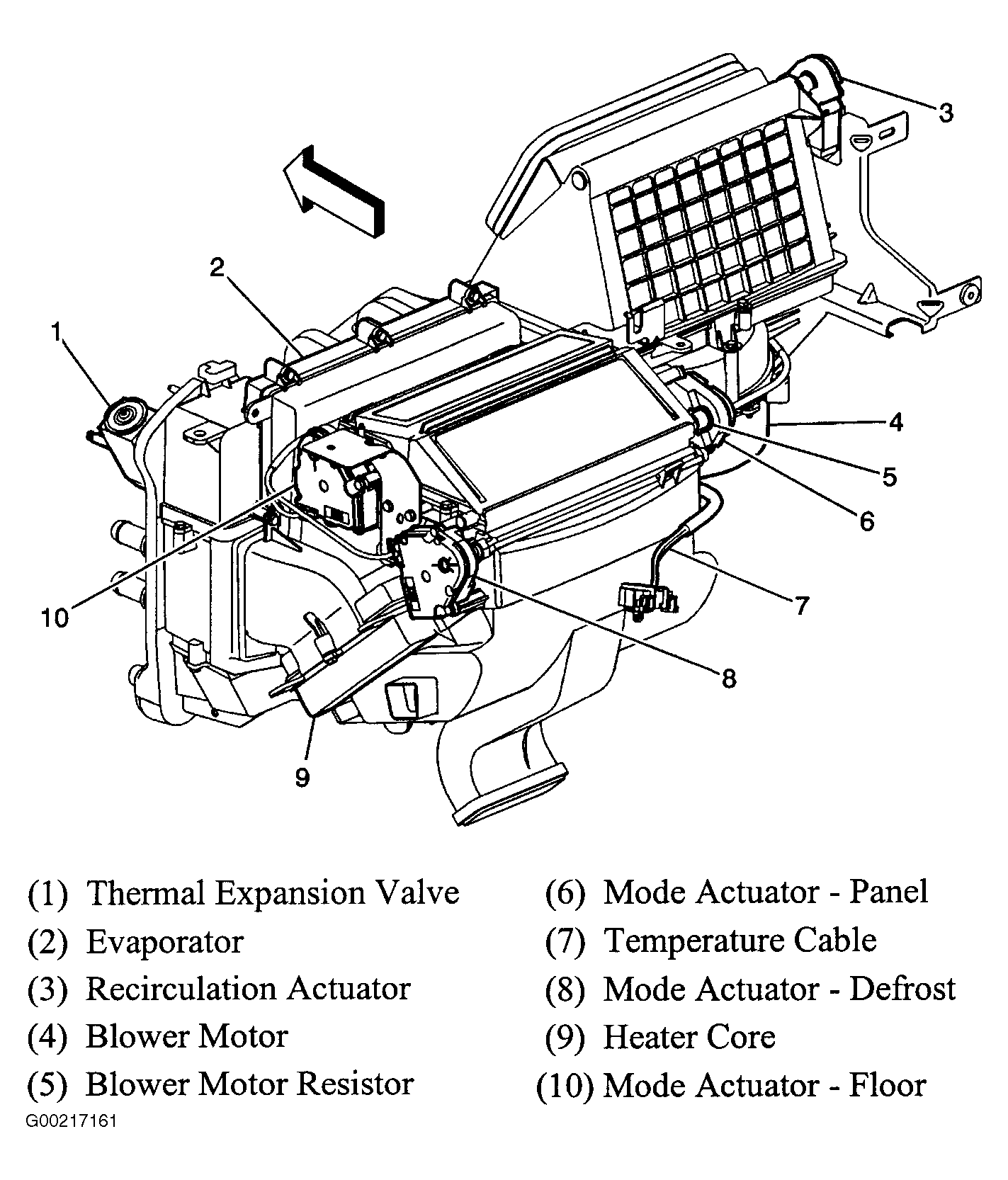

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| After Blow Relay (If Equipped) | In Instrument Panel Fuse Box |
| Air Inlet Assembly | Above Blower Motor |
| Blower Motor | On HVAC Case, Right Side Lower |
| Blower Motor Resistor | Next To Blower Motor |
| Compressor | Lower Front Right Side Of Engine |
| Compressor Relay | Engine Compartment Fuse Box |
| Condenser | Forward Of & Mounted To Radiator |
| Defrost & Mode Actuators | Left Side Of HVAC Module |
| Evaporator Core | Inside HVAC Module |
| Heater Core | Inside HVAC Module |
| HVAC Control | Center Of Instrument Panel |
| HVAC Module | Mounted Under Right Side Of Instrument Panel |
| Passenger Compartment Air Filter | Under Right Side Cowl Cover |
| Receiver/Dehydrator | To Left Of Condenser Mounted In A Bracket Bolted To Core |
| Recirculation Actuator | Right Side Of HVAC Module |
| Refrigerant Low Temperature Sensor | Mounted On TXV Valve |
| Refrigerant Pressure Sensor | On A/C Hose, Near Compressor |
| Thermal Expansion Valve | On Evaporator Inlet And Outlet Pipes |
