Connector Identification

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

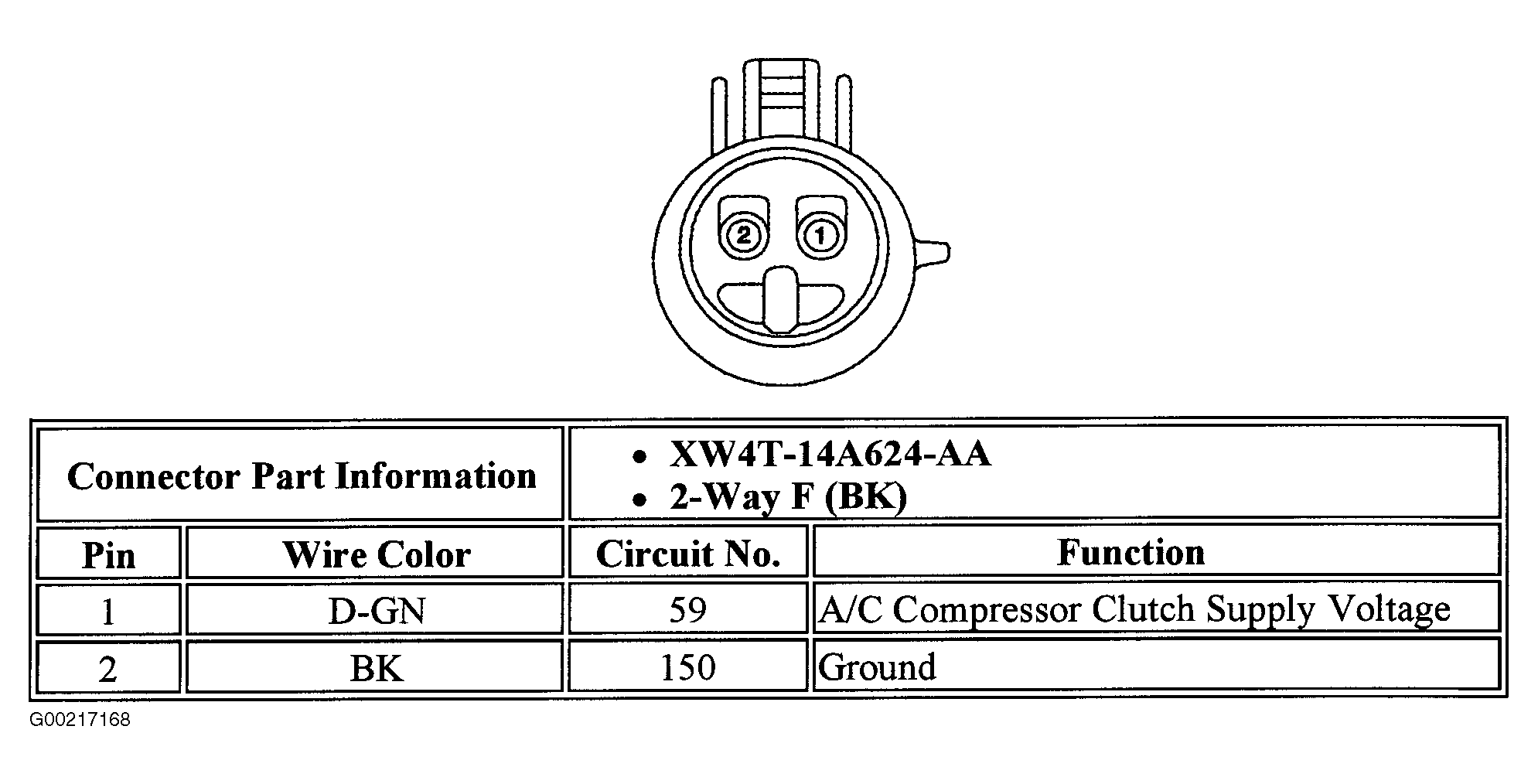

Fig 1: Identifying Compressor Clutch Harness Connector Terminals

G00217168

Courtesy of GENERAL MOTORS CORP.

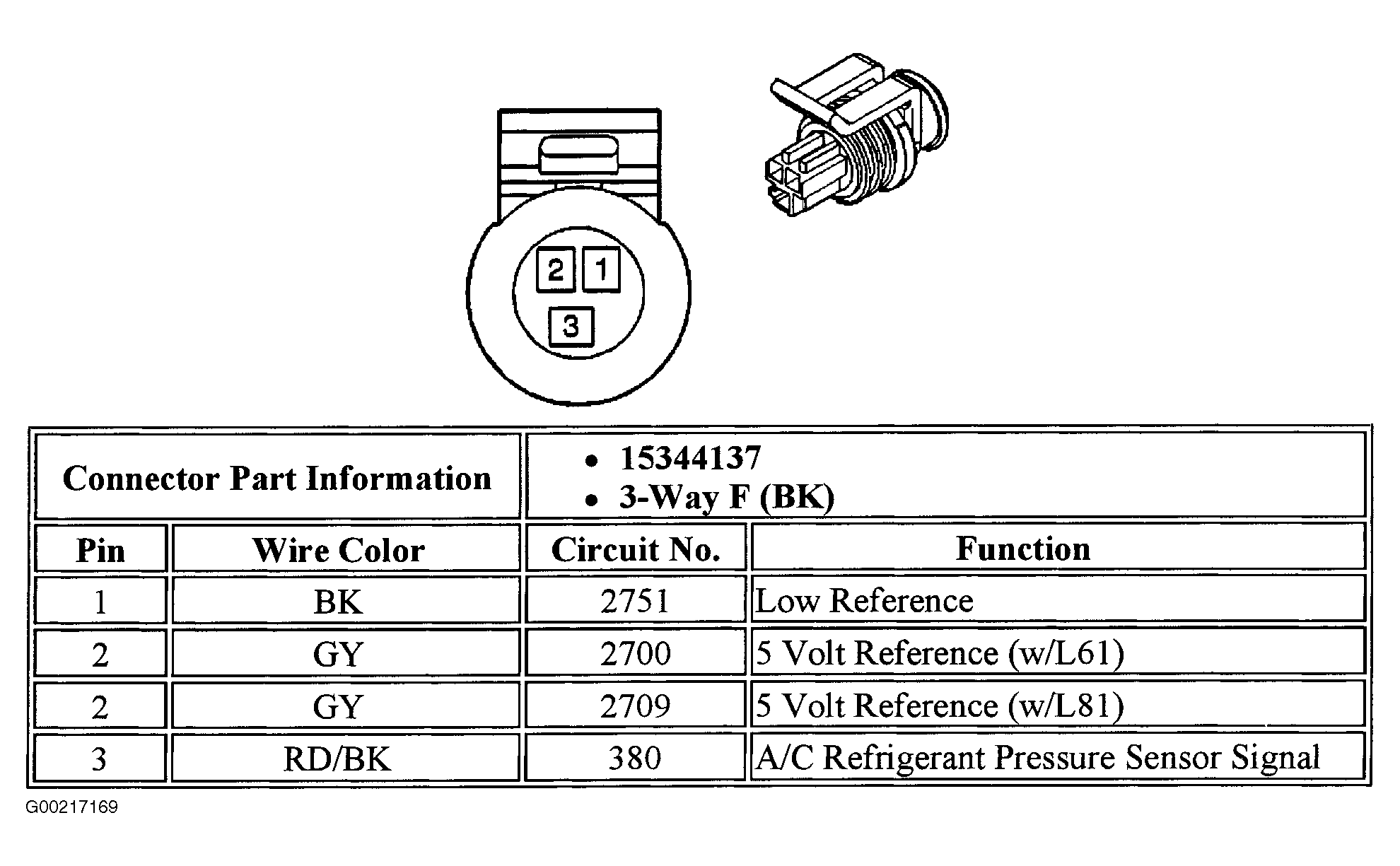

Fig 2: Identifying A/C Pressure Sensor Harness Connector Terminals

G00217169

Courtesy of GENERAL MOTORS CORP.

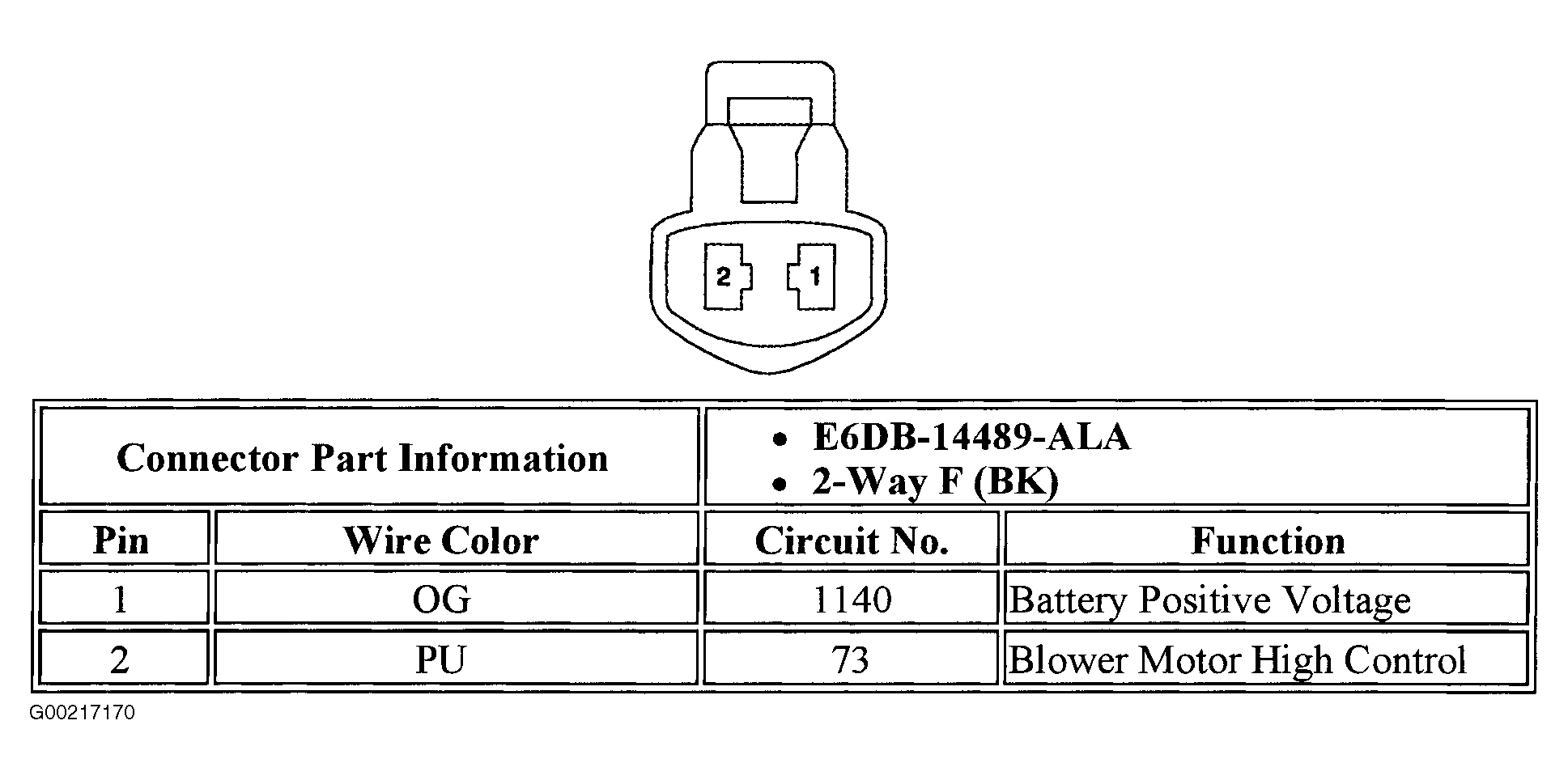

Fig 3: Identifying Blower Motor Harness Connector Terminals

G00217170

Courtesy of GENERAL MOTORS CORP.

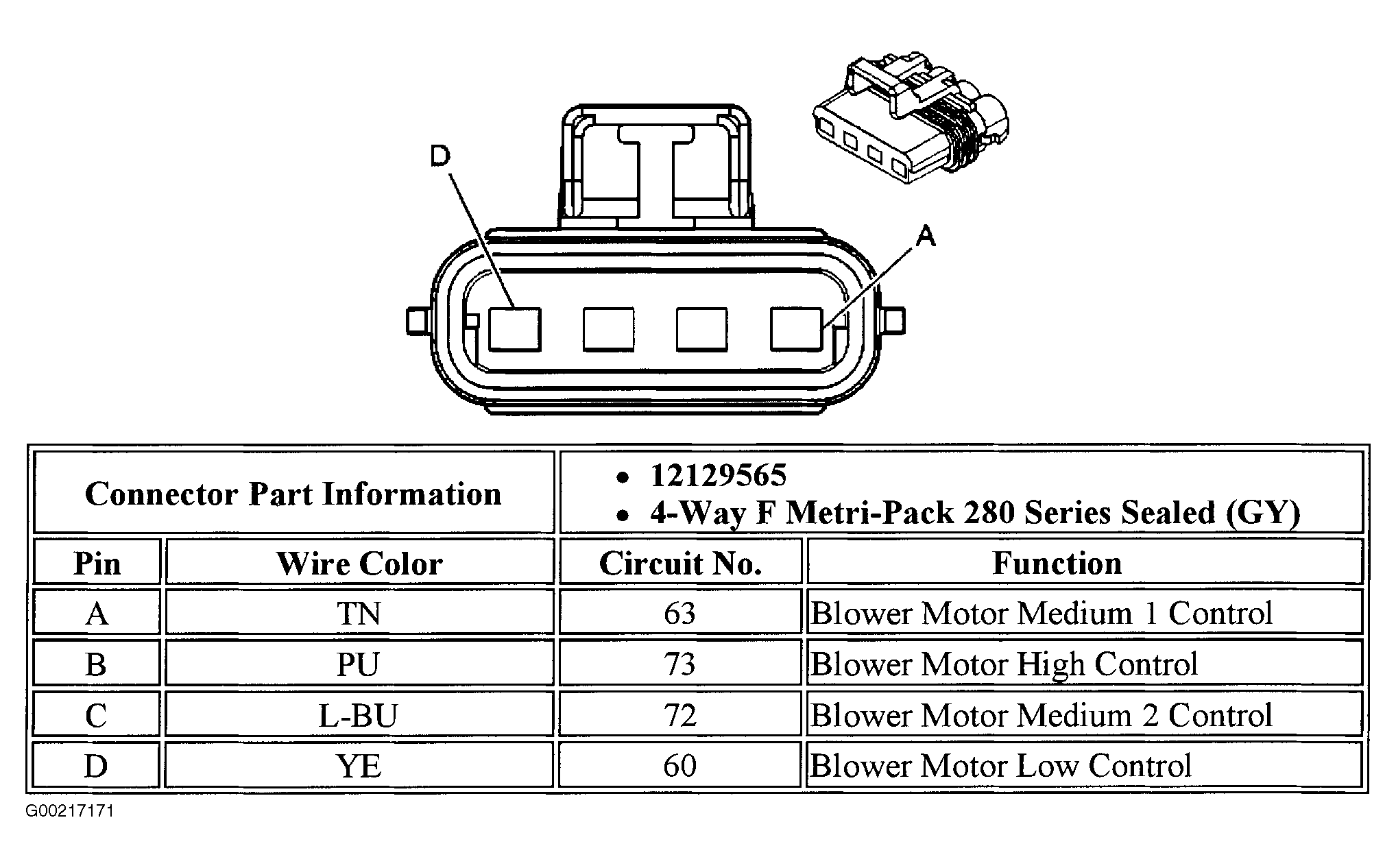

Fig 4: Identifying Blower Motor Resistor Harness Connector Terminals

G00217171

Courtesy of GENERAL MOTORS CORP.

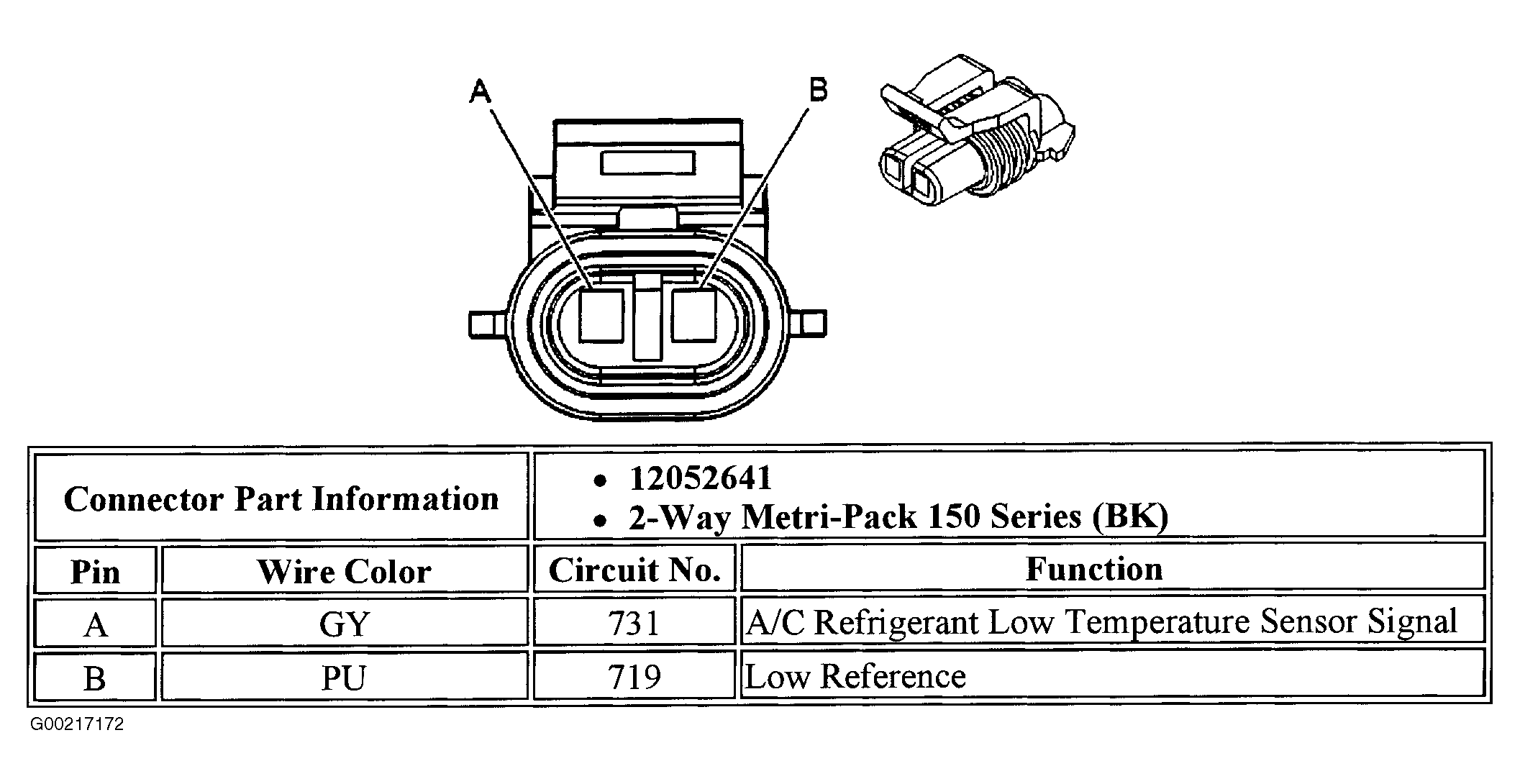

Fig 5: Identifying Refrigerant Low Temperature Sensor Harness Connector Terminals

G00217172

Courtesy of GENERAL MOTORS CORP.

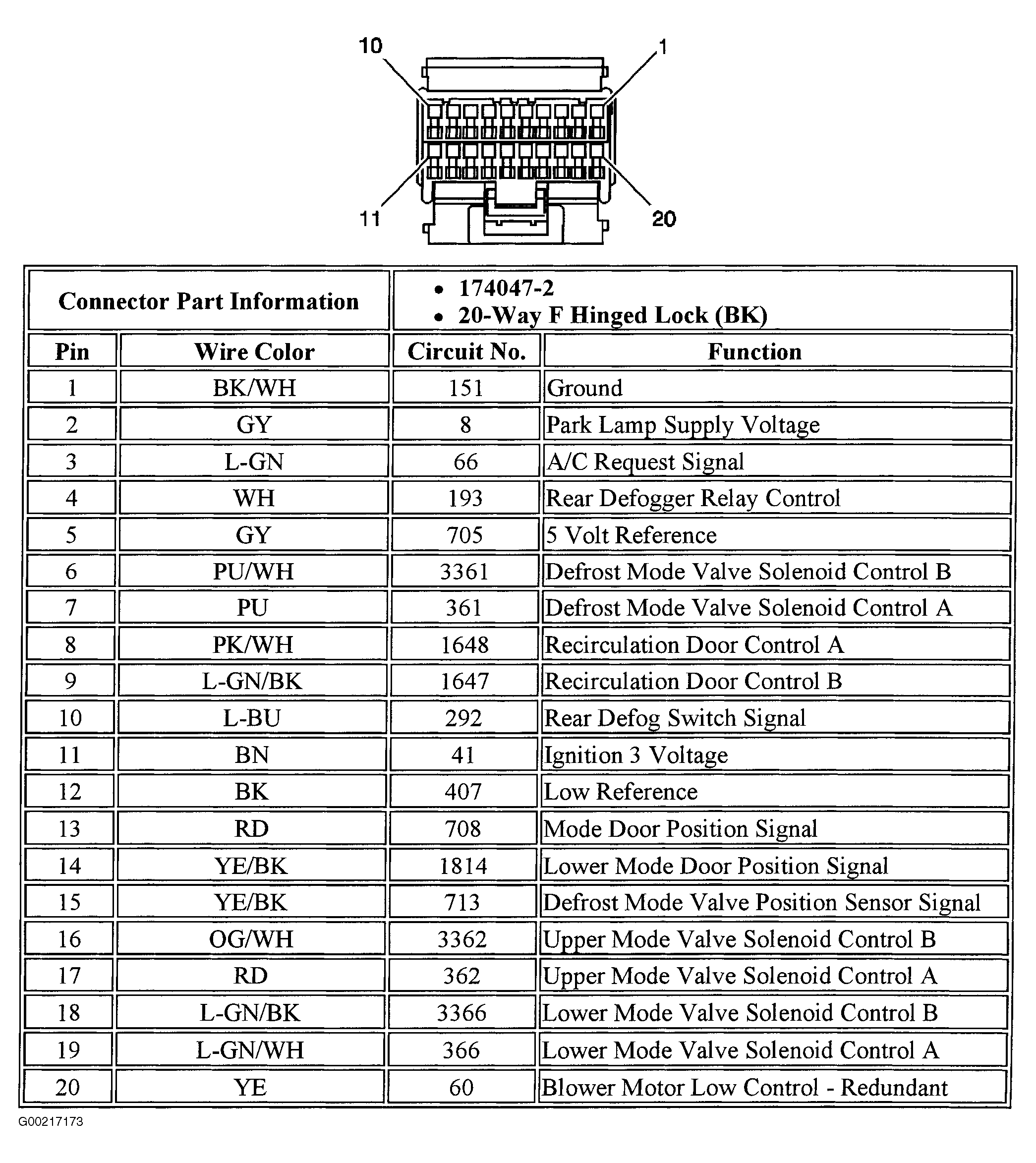

Fig 6: Identifying HVAC Control Harness Connector (C1) Terminals

G00217173

Courtesy of GENERAL MOTORS CORP.

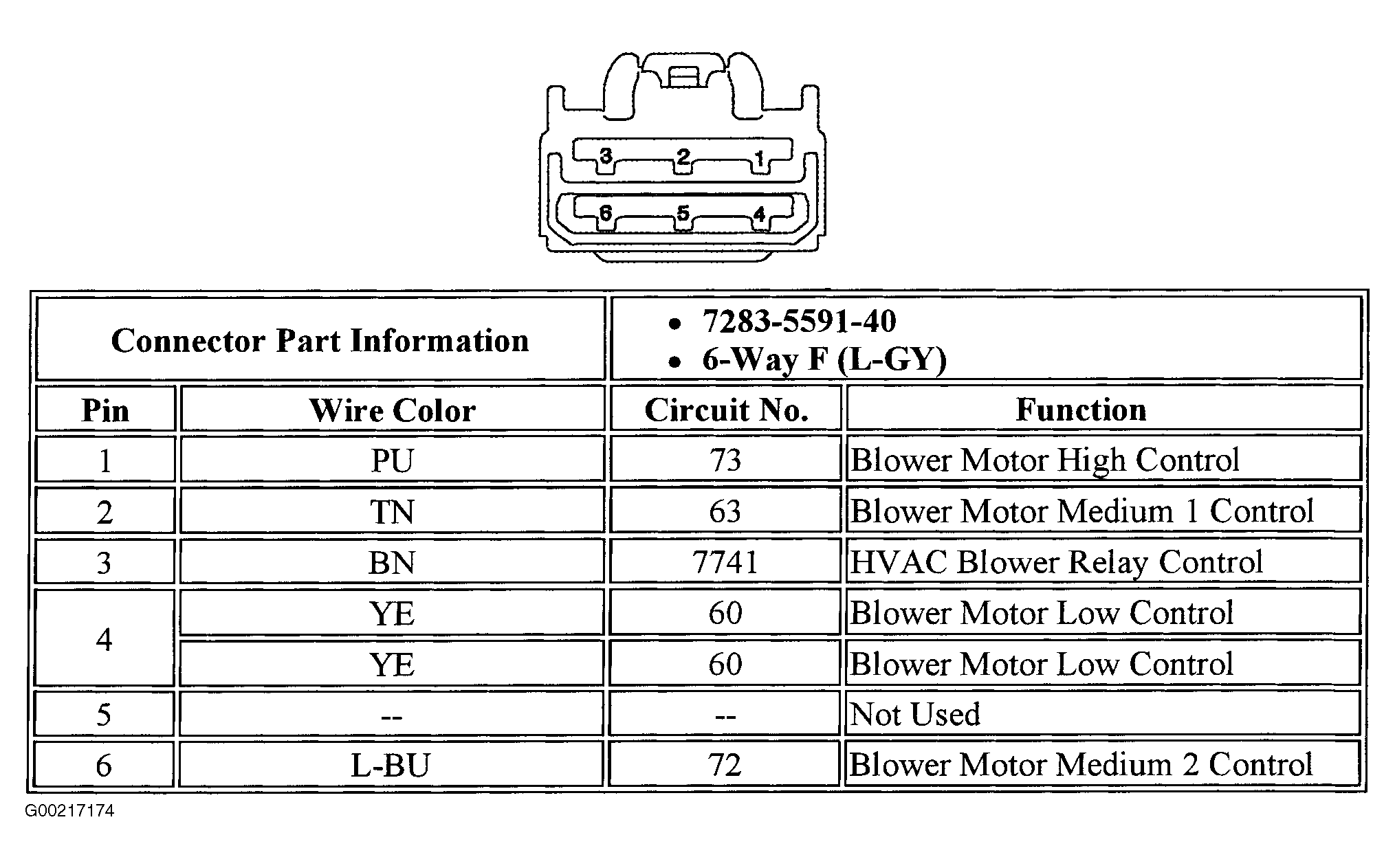

Fig 7: Identifying HVAC Control Harness Connector (C2) Terminals

G00217174

Courtesy of GENERAL MOTORS CORP.

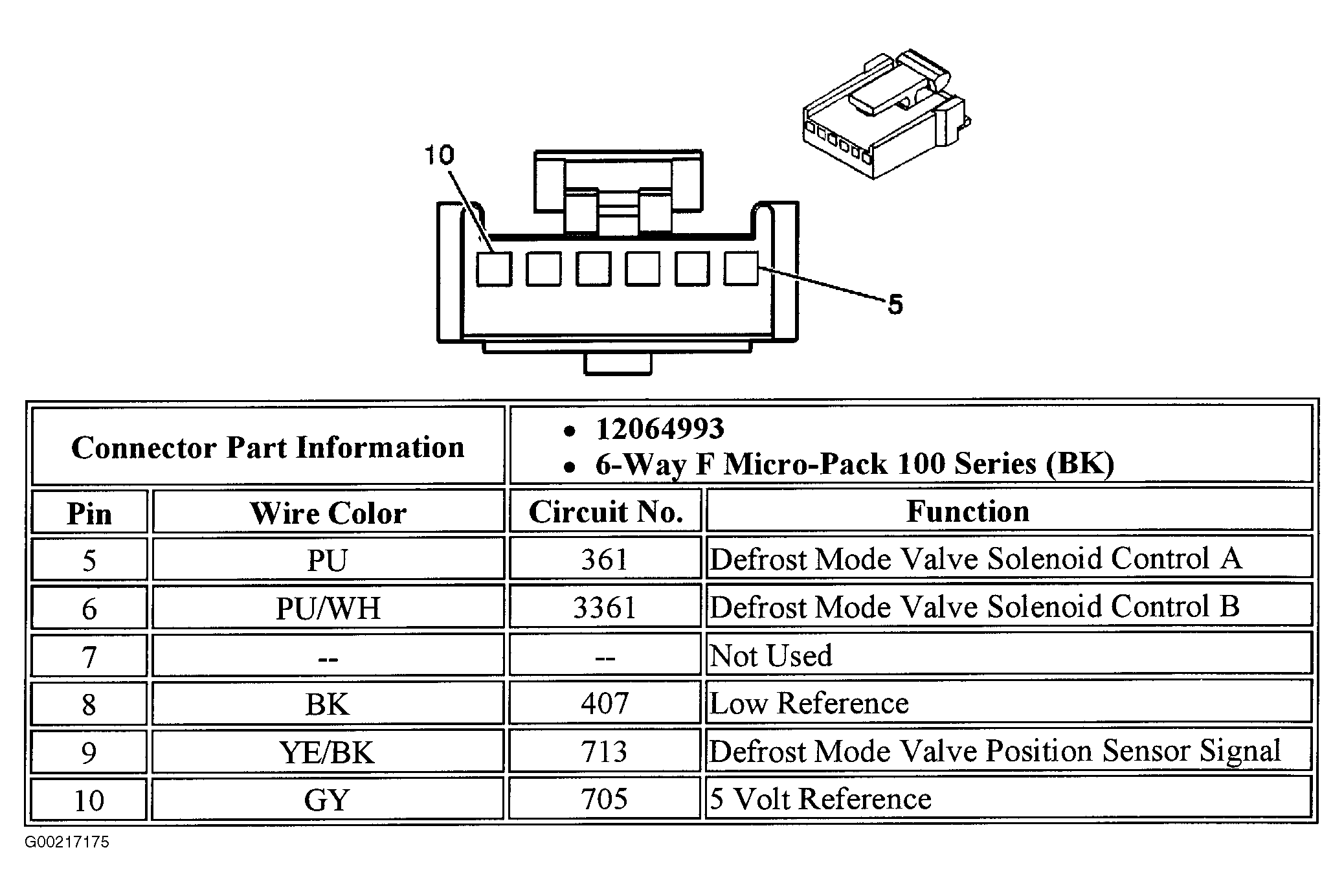

Fig 8: Identifying Defrost Mode Actuator Harness Connector Terminals

G00217175

Courtesy of GENERAL MOTORS CORP.

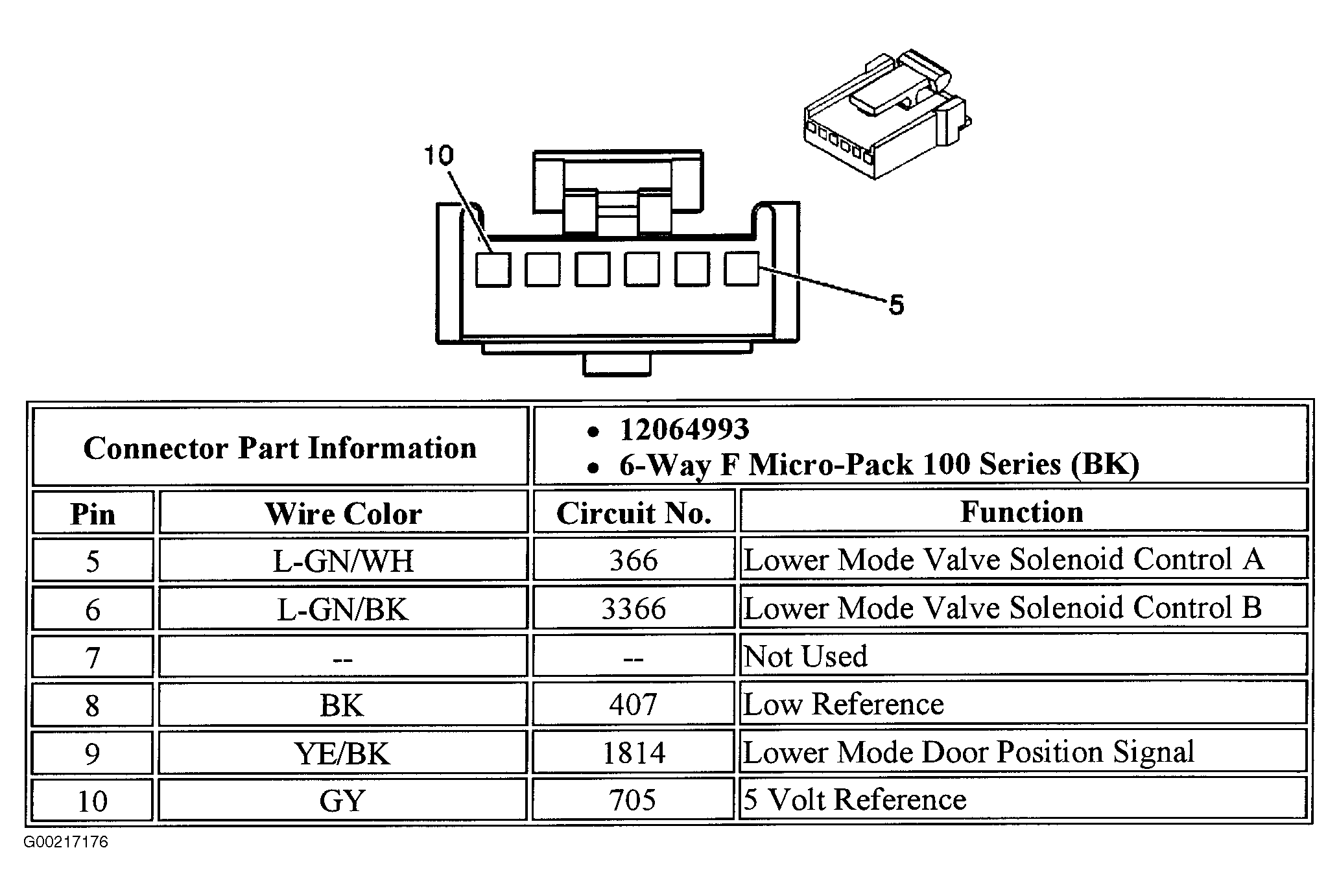

Fig 9: Identifying Floor Mode Actuator Harness Connector Terminals

G00217176

Courtesy of GENERAL MOTORS CORP.

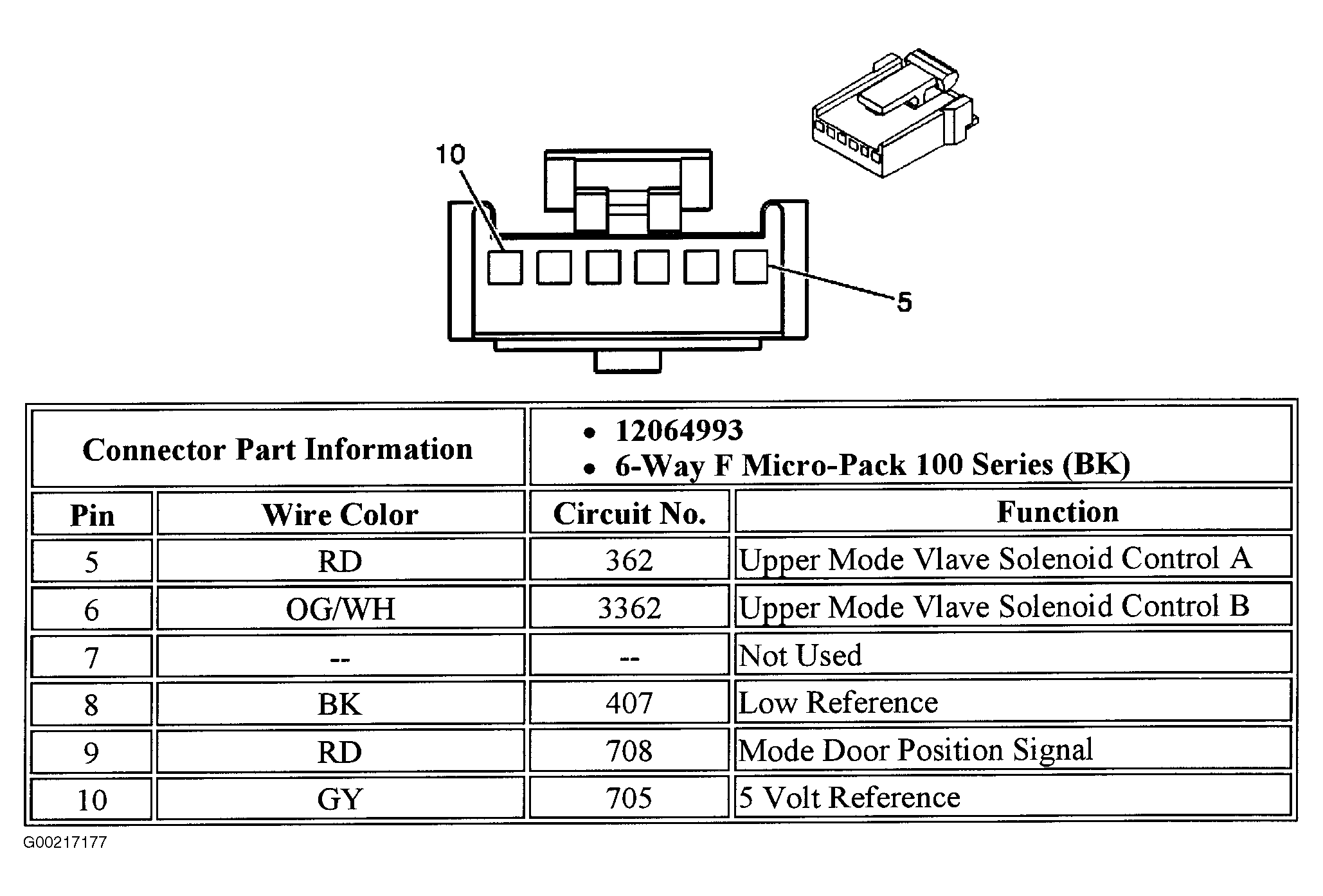

Fig 10: Identifying Panel Mode Actuator Harness Connector Terminals

G00217177

Courtesy of GENERAL MOTORS CORP.

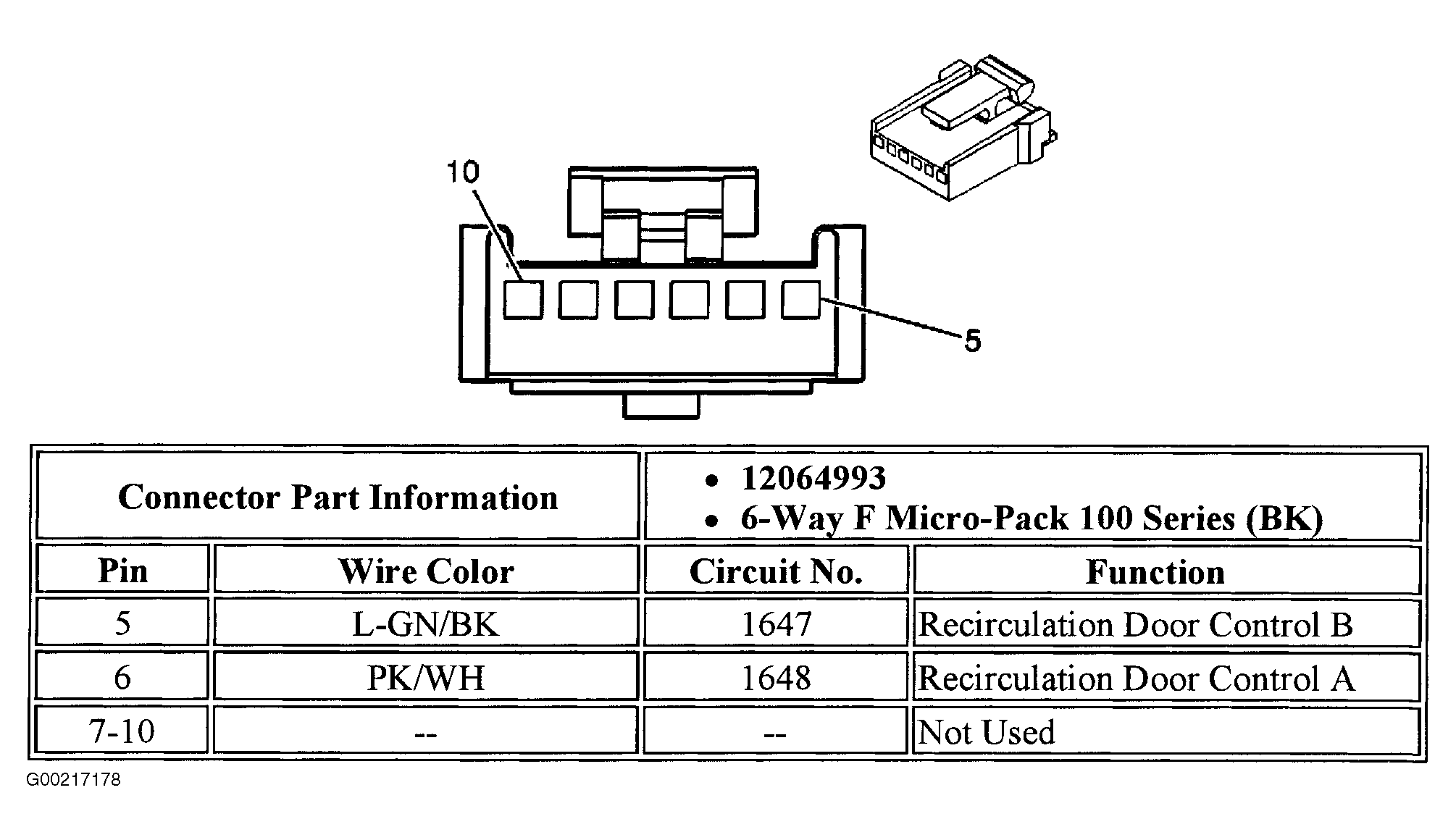

Fig 11: Identifying Recirculation Actuator Harness Connector Terminals

G00217178

Courtesy of GENERAL MOTORS CORP.
