COMPONENT LOCATIONS
| Component | Location |
|---|---|
| A/C Relay | Engine Compartment Relay Box |
| Auxiliary Blower Motor | Behind Panel, Right Rear Of Luggage Compartment |
| Auxiliary Blower Motor Relay | Behind Center Of Dash |
| Auxiliary Blower Motor Resistor | Behind Panel, Right Rear Of Luggage Compartment |
| Compressor Clutch Diode | In Right Front Of Engine Compartment |
| Compressor Clutch Solenoid | In Right Front Of Engine Compartment |
| Central Junction Box | Behind Left Side Of Dash |
| Compressor Cycling Switch | On Right Side Of Engine Compartment |
| Dual Pressure Cut-Out Switch | In Right Front Of Engine Compartment |

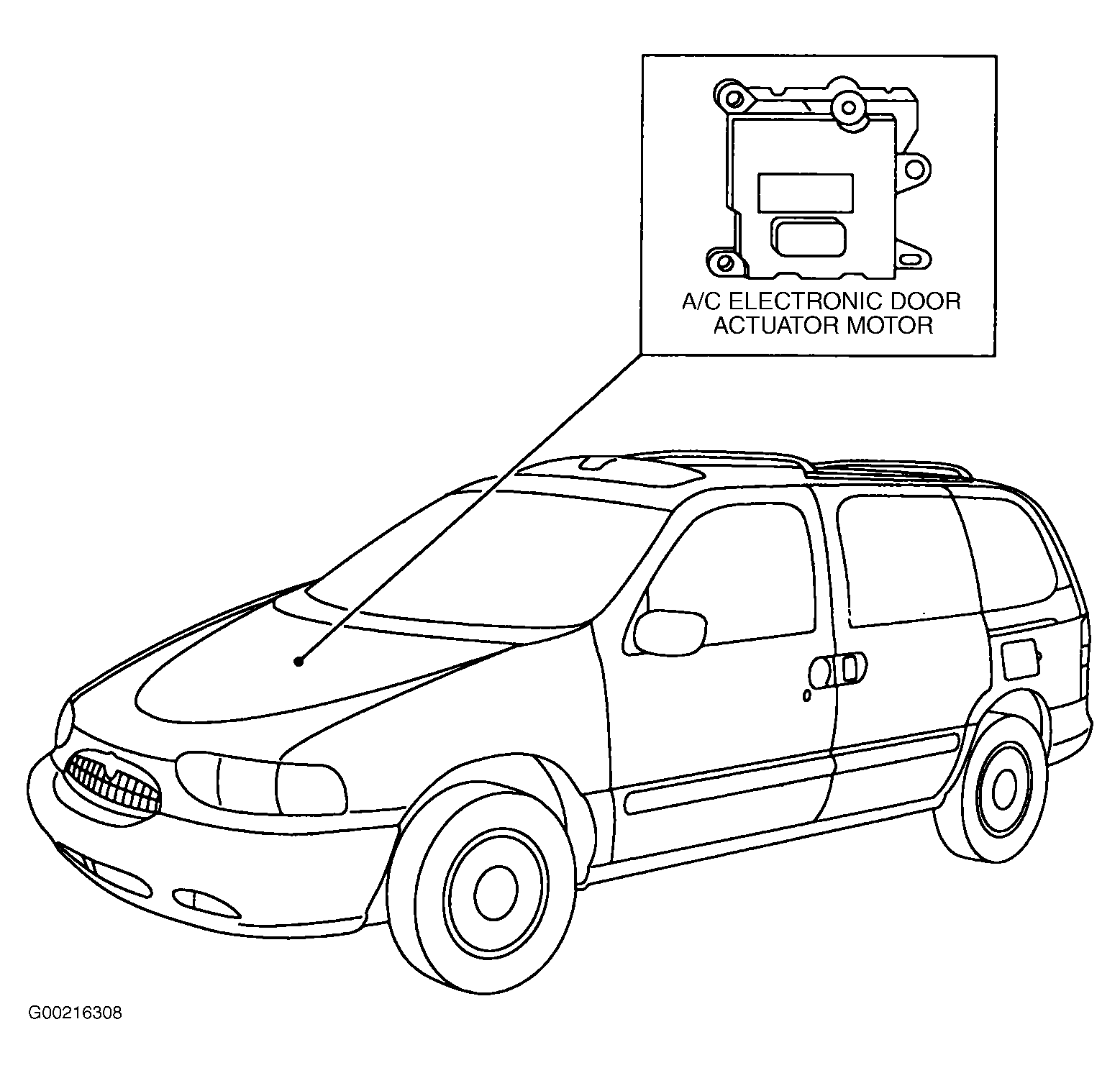

| Fresh/Recirculation Door Actuator | Behind Right Side Of Dash, On A/C Heater Plenum |
| Main Blower Motor | Central Junction Box |

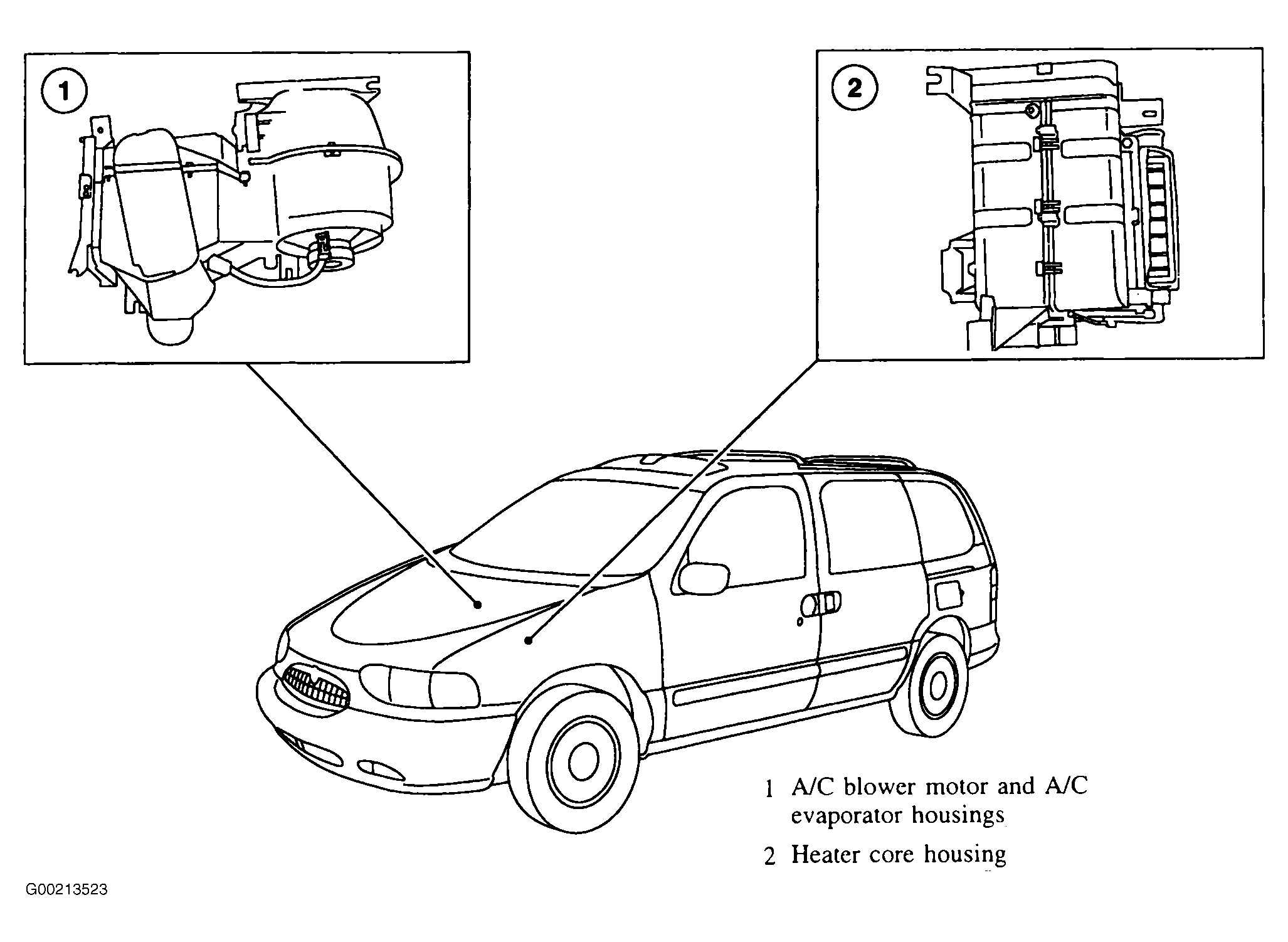

| Main Blower Motor Resistor | Behind Right Side Of Dash, In A/C Heater Plenum |
| Powertrain Control Module | Behind Right Side Of Dash, Behind Glove Box |
| Temperature Door Variable Resistor | Behind Center Of Dash |
| Engine Compartment Relay Box | On Left Front Of Engine Compartment |
