Multifunction Switch: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Twist the tilt wheel handle and shank (3F609) counterclockwise and remove.

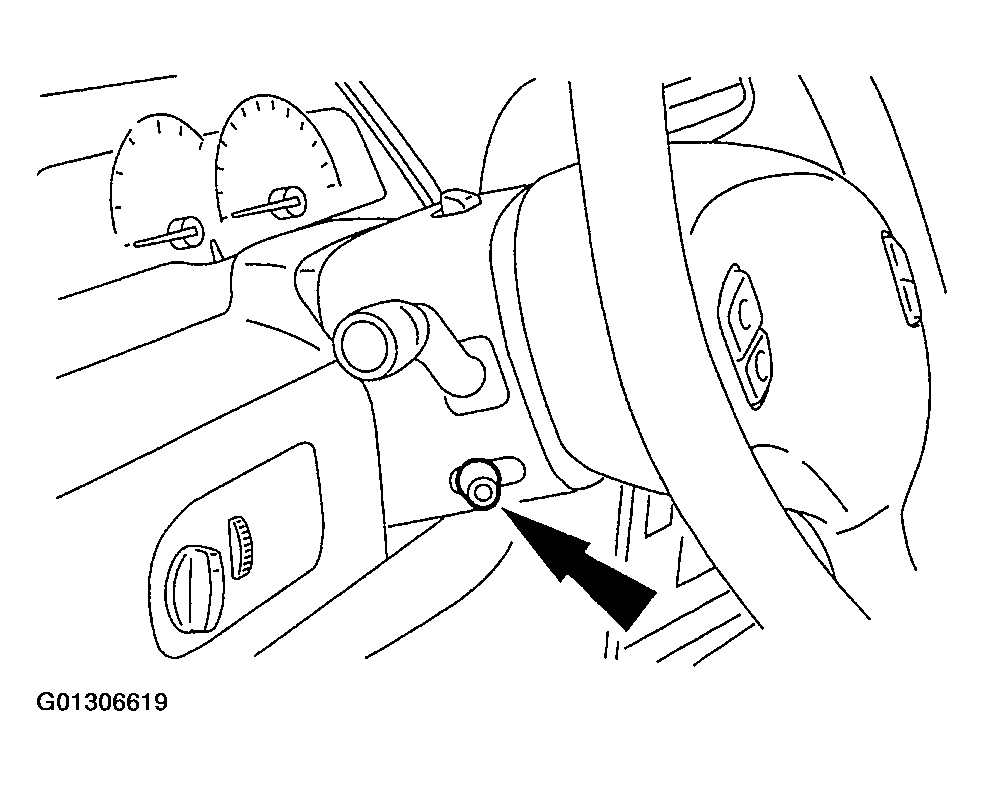

    Fig 1: Removing Tilt Wheel Handle And Shank
    G01306619Courtesy of FORD MOTOR CO.
  3. Remove the upper and lower steering column shrouds.
    1. Remove the screws.
    2. Remove the upper and lower steering column shrouds.
      Fig 2: Removing Screws
      G01306620Courtesy of FORD MOTOR CO.
  4. Remove the multifunction switch.
    1. Remove the screws.
    2. Disconnect the electrical connectors.
    3. Remove the multifunction switch.

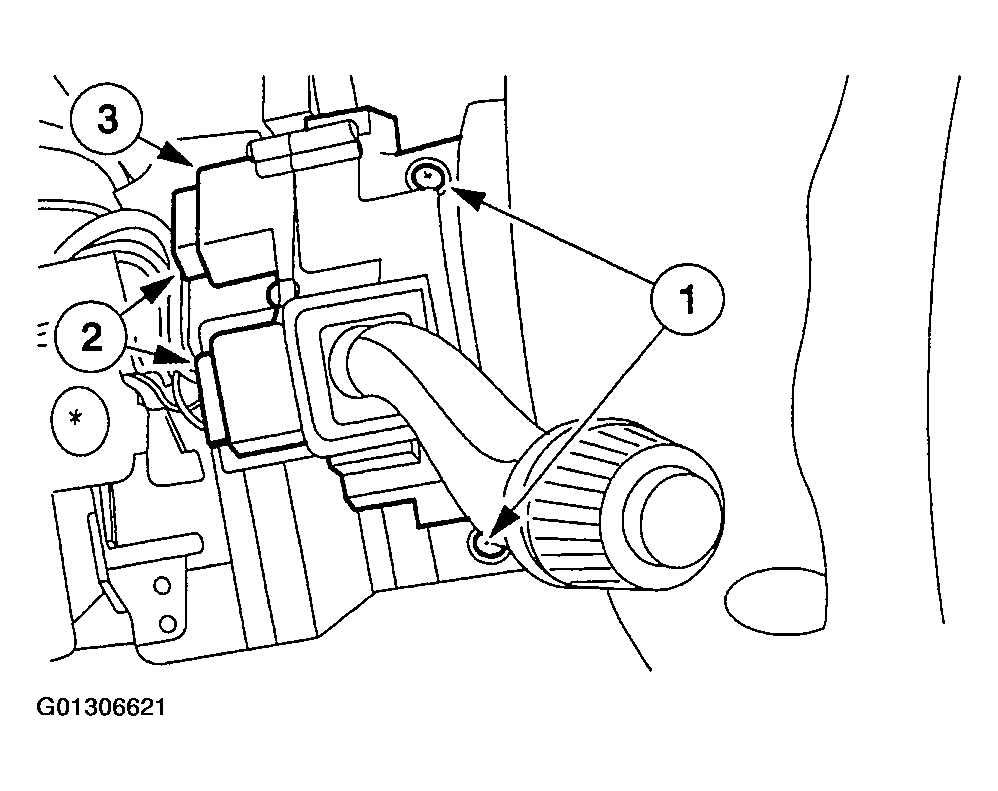

      Fig 3: Removing Multifunction Switch
      G01306621Courtesy of FORD MOTOR CO.
