Stoplamp Switch: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

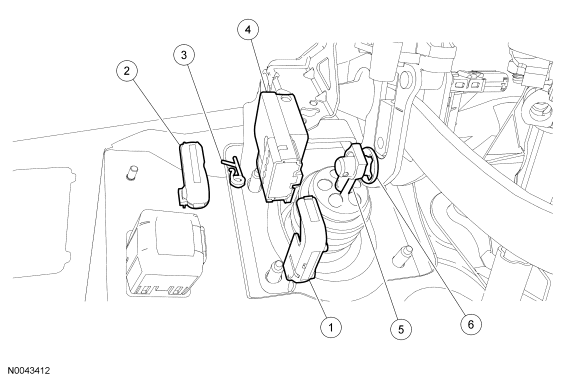

Fig 1: Identifying Stoplamp Switch Components
GF0014605Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Stoplamp switch electrical connector (part of 14A005)
2 2975 Self-locking pin cover
3 380699 Self-locking pin
4 13480 Stoplamp switch
5 - Brake booster push rod (part of 2005)
6 2B219 Bushing
