Special Tool(s)

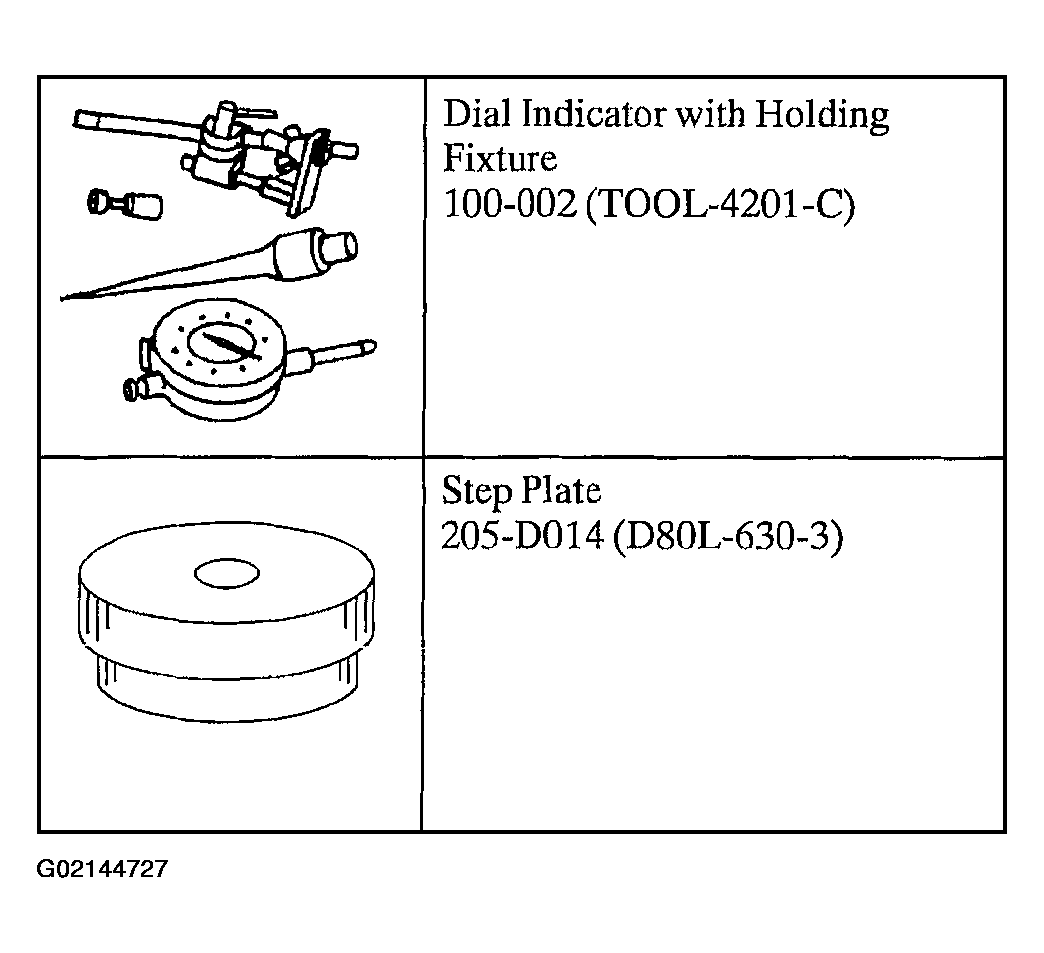

Fig 1: Identifying Special Tool (1 Of 6)

G02144727

Courtesy of FORD MOTOR CO.

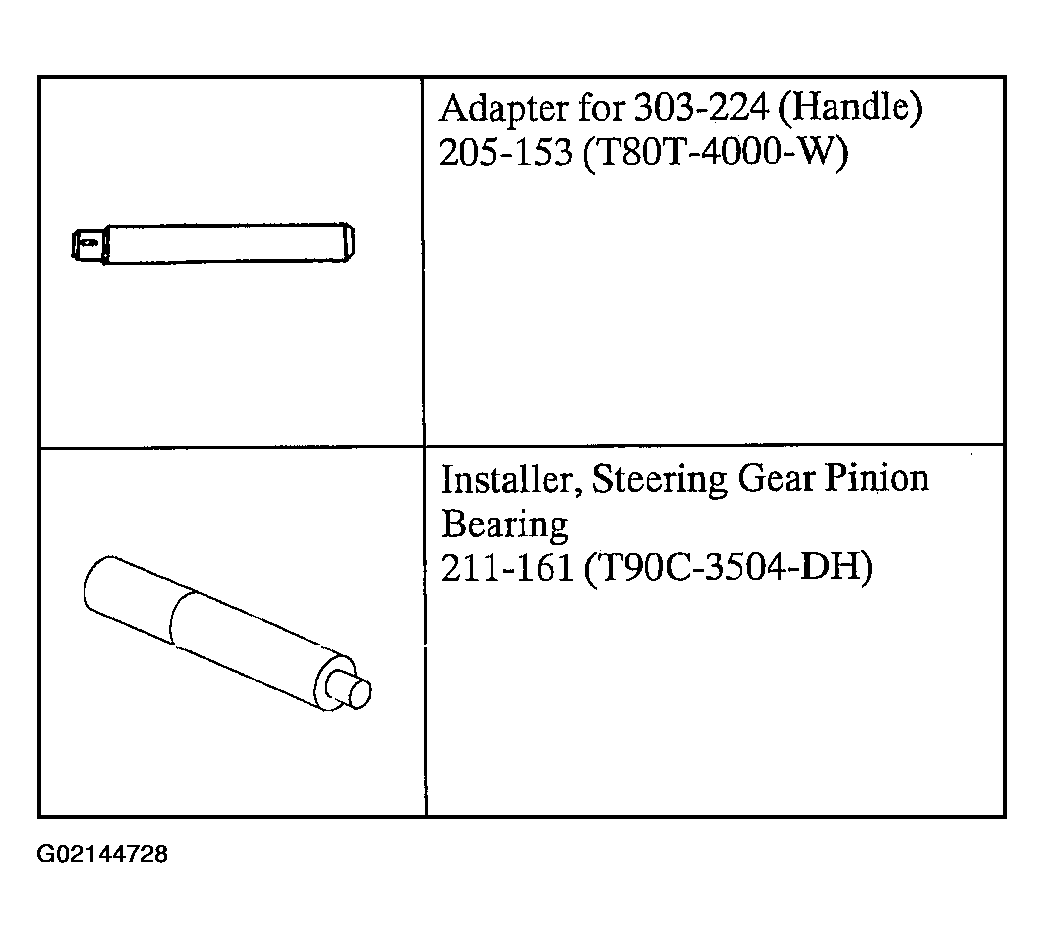

Fig 2: Identifying Special Tool (2 Of 6)

G02144728

Courtesy of FORD MOTOR CO.

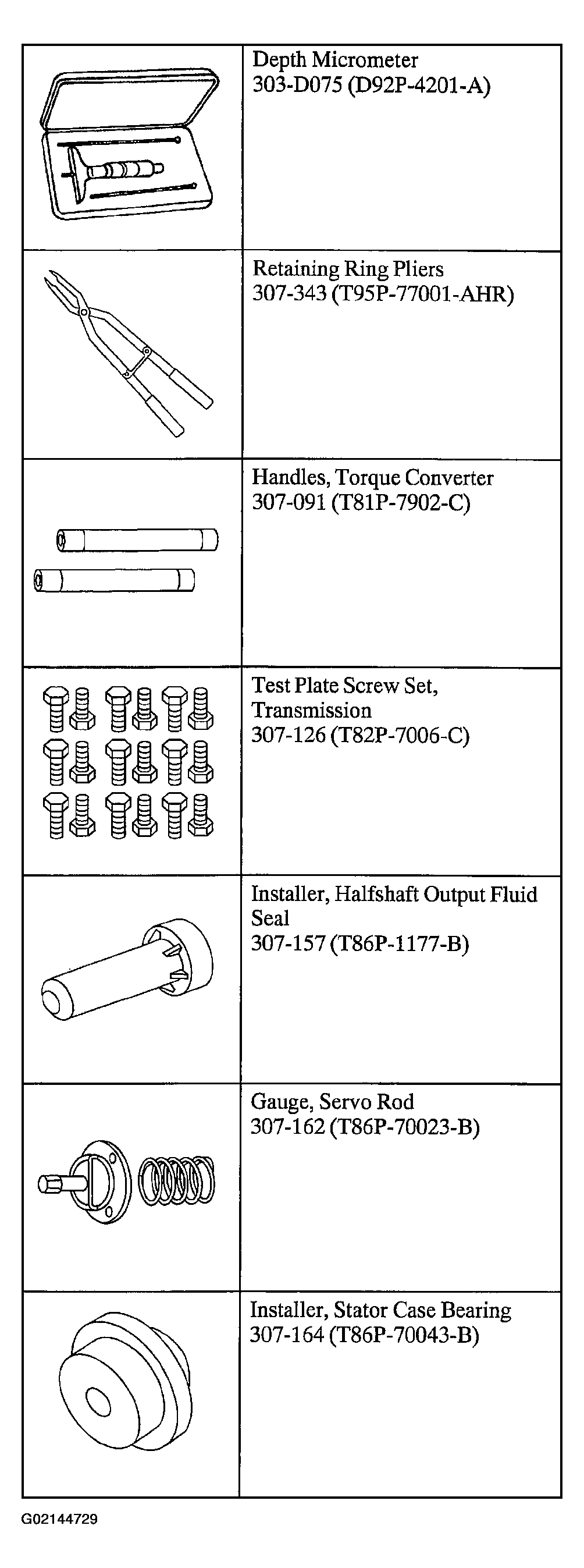

Fig 3: Identifying Special Tool (3 Of 6)

G02144729

Courtesy of FORD MOTOR CO.

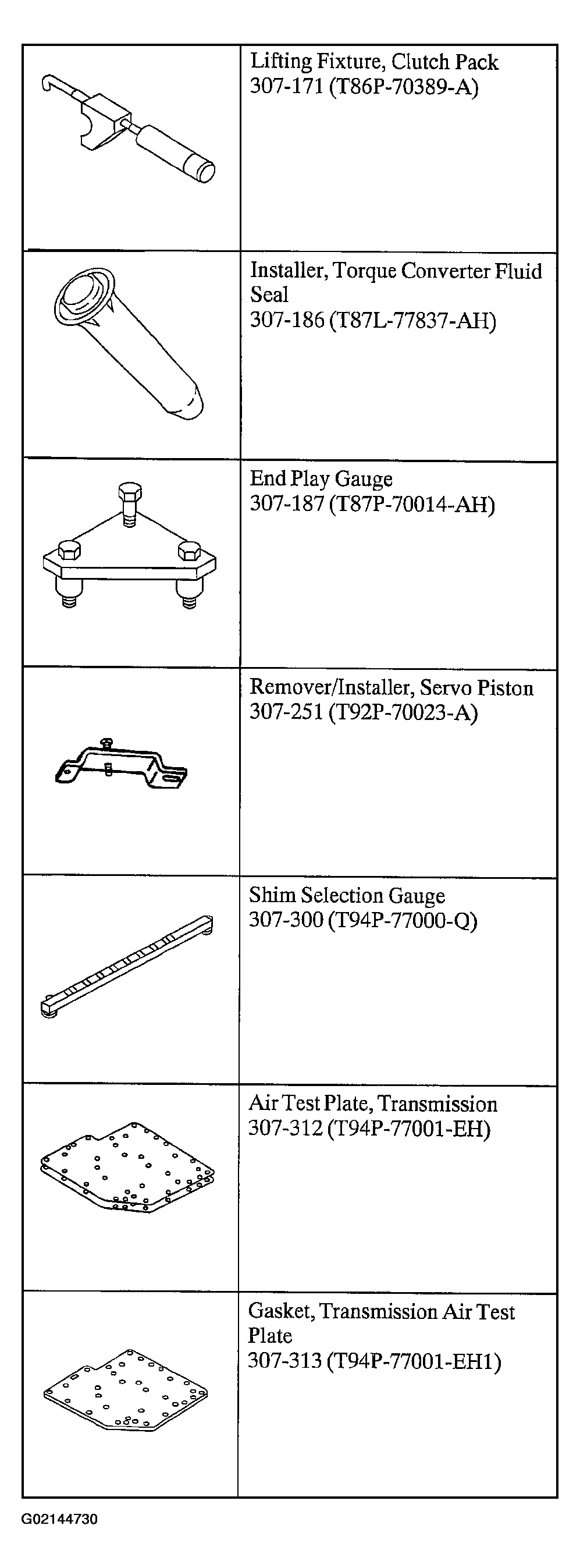

Fig 4: Identifying Special Tool (4 Of 6)

G02144730

Courtesy of FORD MOTOR CO.

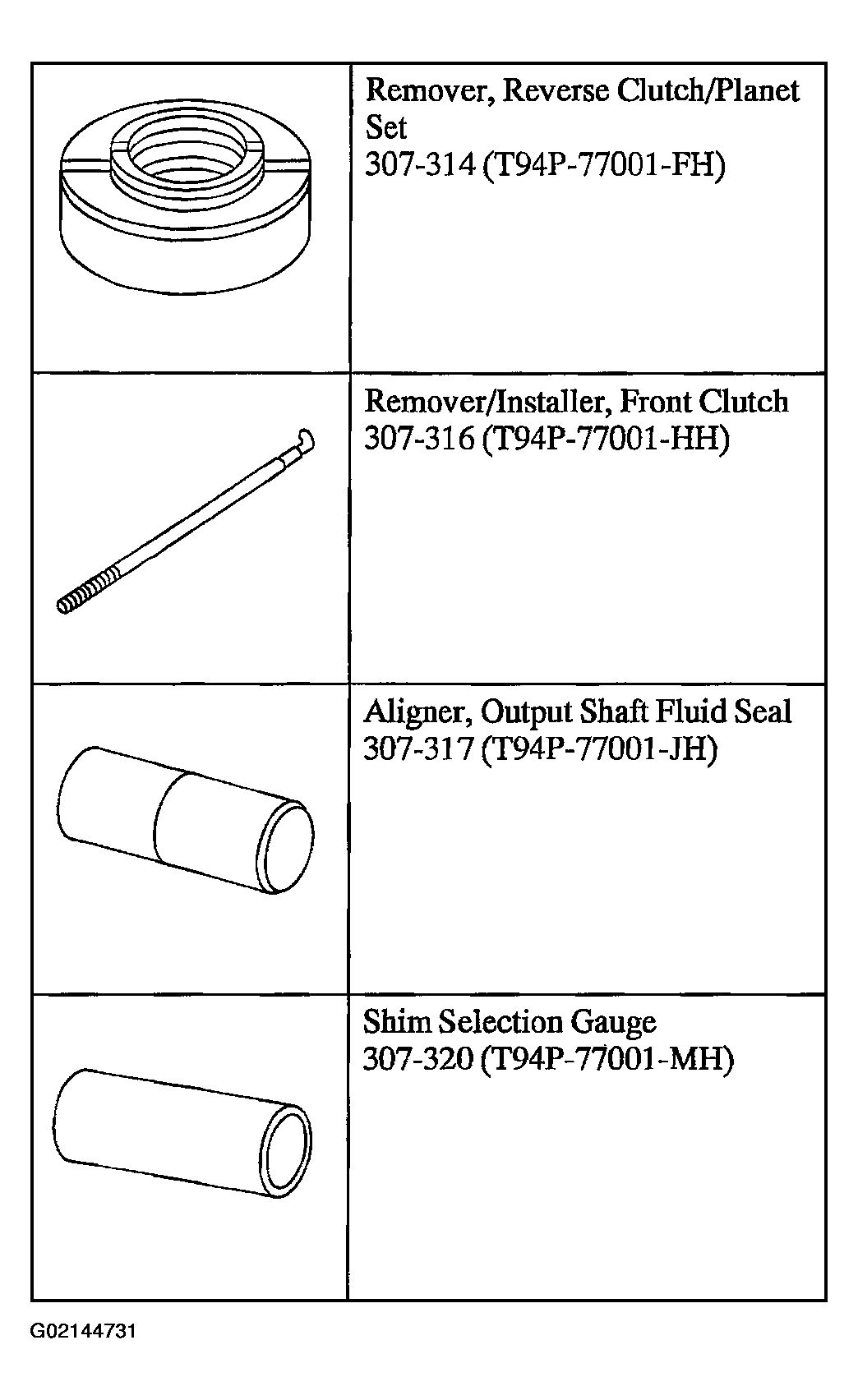

Fig 5: Identifying Special Tool (5 Of 6)

G02144731

Courtesy of FORD MOTOR CO.

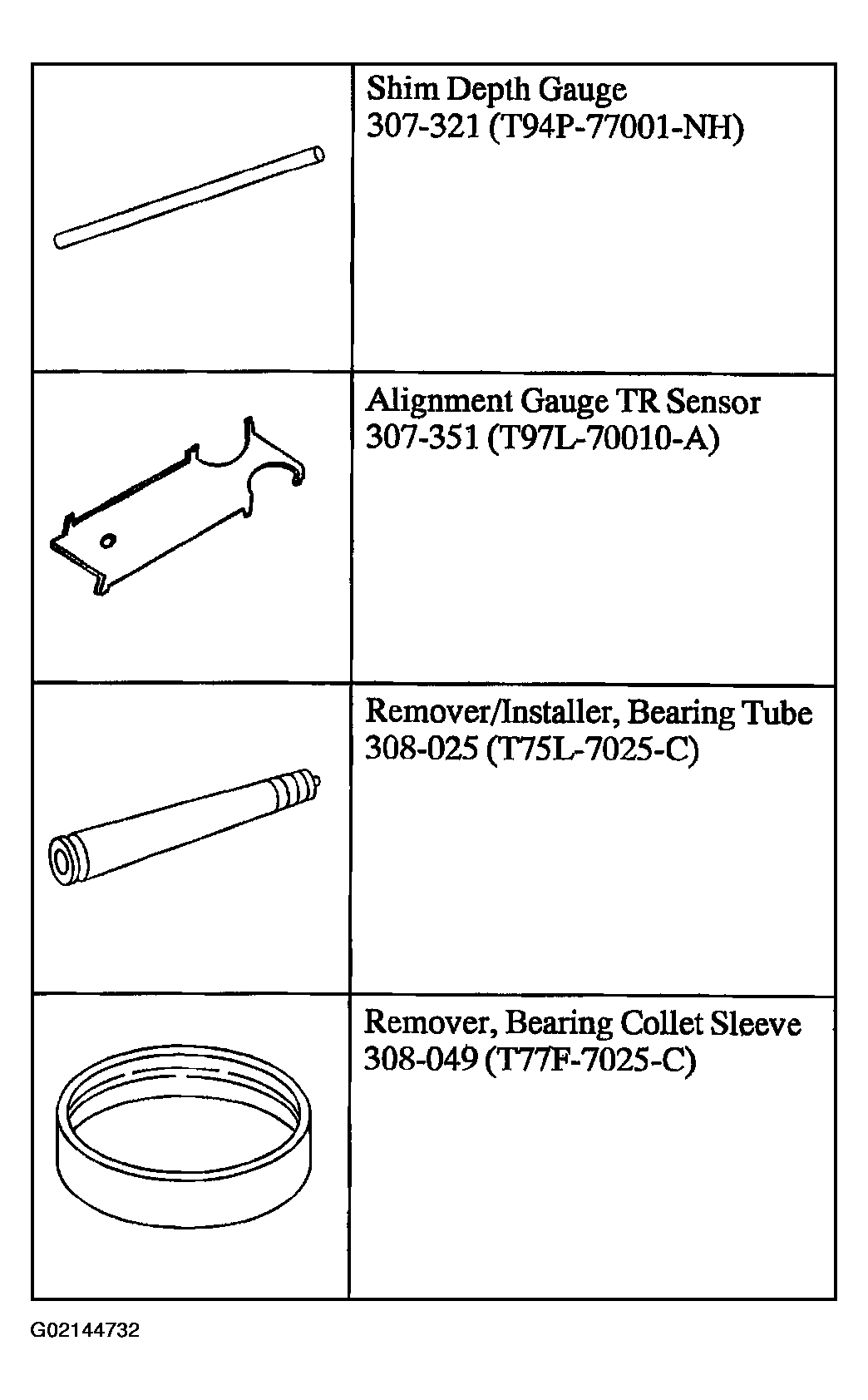

Fig 6: Identifying Special Tool (6 Of 6)

G02144732

Courtesy of FORD MOTOR CO.
