Drive Sprocket/Turbine Shaft: Disassembly

Remove the drive sprocket/turbine shaft seal and O-ring.
- Remove the drive sprocket/turbine shaft O-ring.
- Remove the drive sprocket/turbine shaft seal.

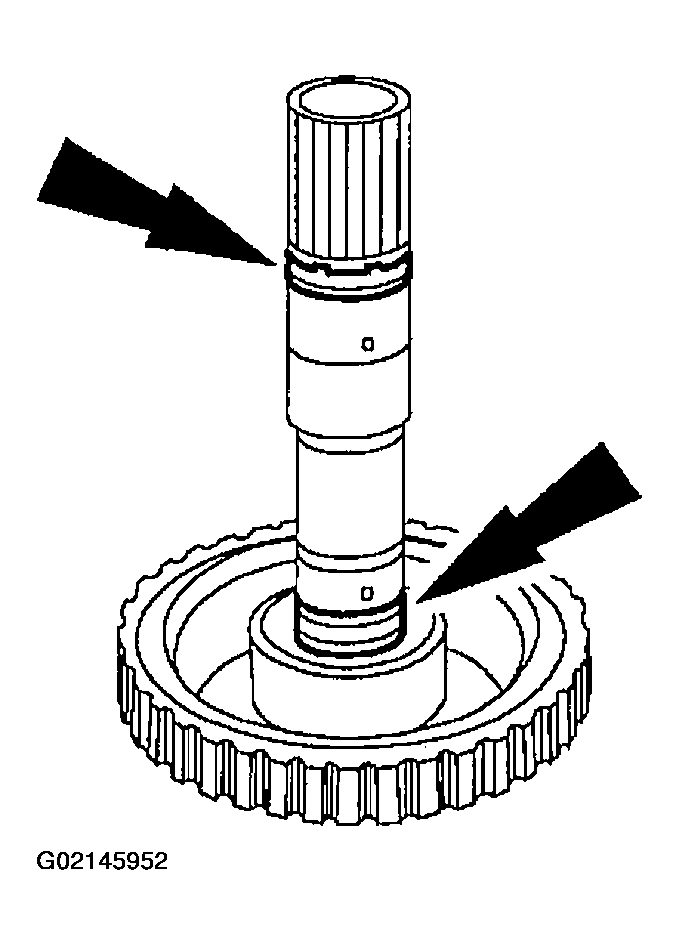

Fig 1: Removing Drive Sprocket/Turbine Shaft Seal And O-Ring
Courtesy of FORD MOTOR CO.
Inspect the bearing race for wear. If the bearing is worn a new drive sprocket/turbine shaft will need to be installed.

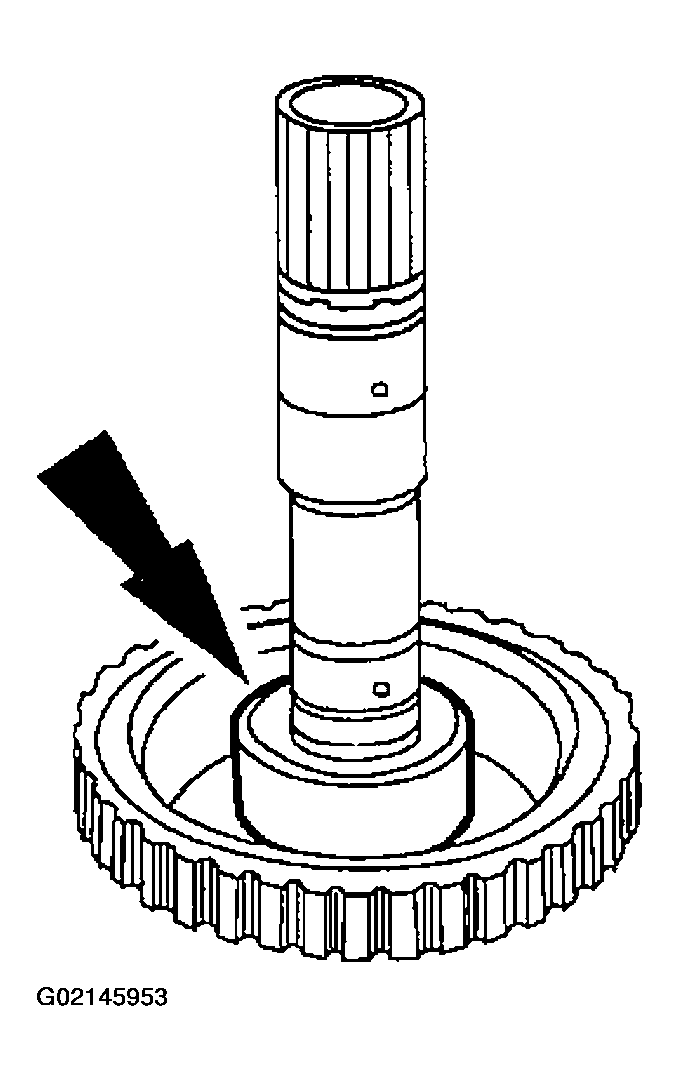

Fig 2: Inspecting Bearing Race
Courtesy of FORD MOTOR CO.
Remove the turbine shaft front seal.

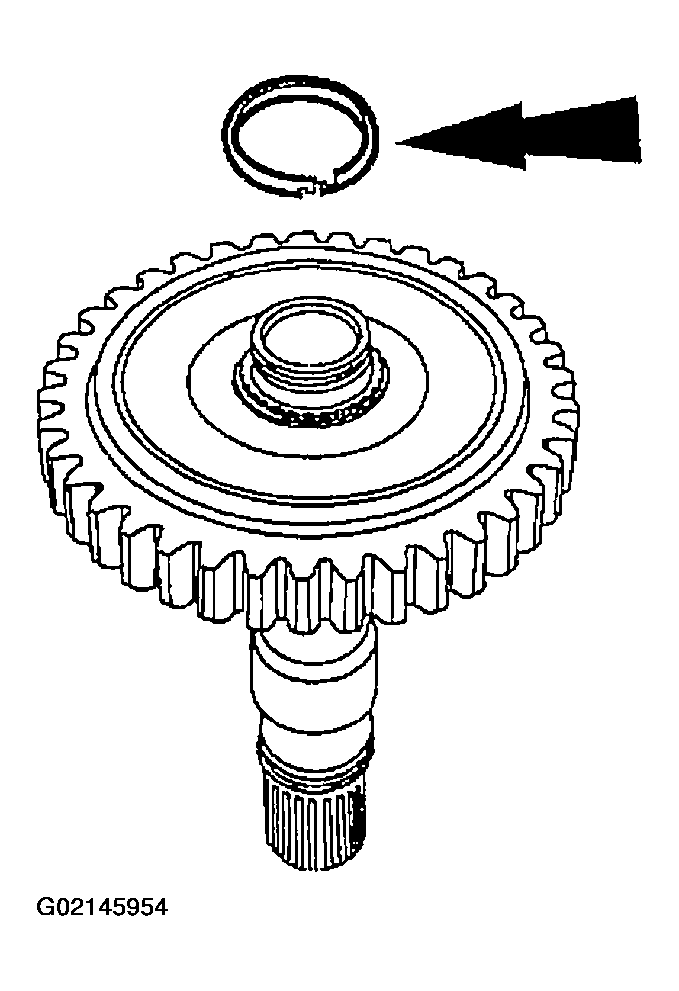

Fig 3: Removing Turbine Shaft Front Seal
Courtesy of FORD MOTOR CO.
