Final Drive: Notes

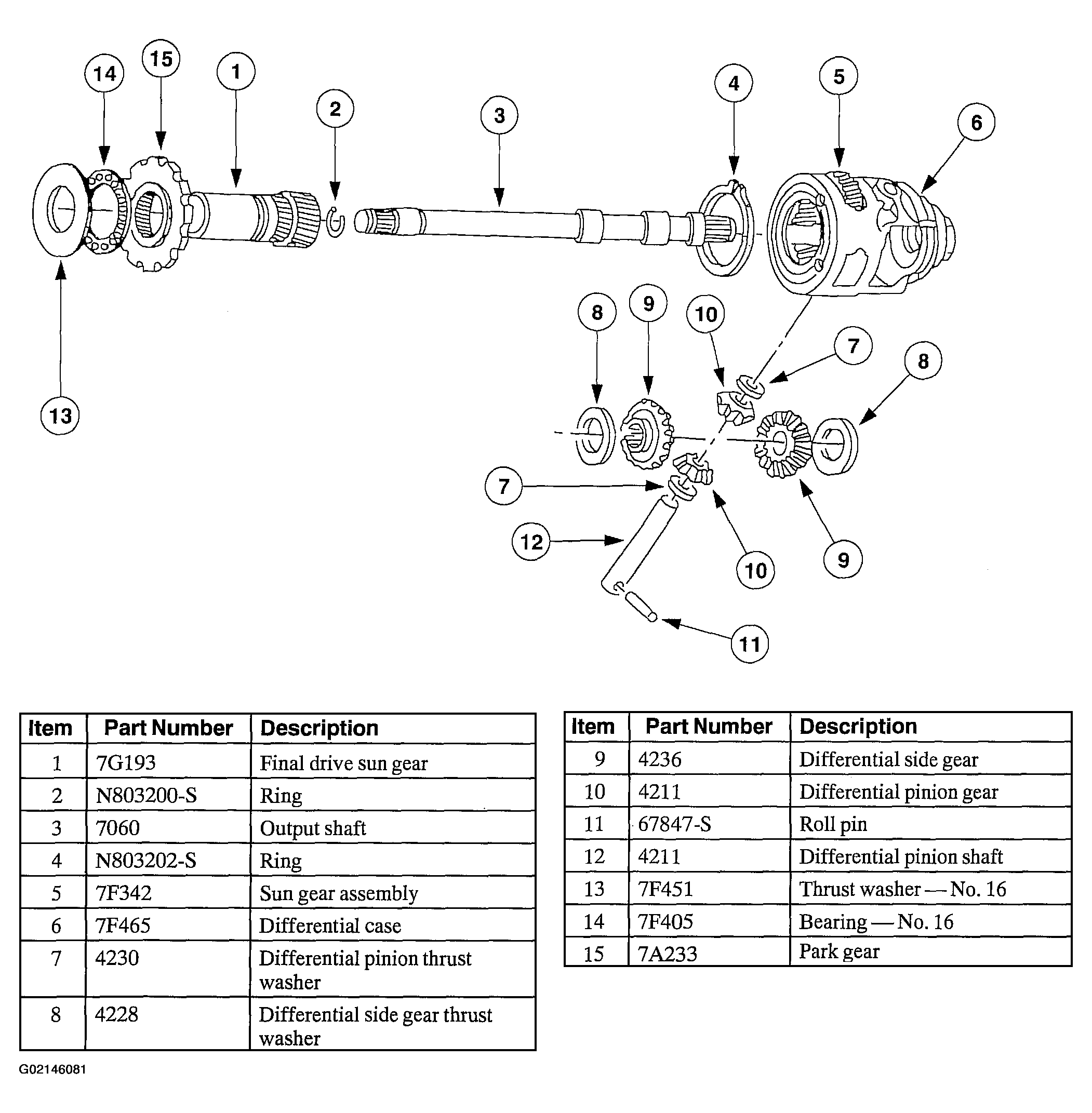

Fig 1: Exploded View Of Final Drive Components And Description Chart
G02146081Courtesy of FORD MOTOR CO.
