Special Tool(s)

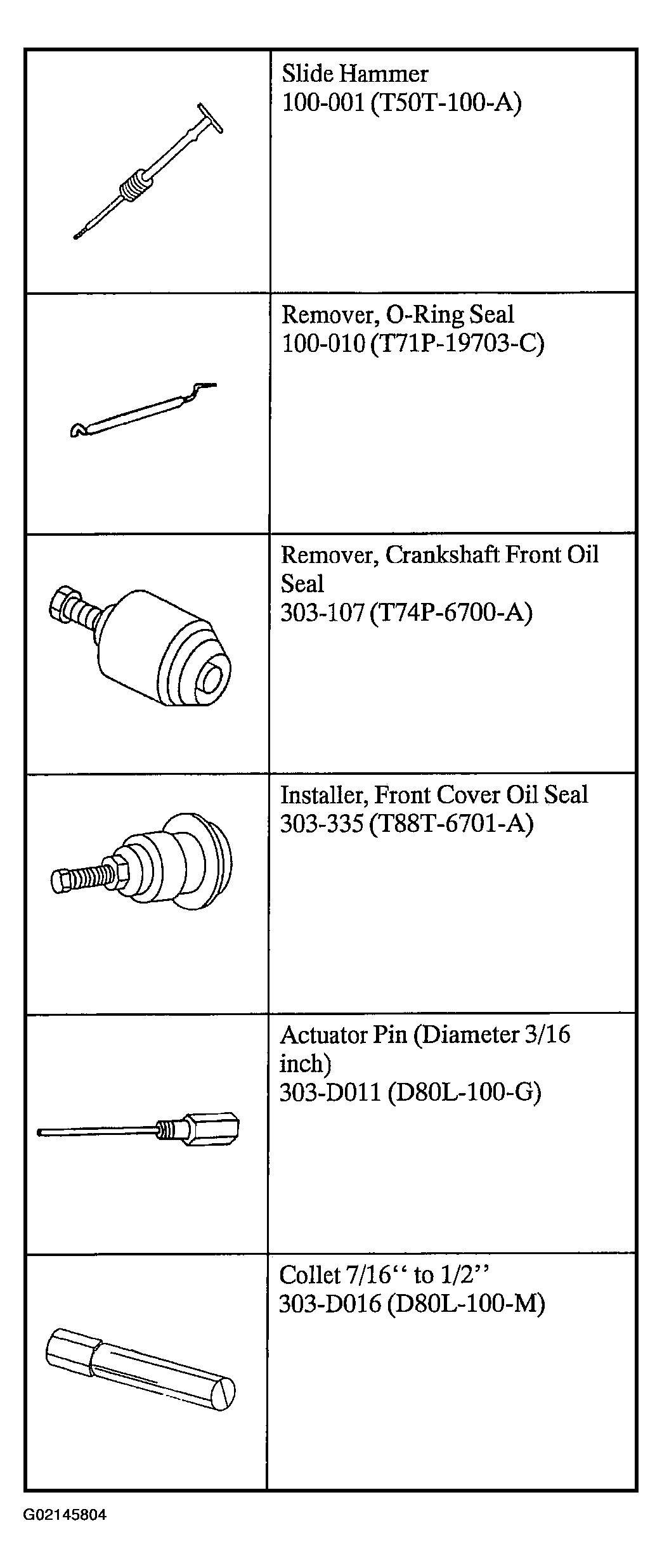

Fig 1: Identifying Special Tools (1 Of 4)
G02145804Courtesy of FORD MOTOR CO.

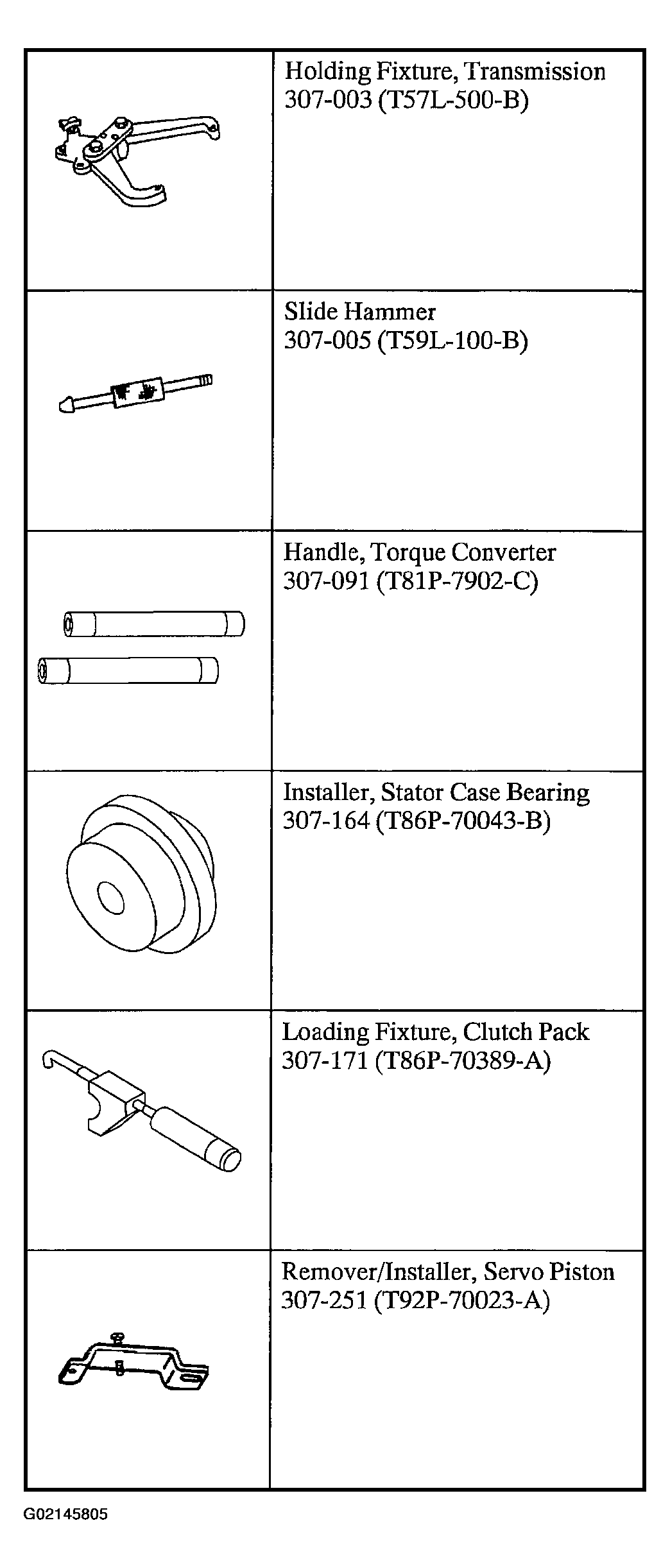

Fig 2: Identifying Special Tools (2 Of 4)
G02145805Courtesy of FORD MOTOR CO.
Fig 3: Identifying Special Tools (3 Of 4)
G02145806Courtesy of FORD MOTOR CO.

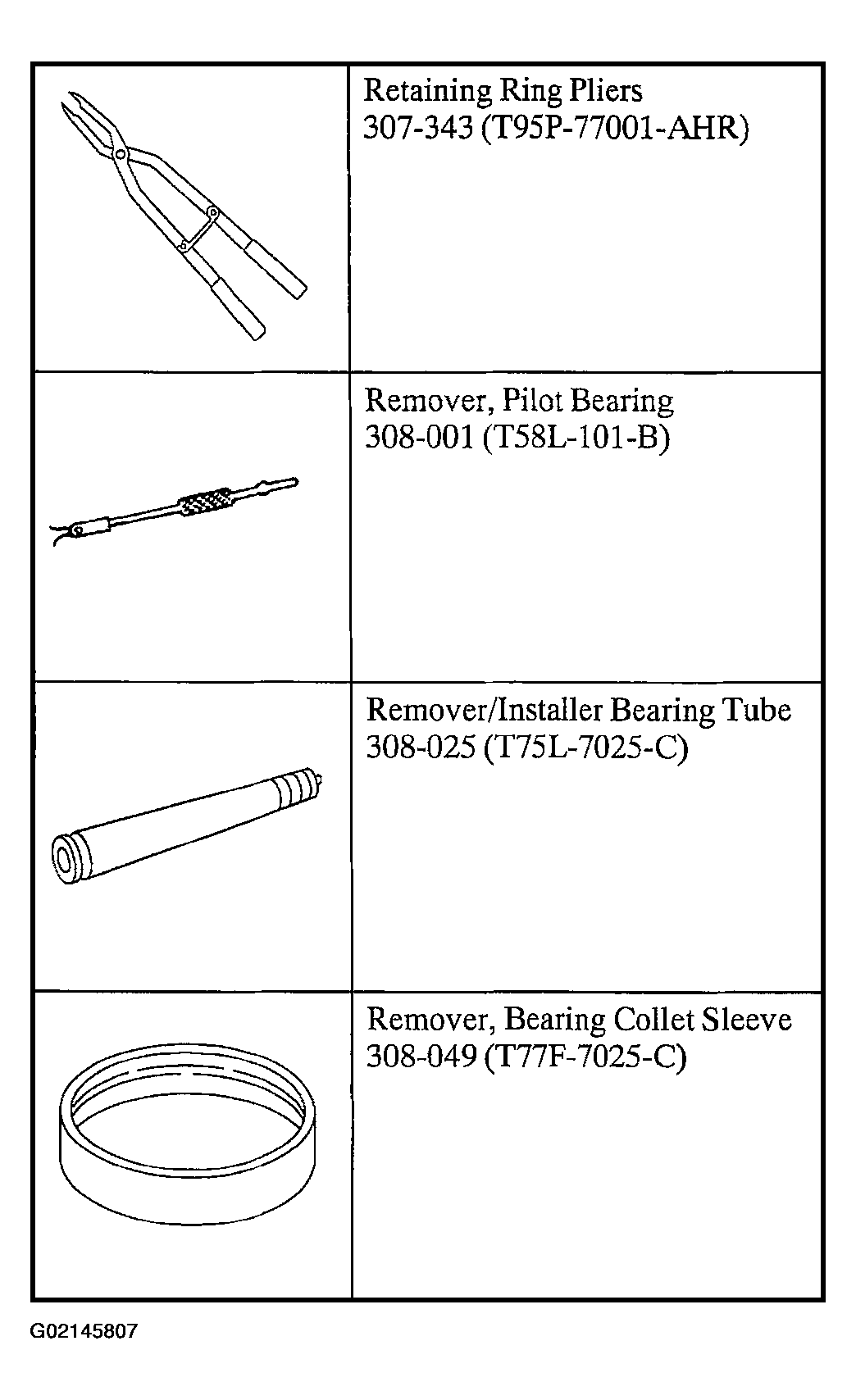

Fig 4: Identifying Special Tools (4 Of 4)
G02145807Courtesy of FORD MOTOR CO.
