Special Tool(s)

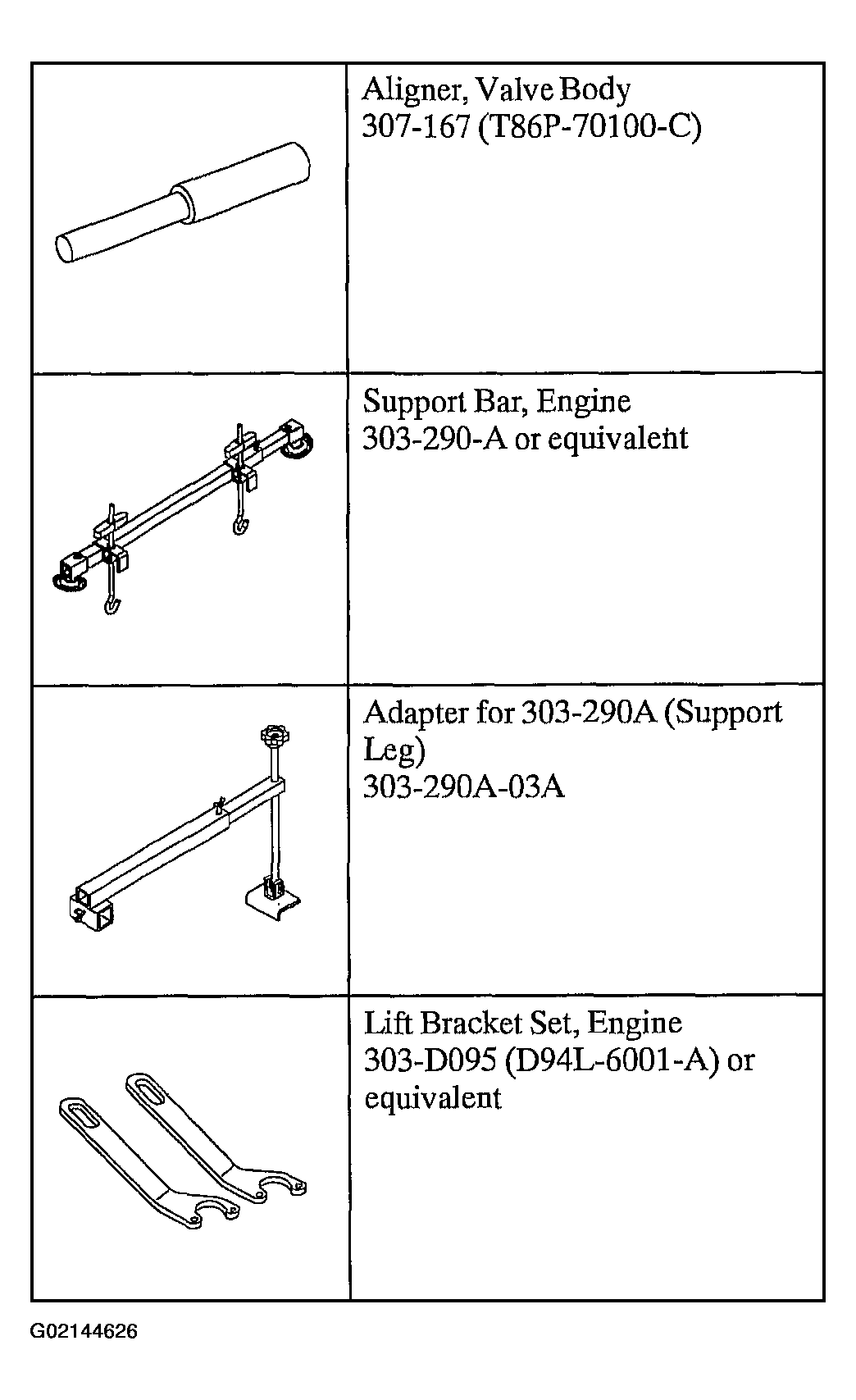

Fig 1: Identifying Special Tools (1 Of 2)
G02144626Courtesy of FORD MOTOR CO.

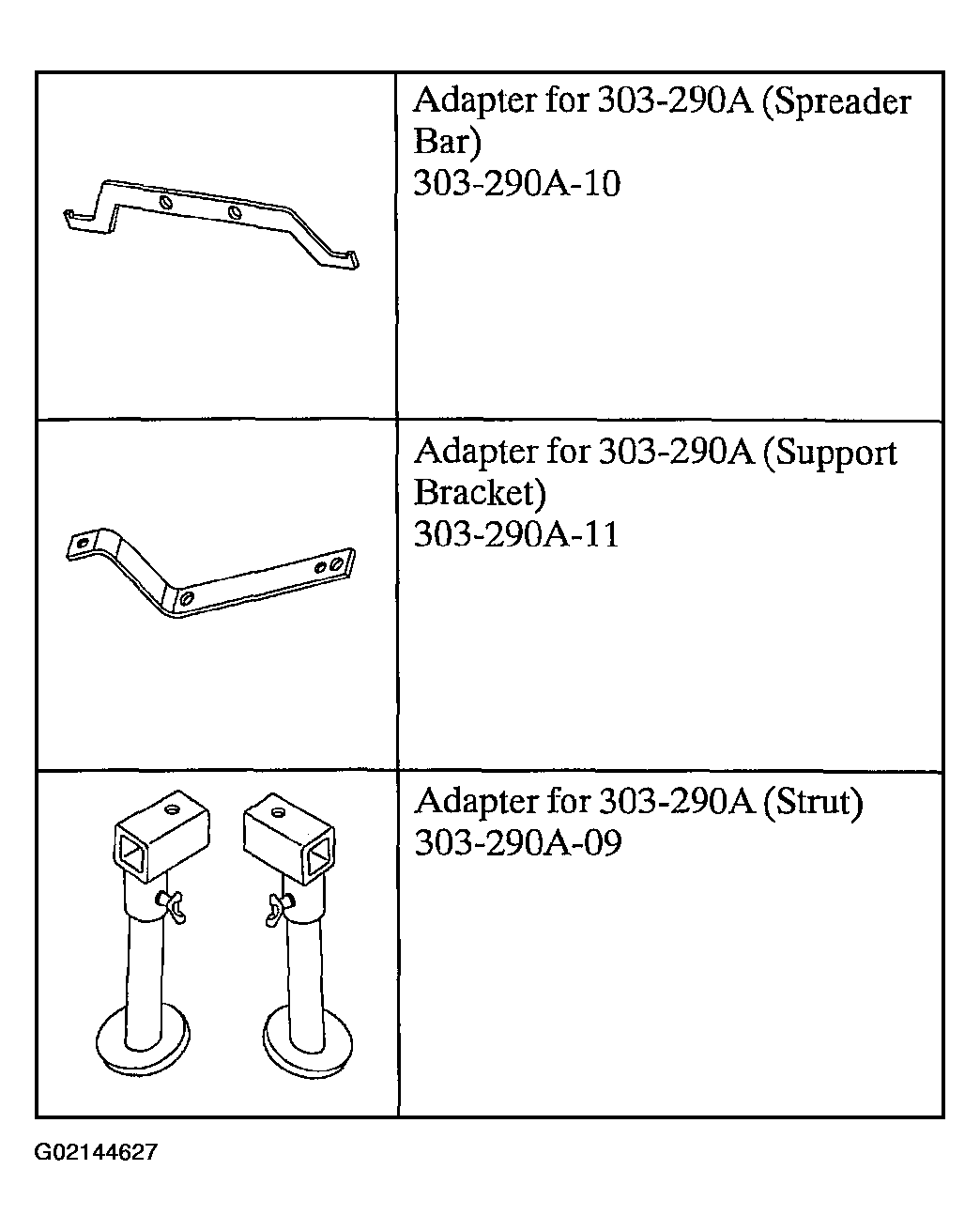

Fig 2: Identifying Special Tools (2 Of 2)
G02144627Courtesy of FORD MOTOR CO.
