Pump - CIII: Installation

  1. To install, reverse the removal procedure.
    • Using the special tool, install a new seal on the power steering hose.
      Fig 1: Installing A Seal On Power Steering Hose
      G03424556Courtesy of FORD MOTOR CO.

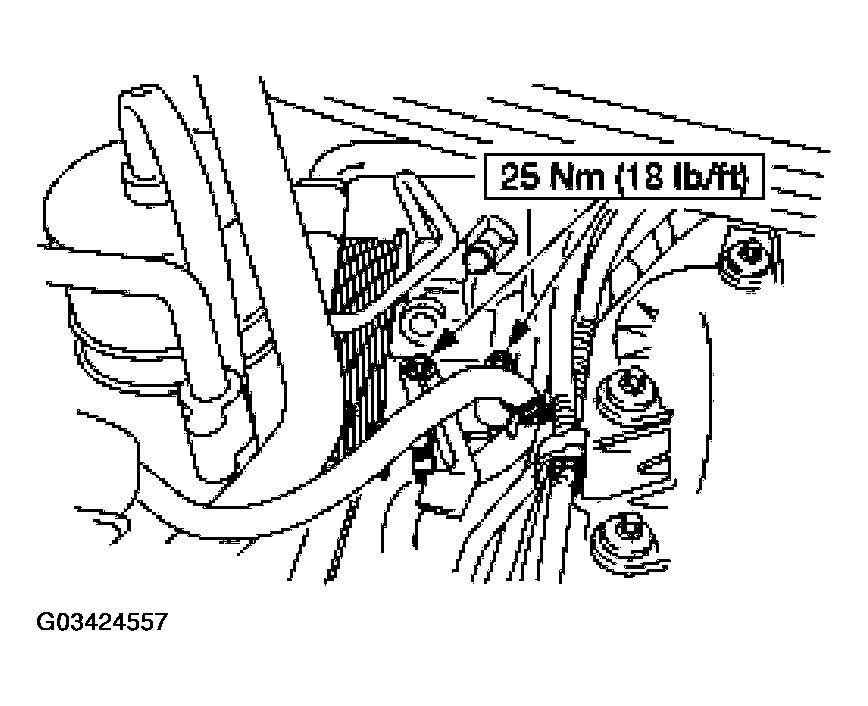

      Fig 2: Installing Bolts, Brackets And Power Steering Pump (3A674)
      G03424557Courtesy of FORD MOTOR CO.

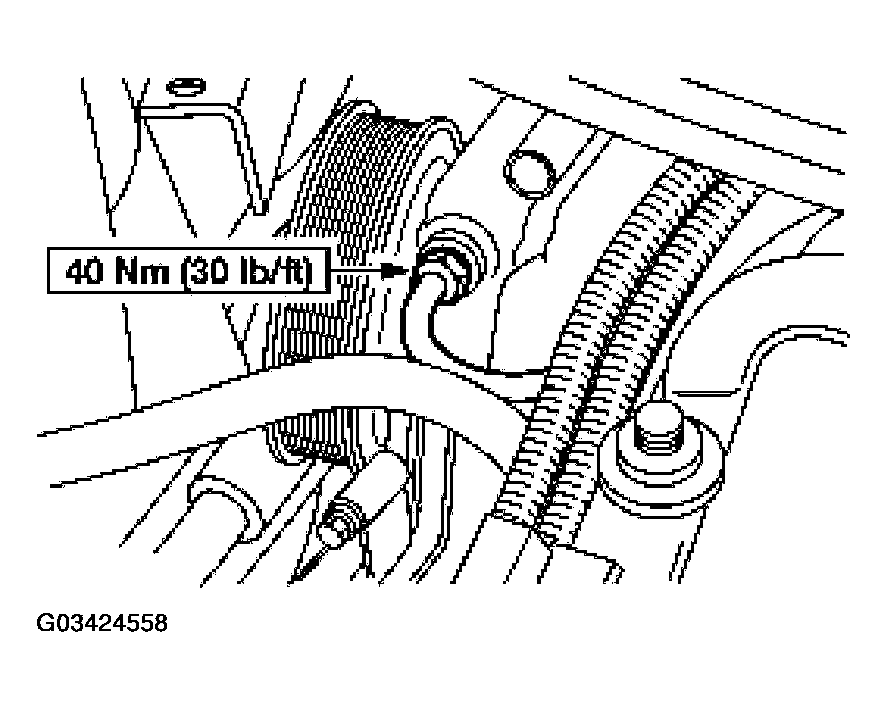

      Fig 3: Connecting Power Steering Hose (3A719)
      G03424558Courtesy of FORD MOTOR CO.
