Diagnostic Flow Chart

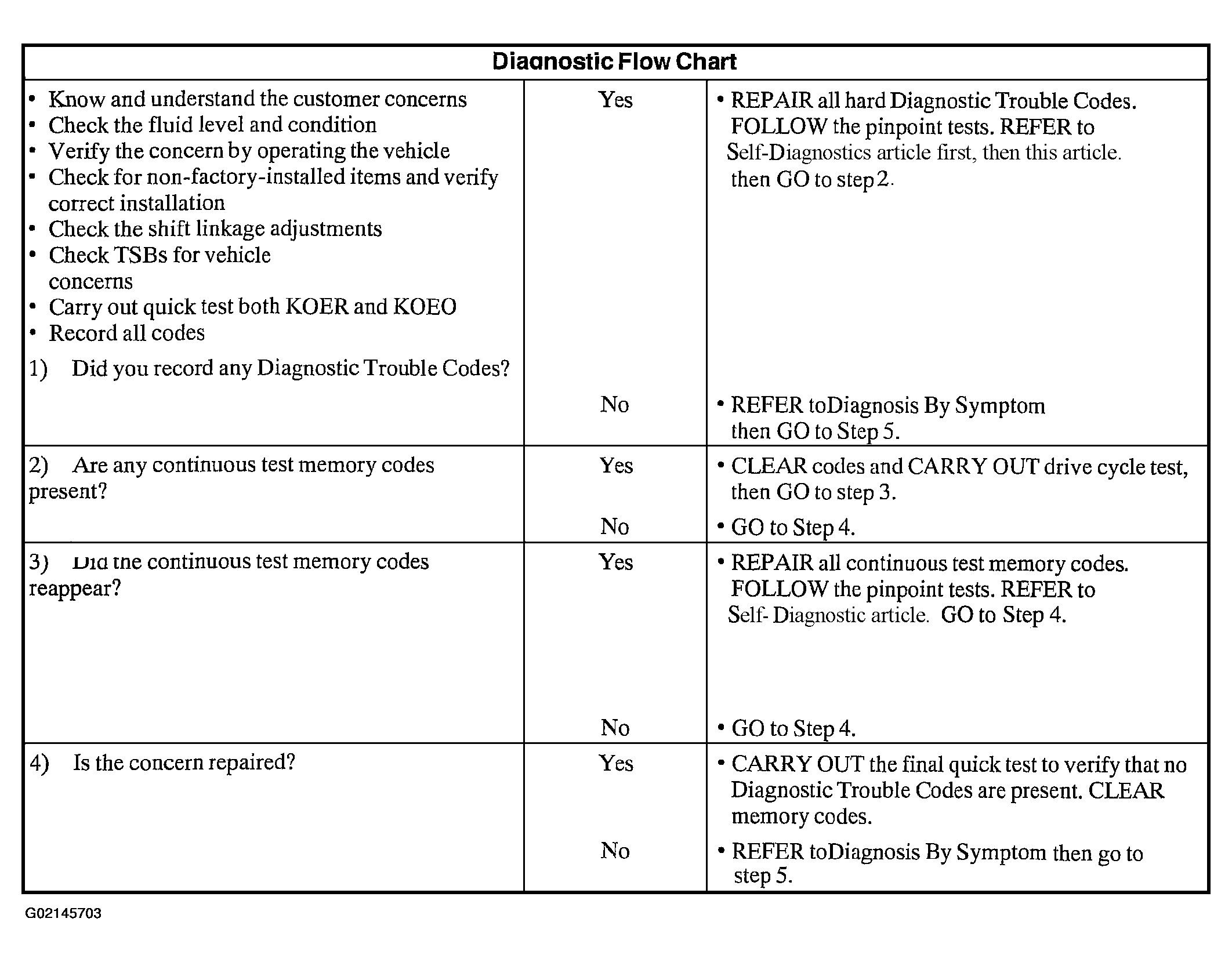

Fig 1: Diagnostic Flow Chart (1 Of 2)
G02145703Courtesy of FORD MOTOR CO.

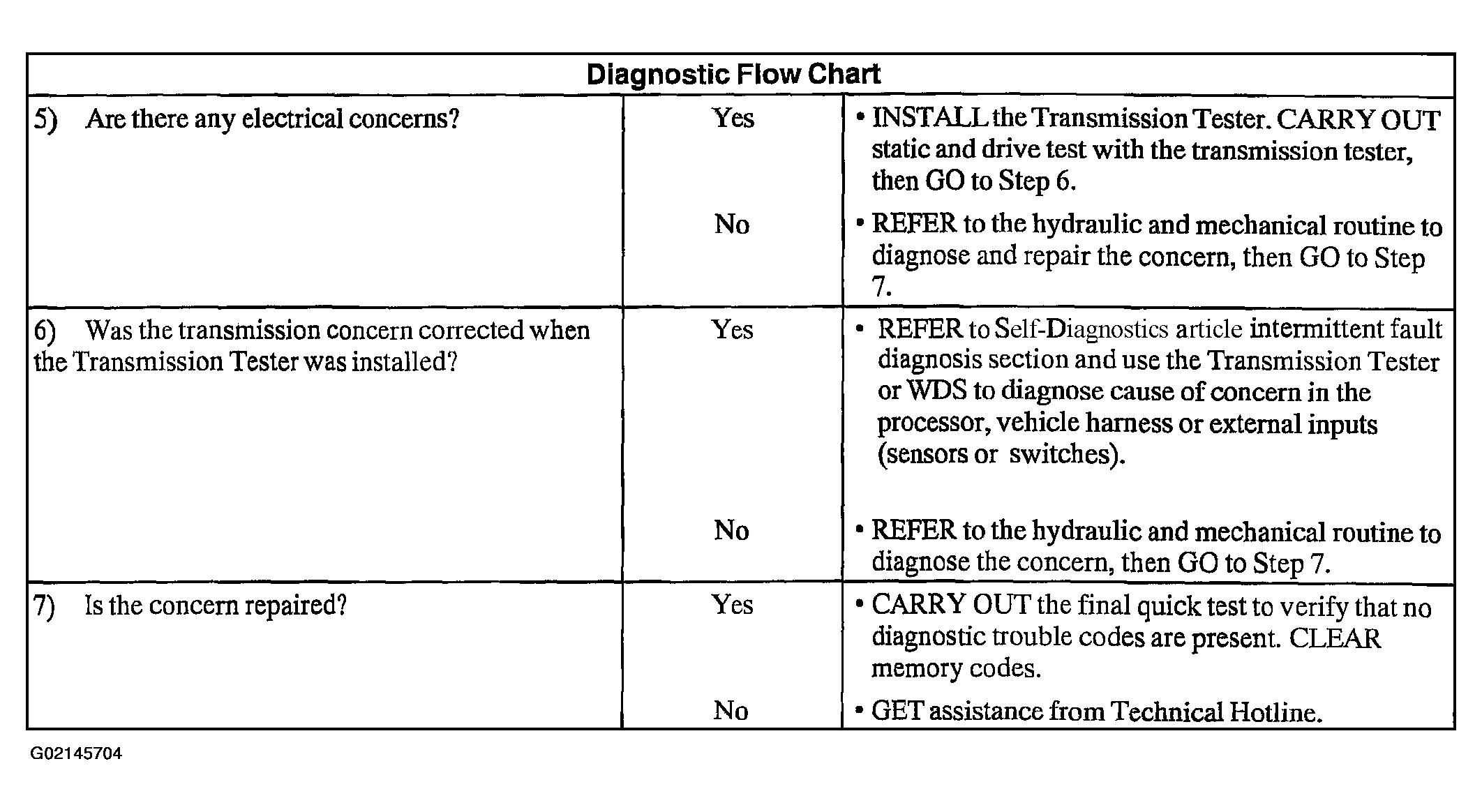

Fig 2: Diagnostic Flow Chart (2 Of 2)
G02145704Courtesy of FORD MOTOR CO.
