Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 and Fig 2 .

COMPONENT LOCATIONS

Component	Location
Battery Junction Box	Left Side Of Engine Compartment, Next To Battery
Central Junction Box	Under Left Side Of Instrument Panel
DEFOG Fuse	In Battery Junction Box
Integrated Control Panel	Center Of Dash
METER Fuse	In Central Junction Box
Rear Window Defogger Relay	In Relay Box
Relay Box	Behind Left Instrument Panel
Warning Chime Module	In Central Junction Box

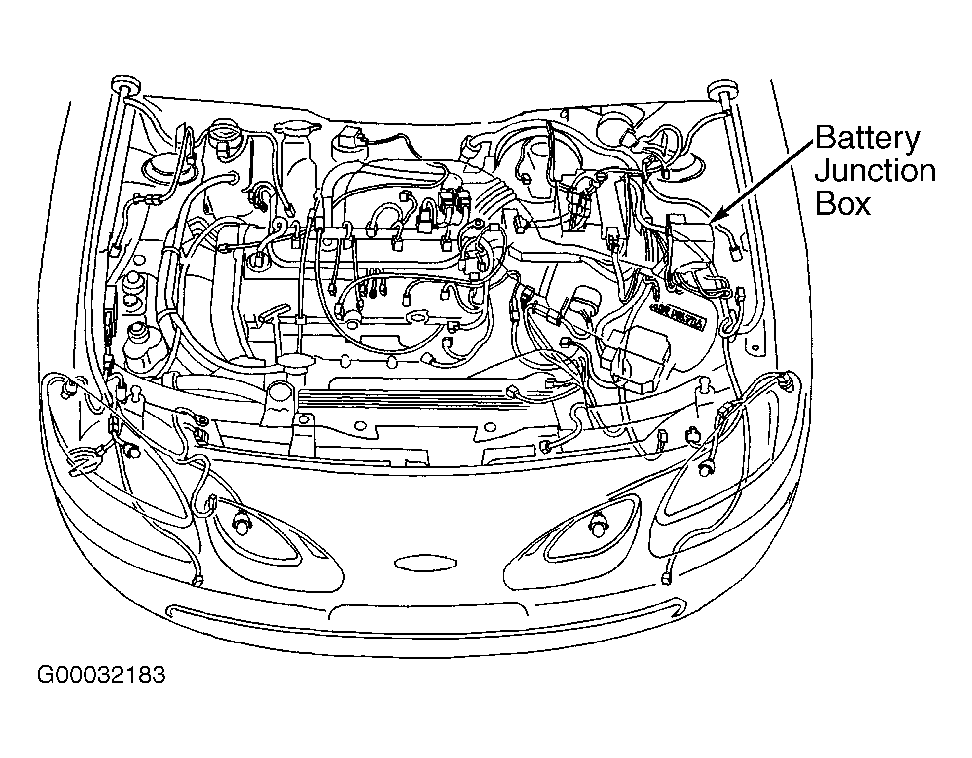

Fig 1: Locating Battery Junction Box (ZX2 Shown; Escort Is Similar)

Courtesy of FORD MOTOR CO.

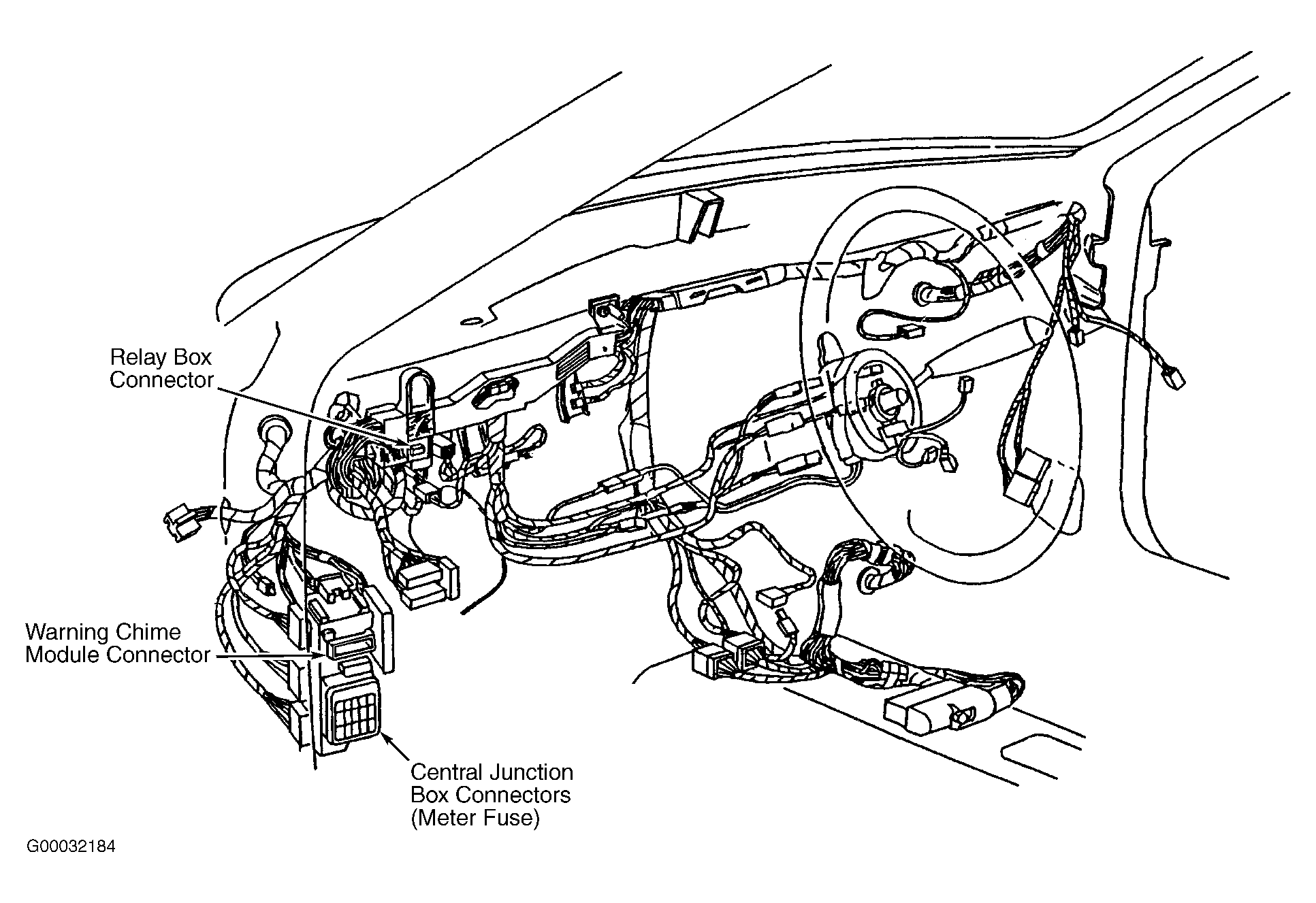

Fig 2: Locating Passenger Compartment Components

Courtesy of FORD MOTOR CO.
