Component Locations
NOTE:
Instrument cluster may also be referred to as Virtual Instrument Cluster (VIC). For component and connector locations, refer to illustrations. See Fig 1 - Fig 4
.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Central Junction Box | Under Left Side Of Instrument Panel |
| Data Link Connector | Under Left Side Of Instrument Panel, To Left Of Steering Column |
| Door Lock Switch | Appropriate Door Panel Arm Rest |
| Instrument Cluster | Left Side Of Instrument Panel |
| Relay Box | Behind Left Side Of Instrument Panel |
| Remote Anti-Theft Personality Module | In Luggage Compartment, Behind Right Trim Panel |

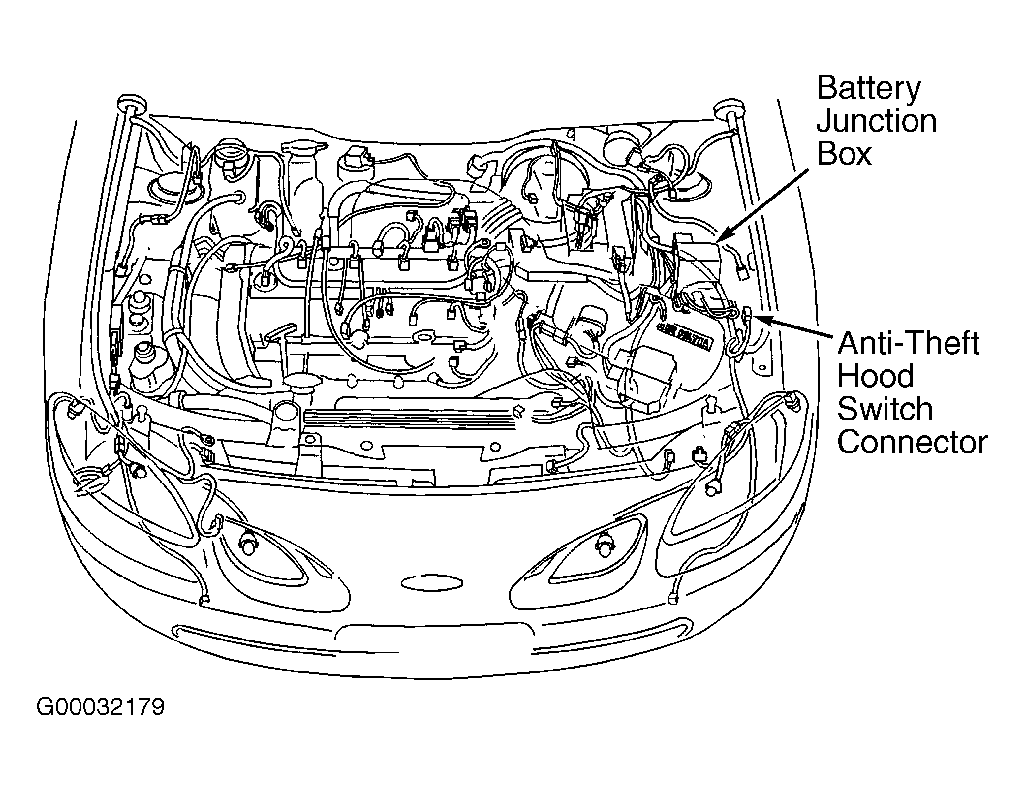

Fig 1: Locating Battery Junction Box & Anti-Theft Hood Switch Connector (ZX2 Shown; Escort Is Similar)
