Pinpoint Test DT: Drive Cycle Test

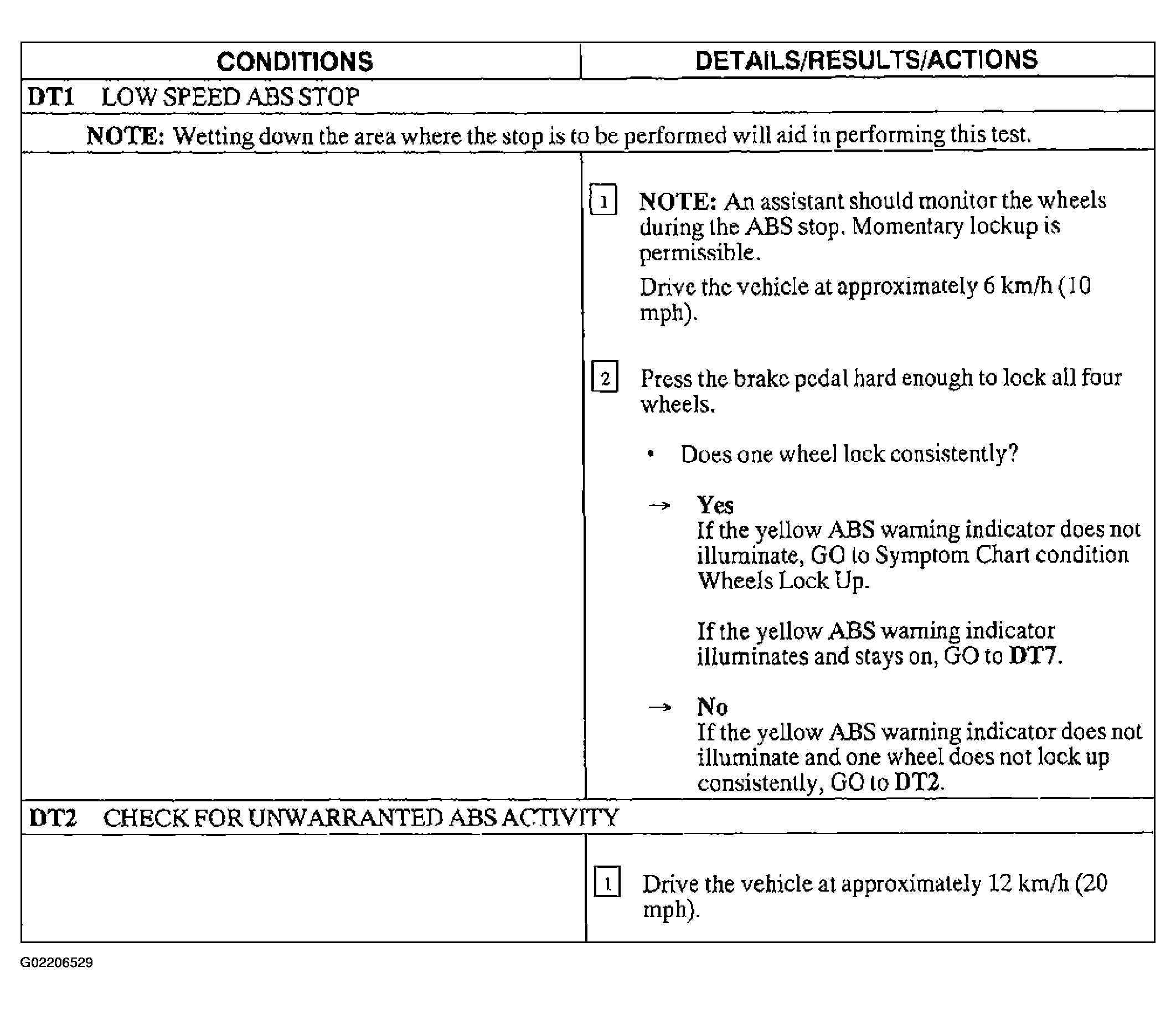

Fig 1: Pinpoint Test DT: Drive Cycle Test (Steps DT1)

Courtesy of FORD MOTOR CO.

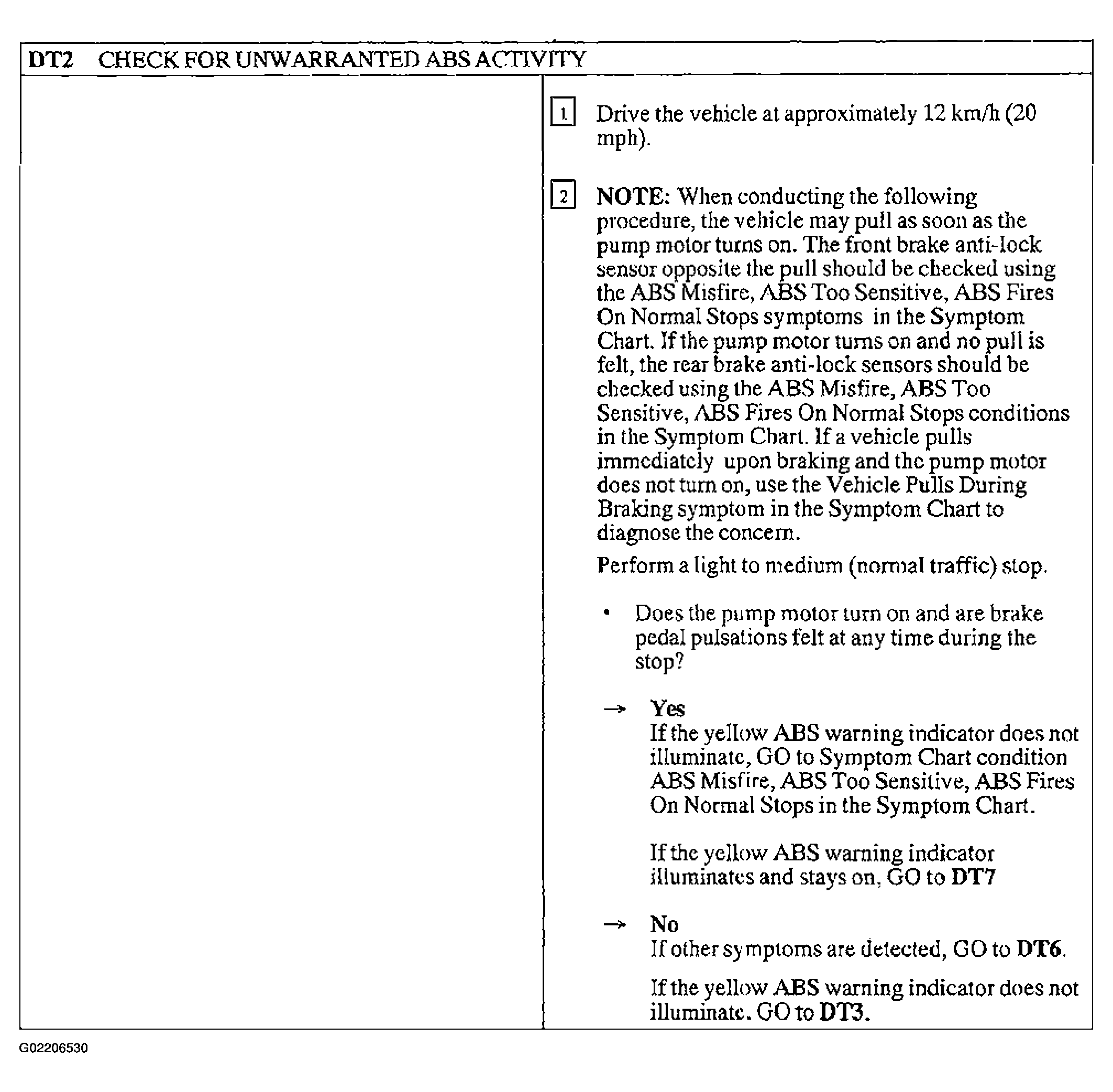

Fig 2: Pinpoint Test DT: Drive Cycle Test (Step DT2)

Courtesy of FORD MOTOR CO.

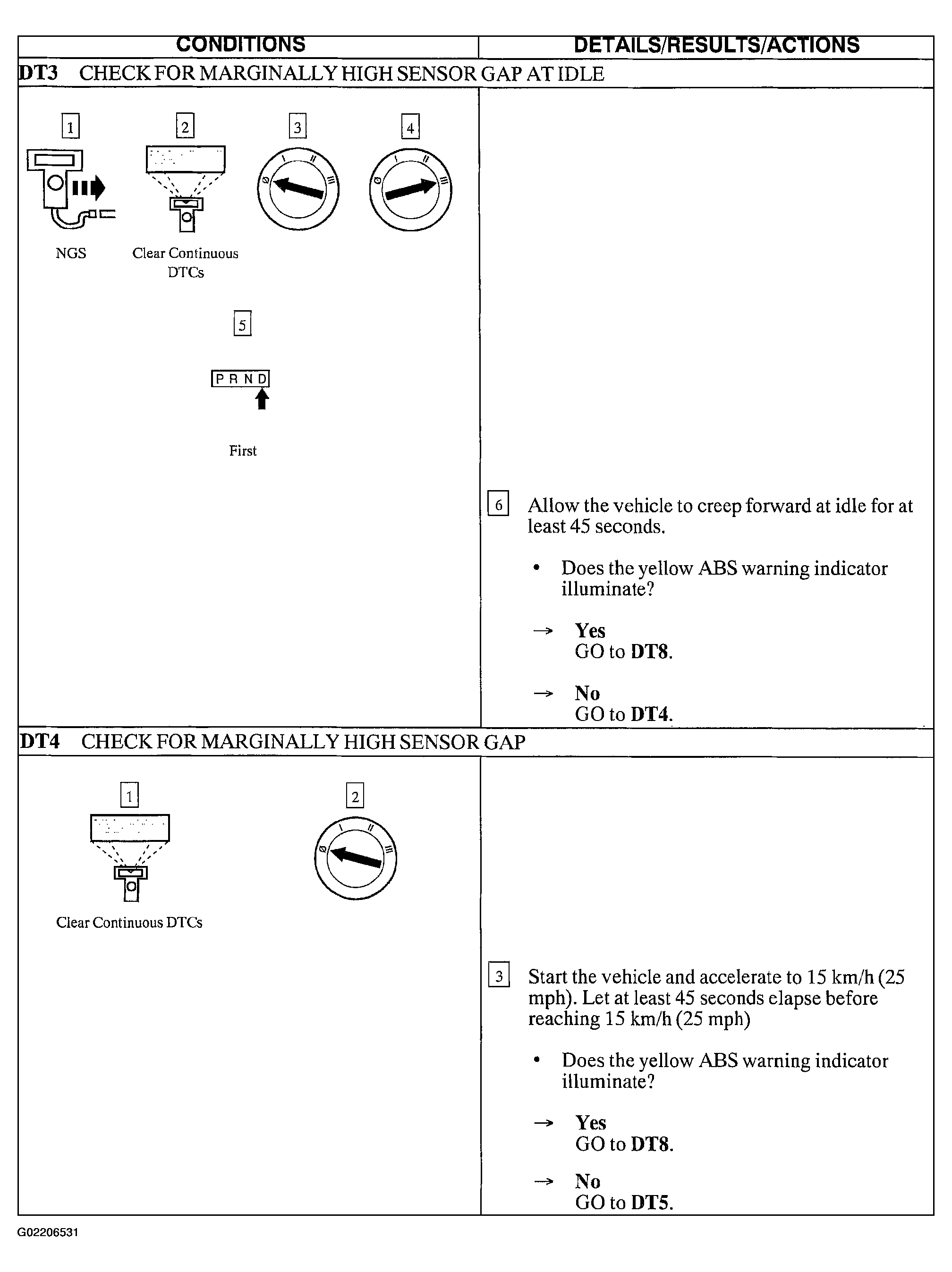

Fig 3: Pinpoint Test DT: Drive Cycle Test (Steps DT3 & DT4)

Courtesy of FORD MOTOR CO.

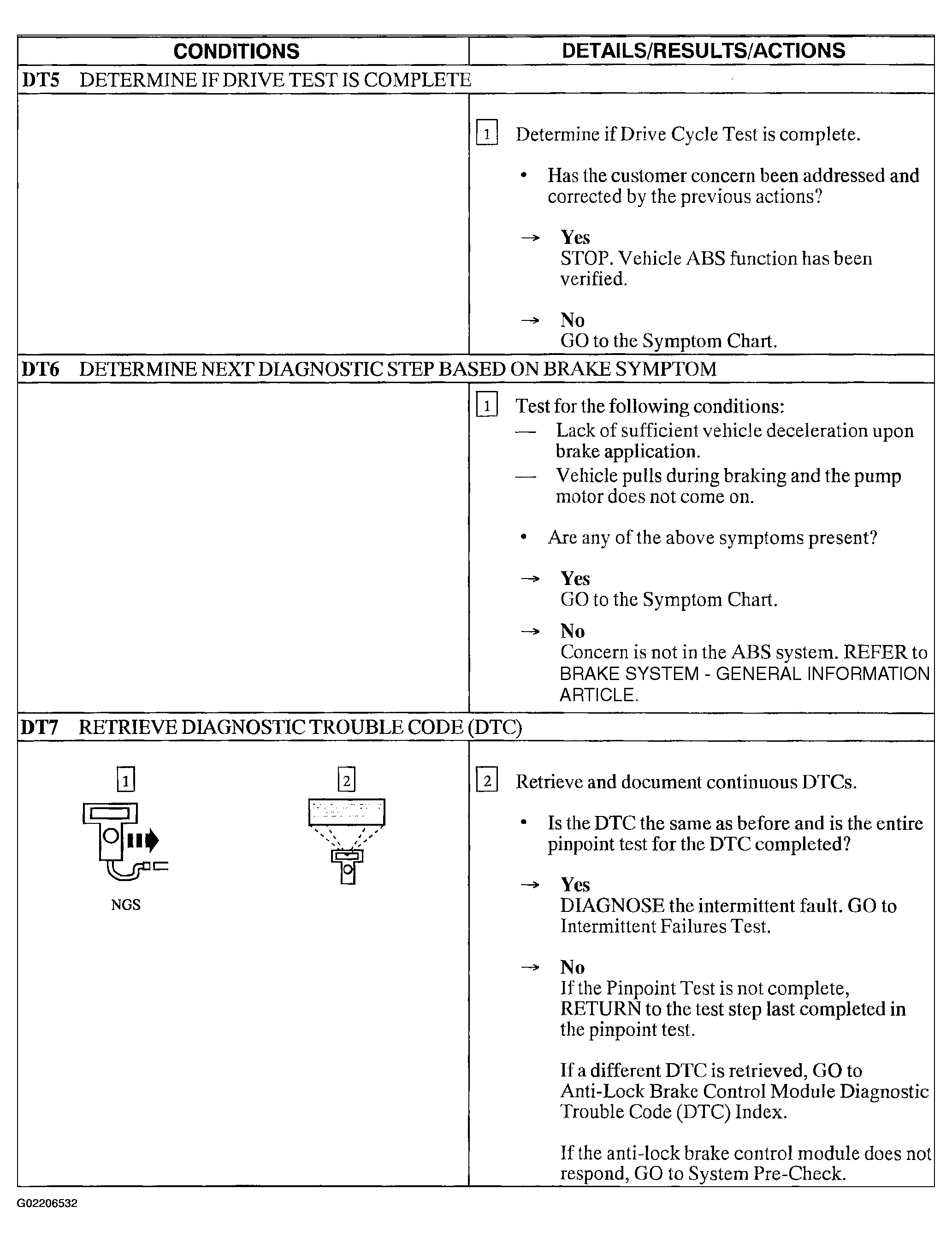

Fig 4: Pinpoint Test DT: Drive Cycle Test (Steps DT5-DT7)

Courtesy of FORD MOTOR CO.

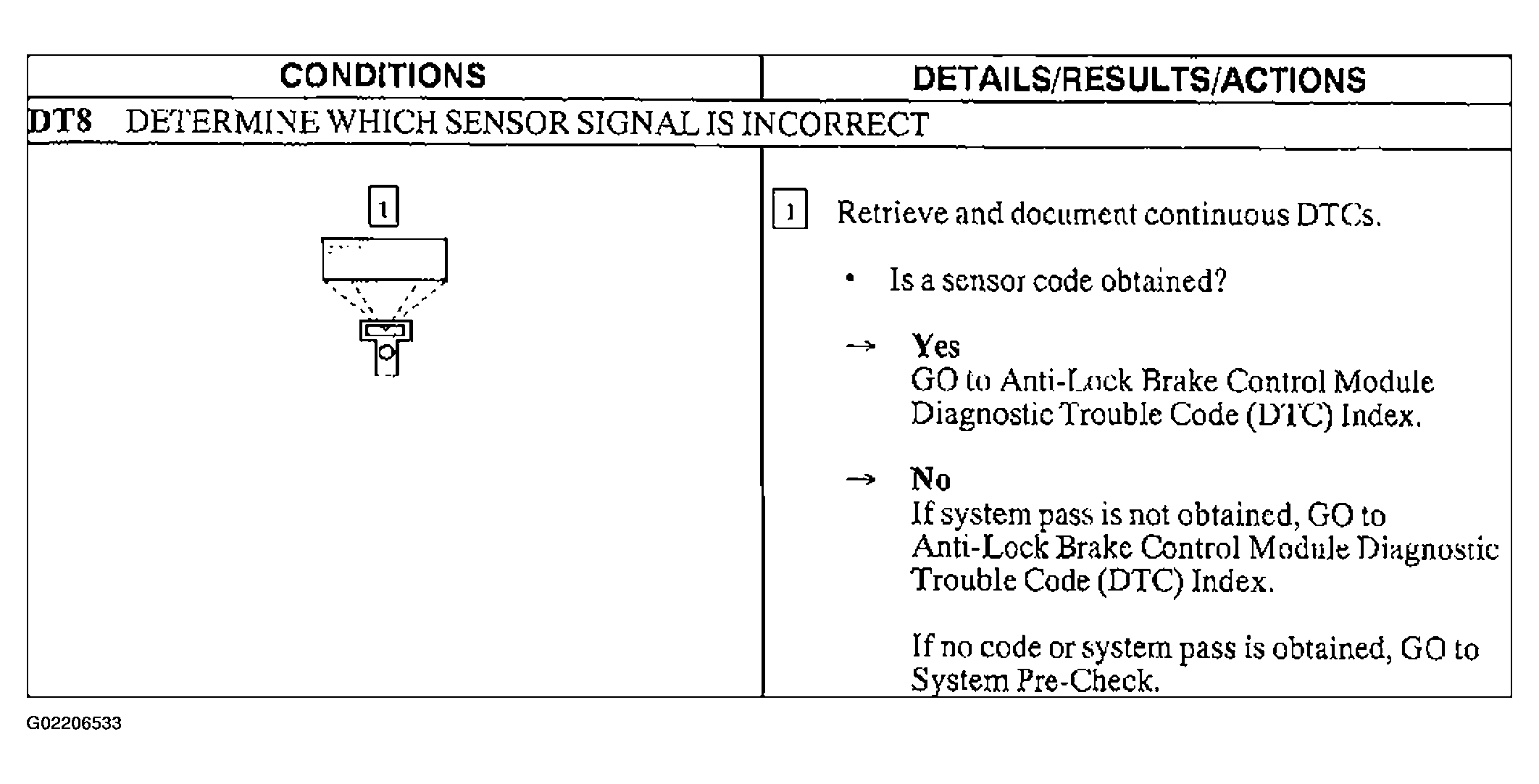

Fig 5: Pinpoint Test DT: Drive Cycle Test (Step DT8)

Courtesy of FORD MOTOR CO.
