Pinpoint Test D: DTC C1115 - Shorted Anti-Lock Relay

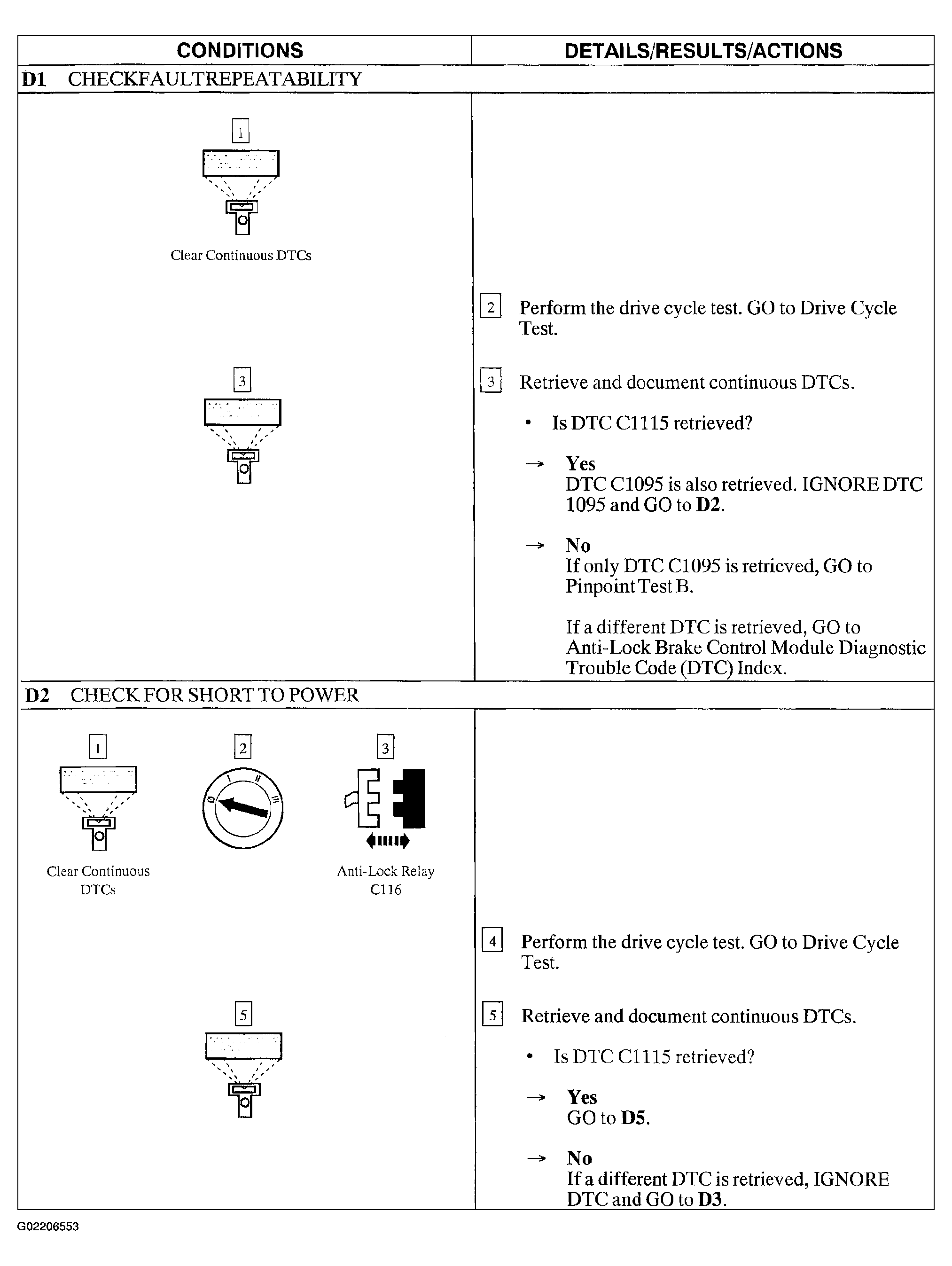

Fig 1: Pinpoint Test D: DTC C1115 - Shorted Anti-Lock Relay (Steps D1 & D2)
G02206553Courtesy of FORD MOTOR CO.

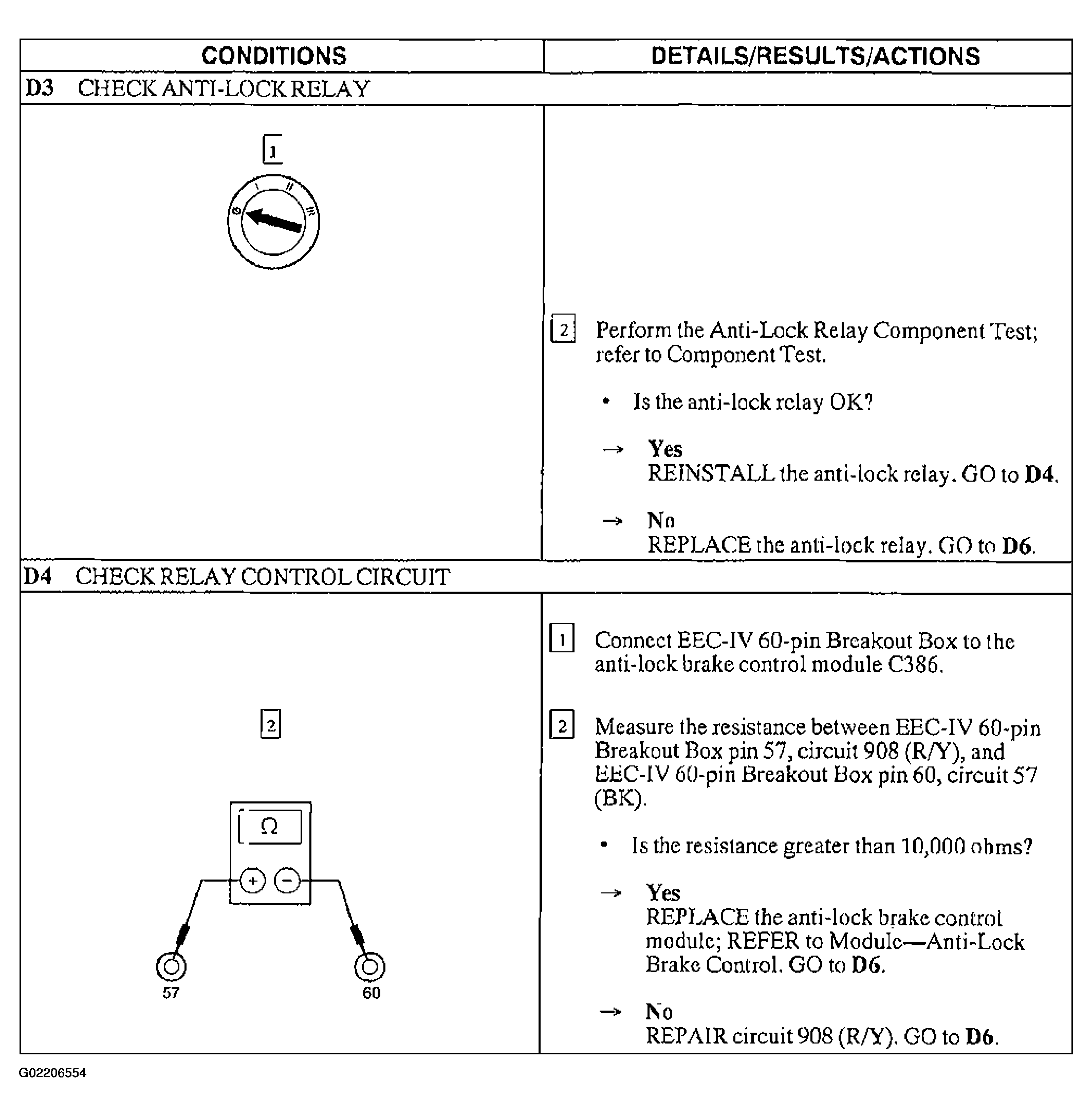

Fig 2: Pinpoint Test D: DTC C1115 - Shorted Anti-Lock Relay (Steps D3 & D4)
G02206554Courtesy of FORD MOTOR CO.

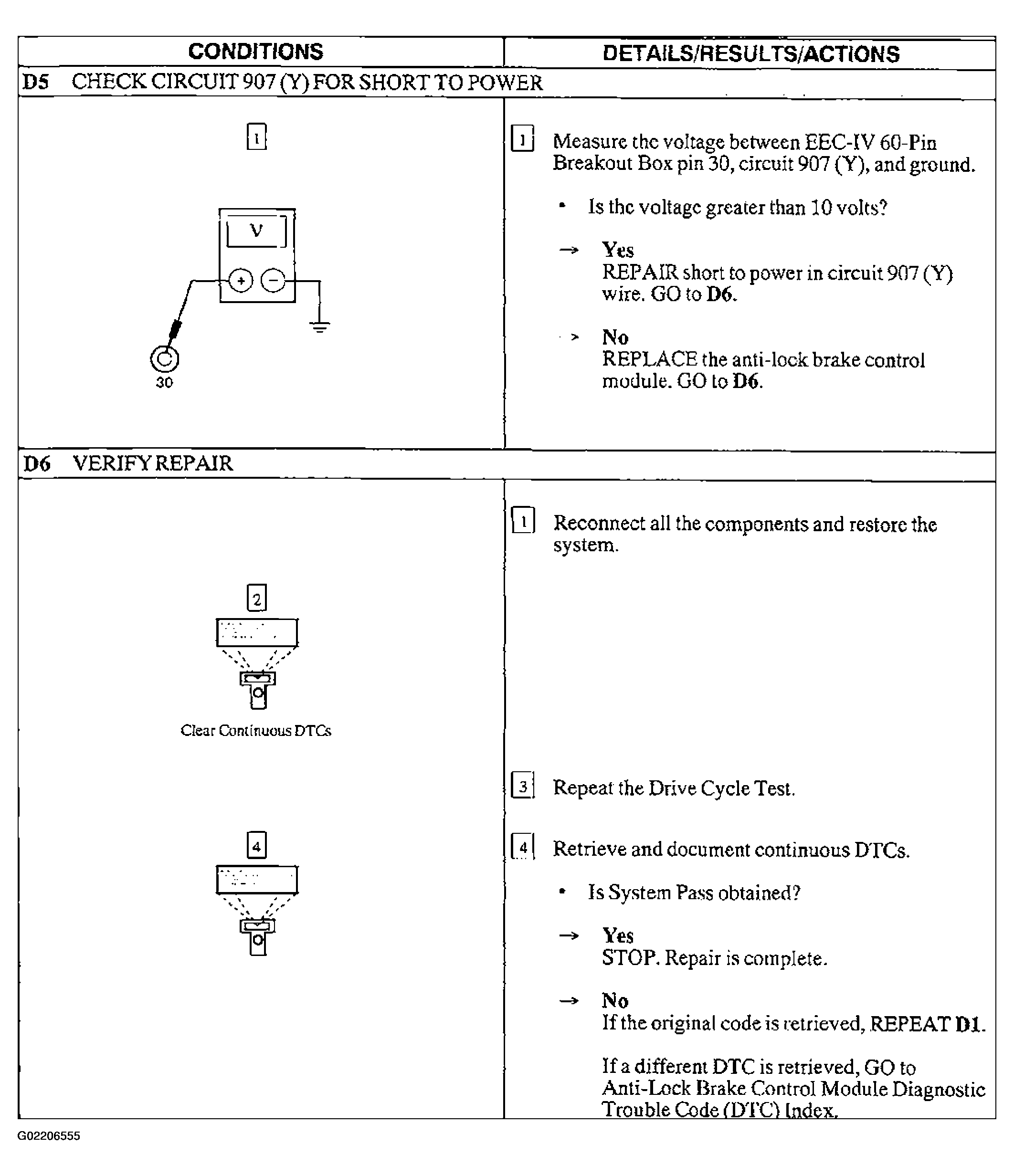

Fig 3: Pinpoint Test D: DTC C1115 - Shorted Anti-Lock Relay (Steps D5 & D6)
G02206555Courtesy of FORD MOTOR CO.
