Battery Junction Box
NOTE:

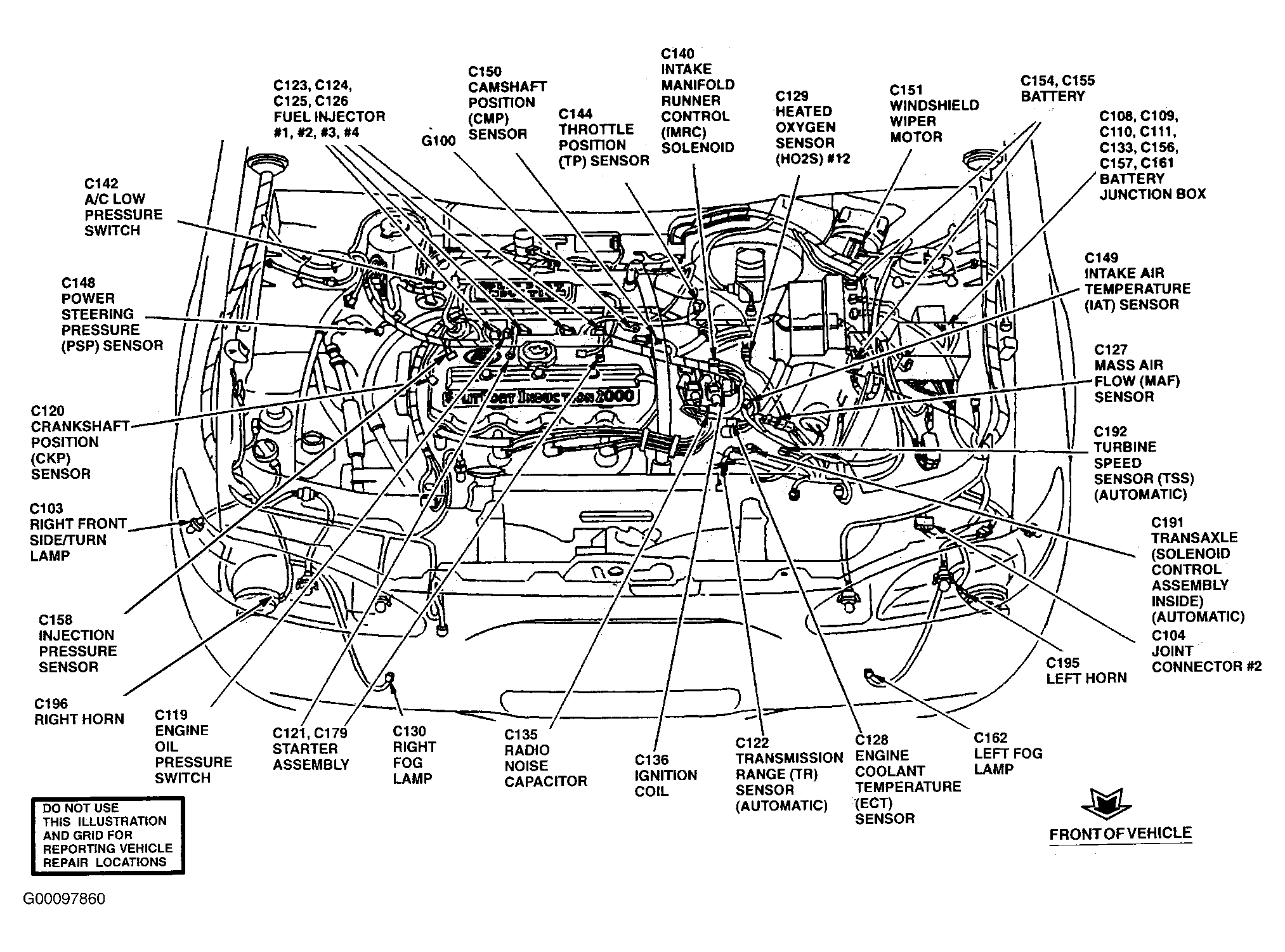

Battery junction box is located on driver's side of engine compartment, near battery. See Fig 1.
BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| FUSE LINK CARTRIDGE | AMPS | CIRCUITS PROTECTED |
|---|---|---|
| FUEL INJ. | 30 | AIR BAGS, ENGINE CONTROLS, GENERATOR |
| DEFOG. | 30 | REAR WINDOW DEFROST |
| MAIN | 100 | OVERALL CIRCUIT PROTECTION |
| BTN | 40 | HAZARD STOP, DOOR LOCK, TAIL, ROOM AND HORN FUSES OF THE CENTRAL JUNCTION BOX |
| ABS | 60 | ABS MAIN RELAY |
| COOLING FAN | 40 | CONSTANT CONTROL RELAY MODULE |
| FUSE | AMPS | CIRCUITS PROTECTED |
| OBD-II | 10 | DATA LINK CONNECTOR (DLC), INSTRUMENT CLUSTER |
| FUEL PUMP | 20 | ENGINE CONTROLS |
| HEAD RH | 10 | HEADLAMPS |
| HEAD LH | 10 | HEADLAMPS |
