Piston-Pin Connecting Rod Assembly, Press Fit: Disassembly

  1. Use the Piston Pin Tool to press the piston pin out from the piston assembly and connecting rod.

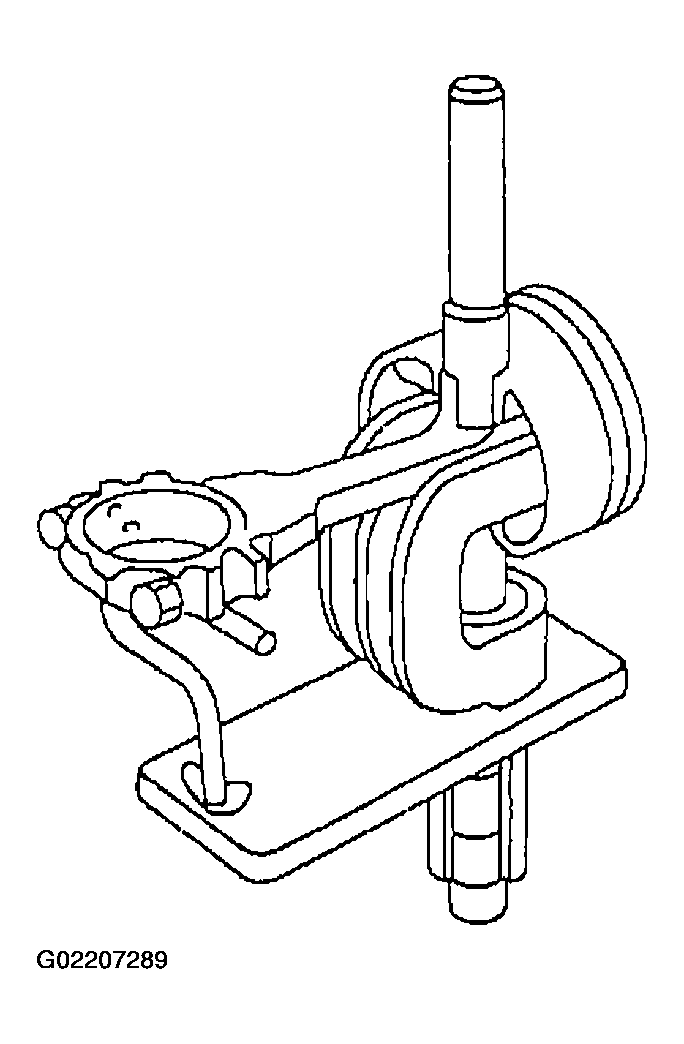

    Fig 1: Pressing Piston Pin Out From Piston Assembly And Connecting Rod
    G02207289Courtesy of FORD MOTOR CO.
  2. Remove the connecting rod (6200) and piston rings from the piston.

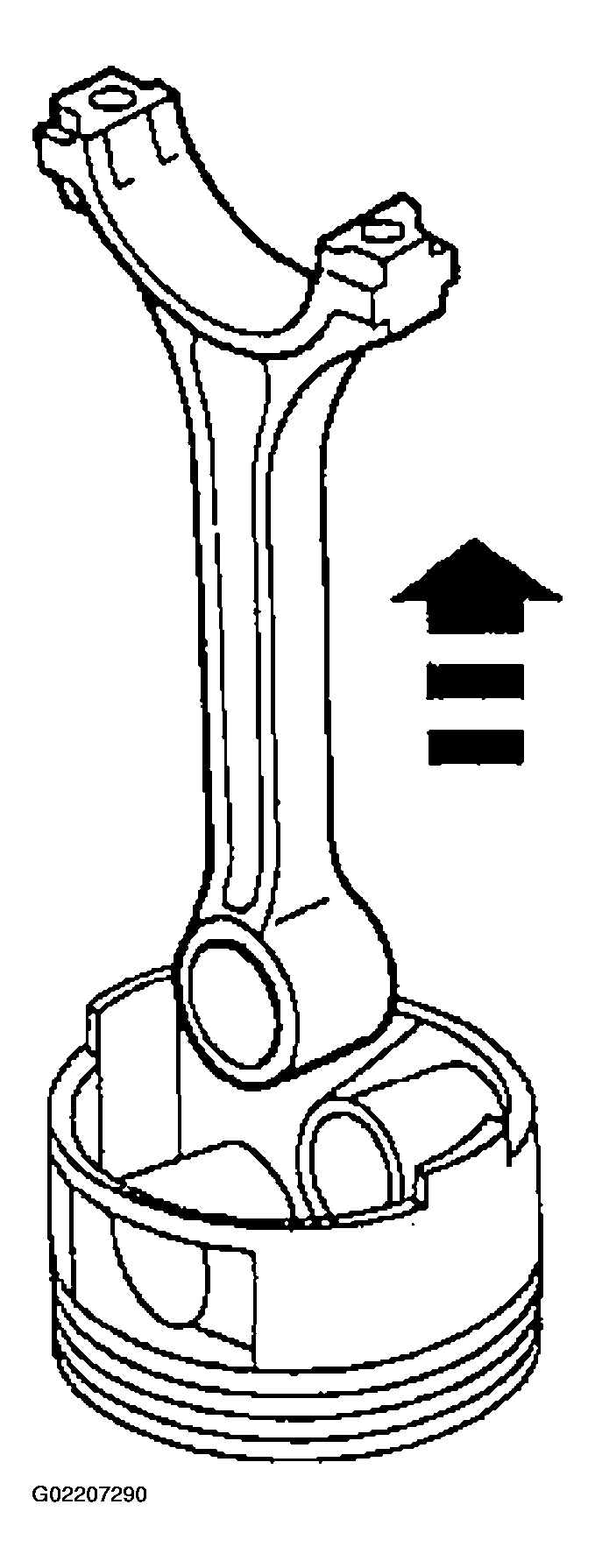

    Fig 2: Removing Connecting Rod And Piston Rings From Piston
    G02207290Courtesy of FORD MOTOR CO.
  3. Clean and inspect the piston, piston pin and connecting rod. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
