In-Vehicle Repair: Flywheel: Removal

  1. Remove the clutch disc. For additional information, refer to CLUTCH ASSEMBLY .
  2. Use Dial Indicator/Magnetic Base and inspect the flywheel runout. If over specification, machine the flywheel.

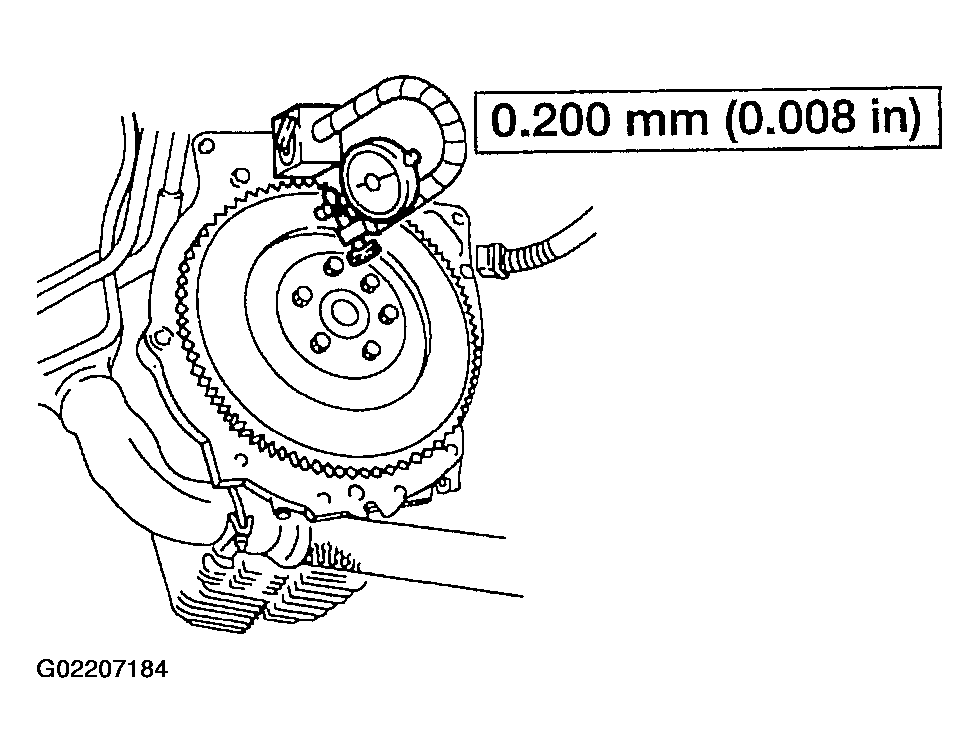

    Fig 1: Inspecting Flywheel Runout
    G02207184Courtesy of FORD MOTOR CO.
  3. Install the (1) flywheel holding tool and remove the (2) flywheel-to-crankshaft bolts (6379). Remove the flywheel (6375).

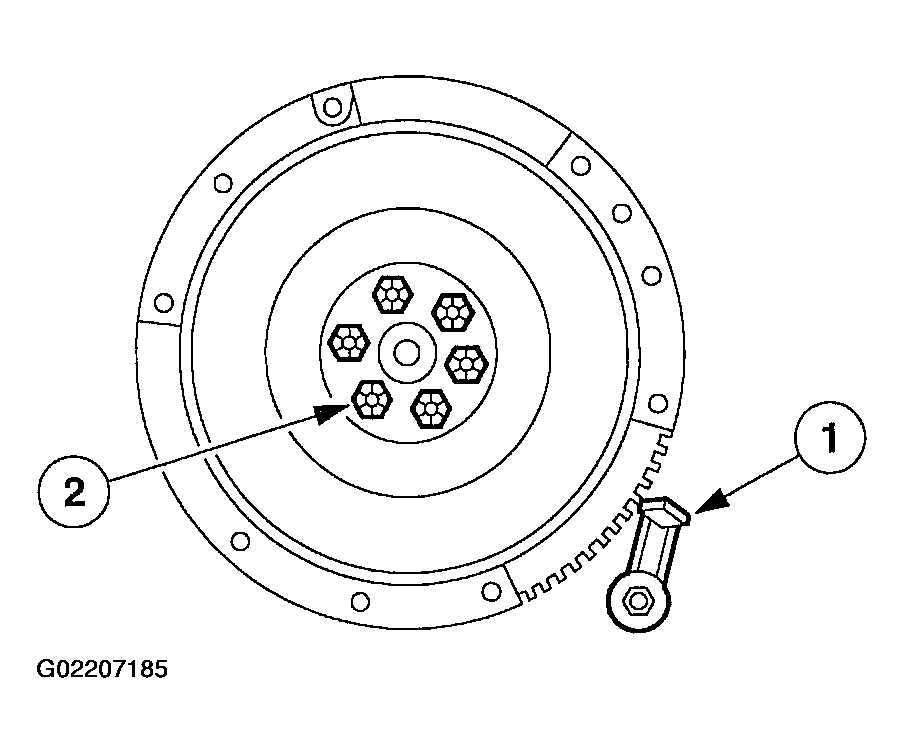

    Fig 2: Removing Flywheel
    G02207185Courtesy of FORD MOTOR CO.
  4. Inspect the flywheel for cracks, hot spots and scoring. If the flywheel friction surface is damaged, machining is required. If damage is found to the ring gear teeth, install a new ring gear.
