Component Location

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

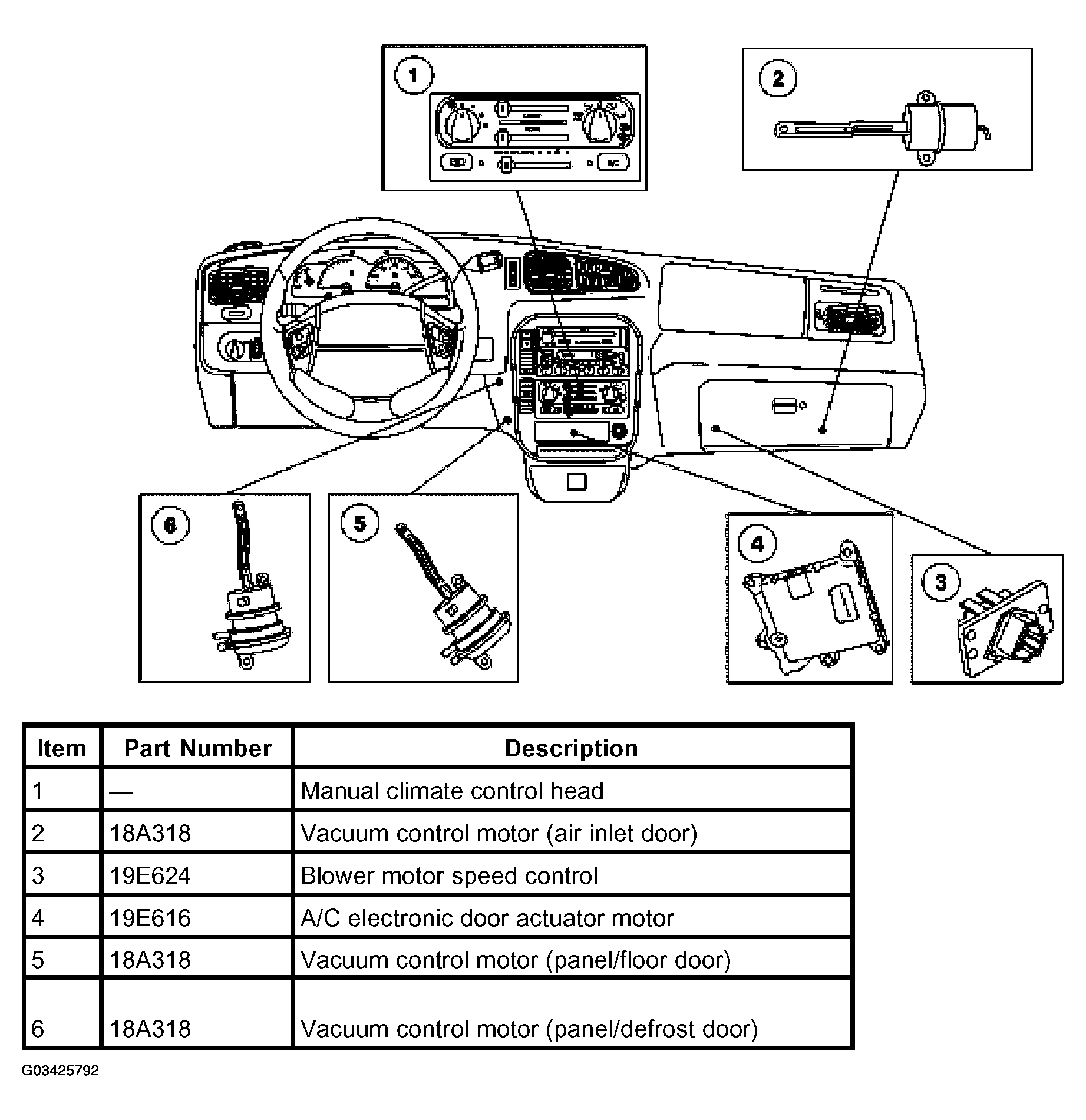

Fig 1: Identifying Manual A/C Components Location

Courtesy of FORD MOTOR CO.
