Switch - A/C Selector: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Remove the control assembly. Refer to CONTROL ASSEMBLY .
Remove the knob.

Fig 1: Removing Knob
Courtesy of FORD MOTOR CO.
Unsnap the switch.

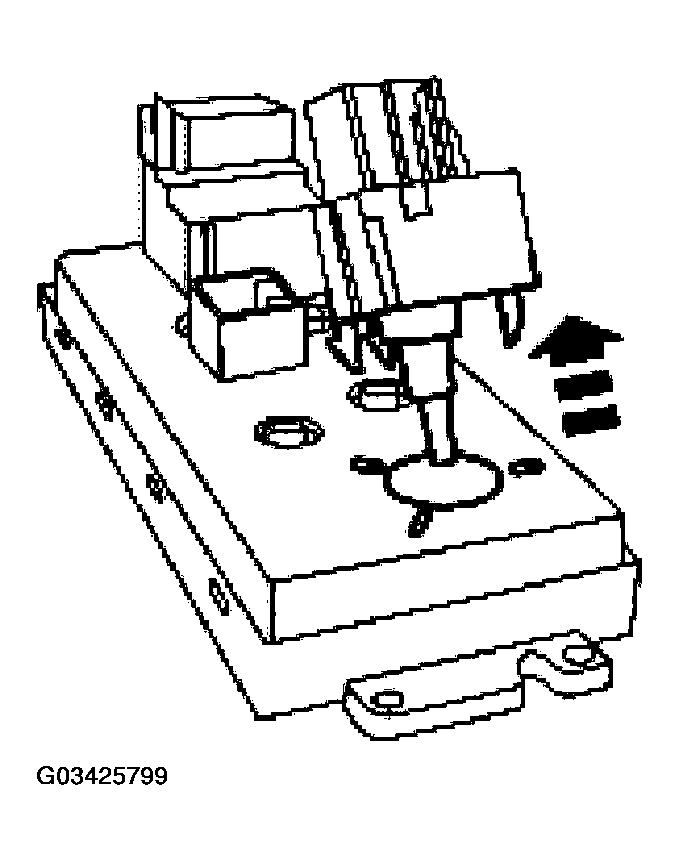

Fig 2: Removing A/C Selector Switch
Courtesy of FORD MOTOR CO.
