Function Control Knob Switch

NOTE: For circuit reference, see WIRING DIAGRAMS .

To check function control knob switch operation, see Fig 1.

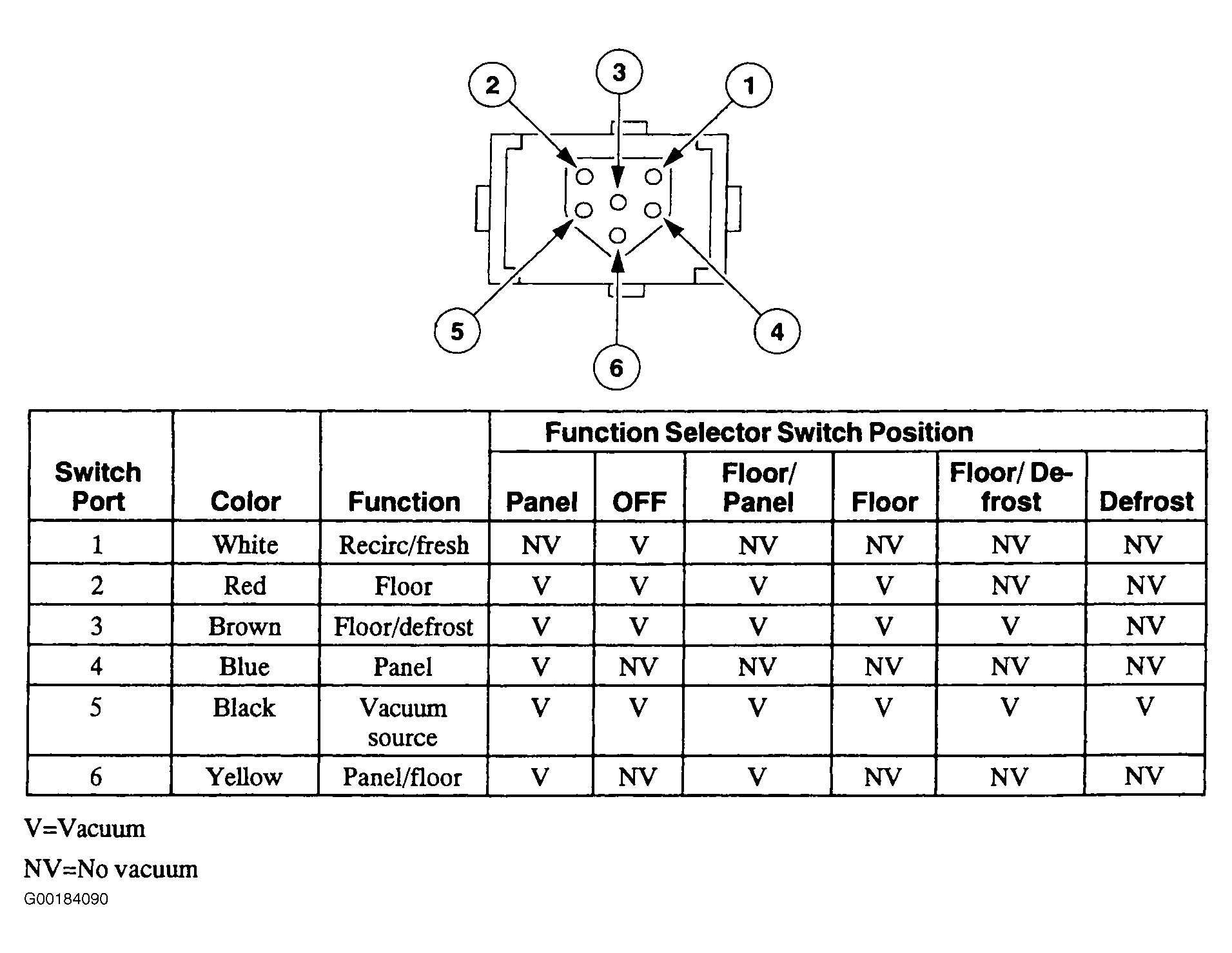

Fig 1: Testing Function Control Knob Switch

G00184090

Courtesy of FORD MOTOR CO.
