Removal And Installation: Reservoir: Removal

  1. Loosen the clamp and disconnect the power steering reservoir pump hose (3691).

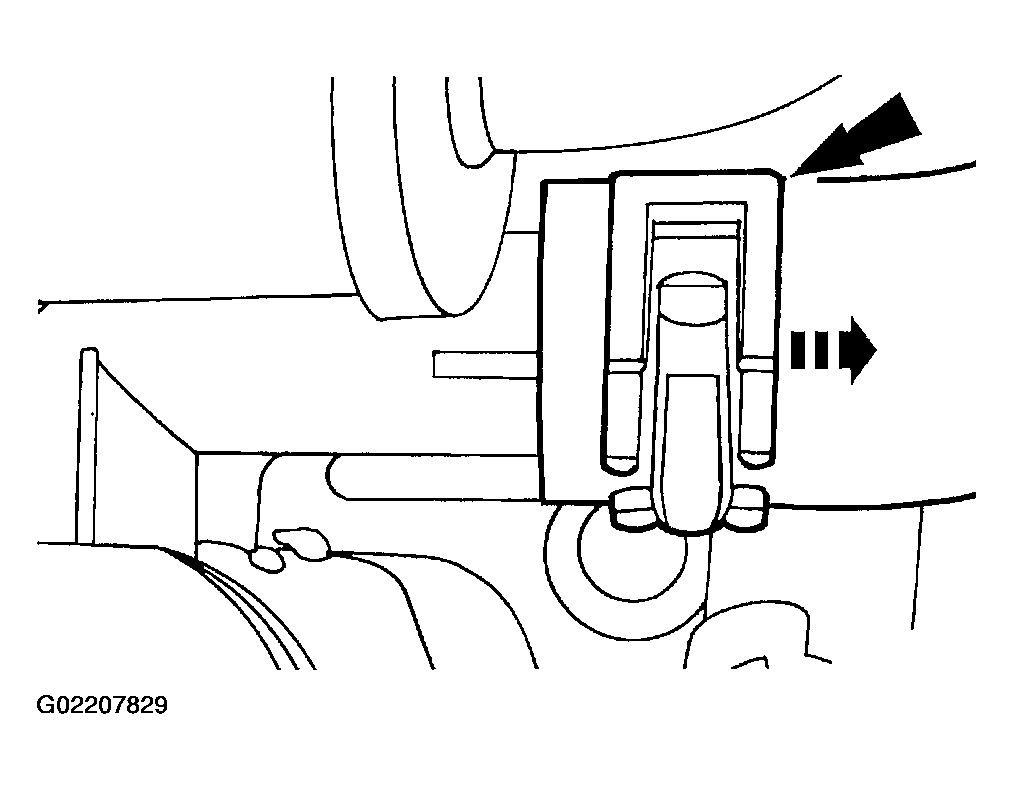

    Fig 1: Disconnecting Power Steering Reservoir Pump Hose
    G02207829Courtesy of FORD MOTOR CO.
  2. Loosen the clamp and disconnect the power steering return hose (3A713).

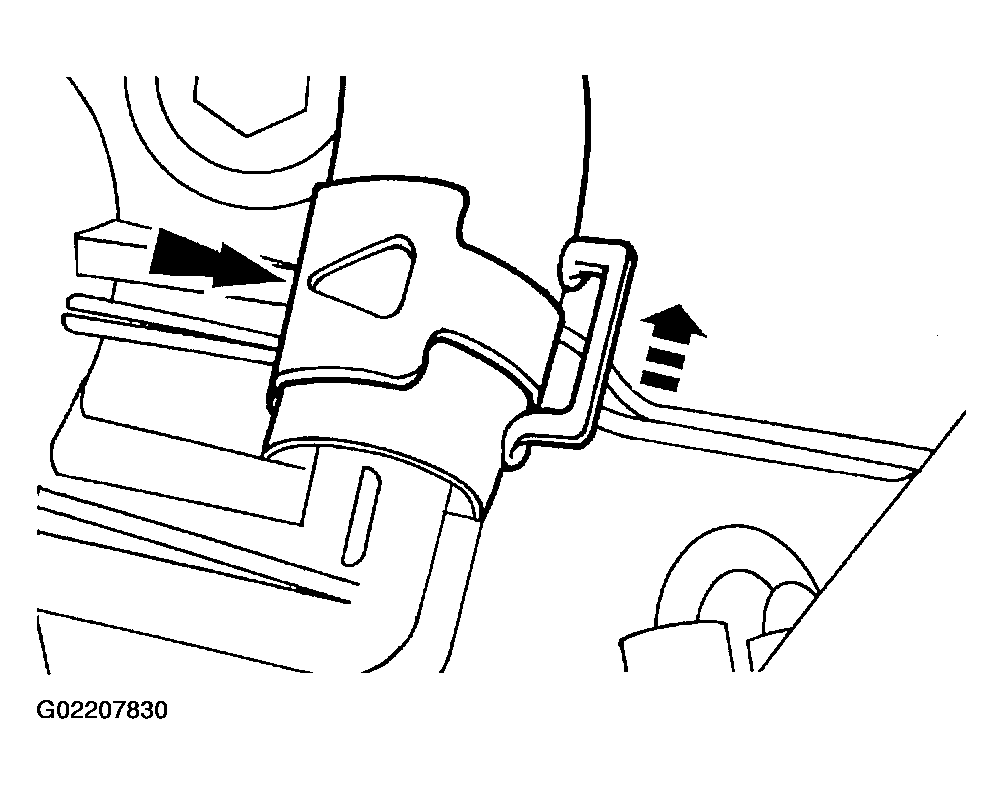

    Fig 2: Disconnecting Power Steering Return Hose
    G02207830Courtesy of FORD MOTOR CO.
  3. Remove the (A) bolts and the (B) power steering pump reservoir (3E764).

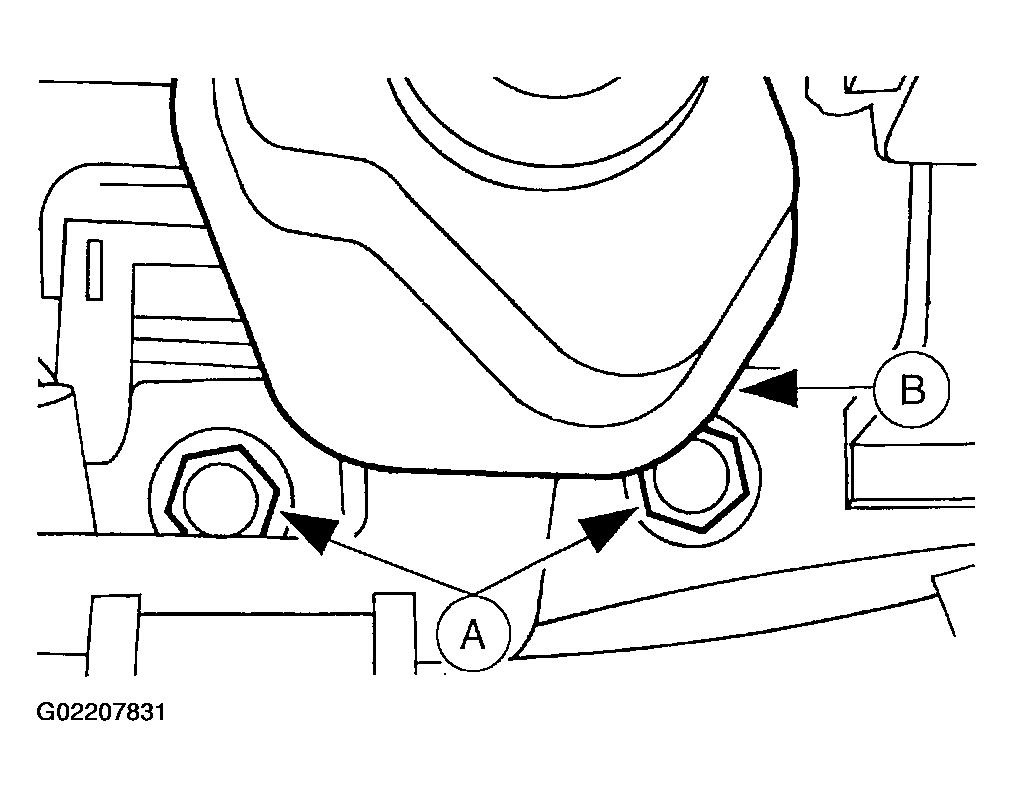

    Fig 3: Removing Bolts And Power Steering Pump Reservoir
    G02207831Courtesy of FORD MOTOR CO.
