Disassembly And Assembly Of Subassemblies: Accumulators: Notes

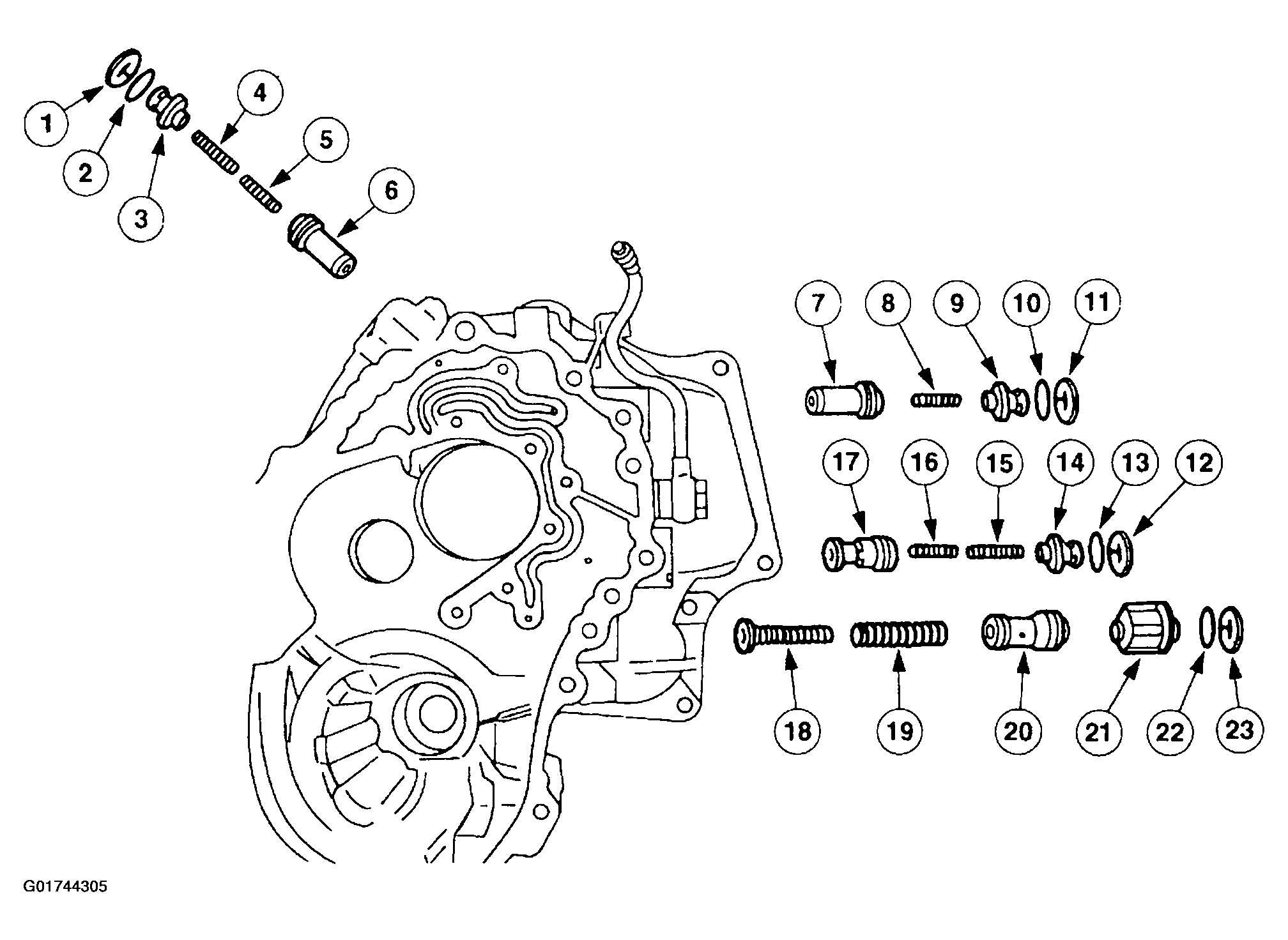

Fig 1: Identifying Accumulators Components
G01744305Courtesy of FORD MOTOR CO.

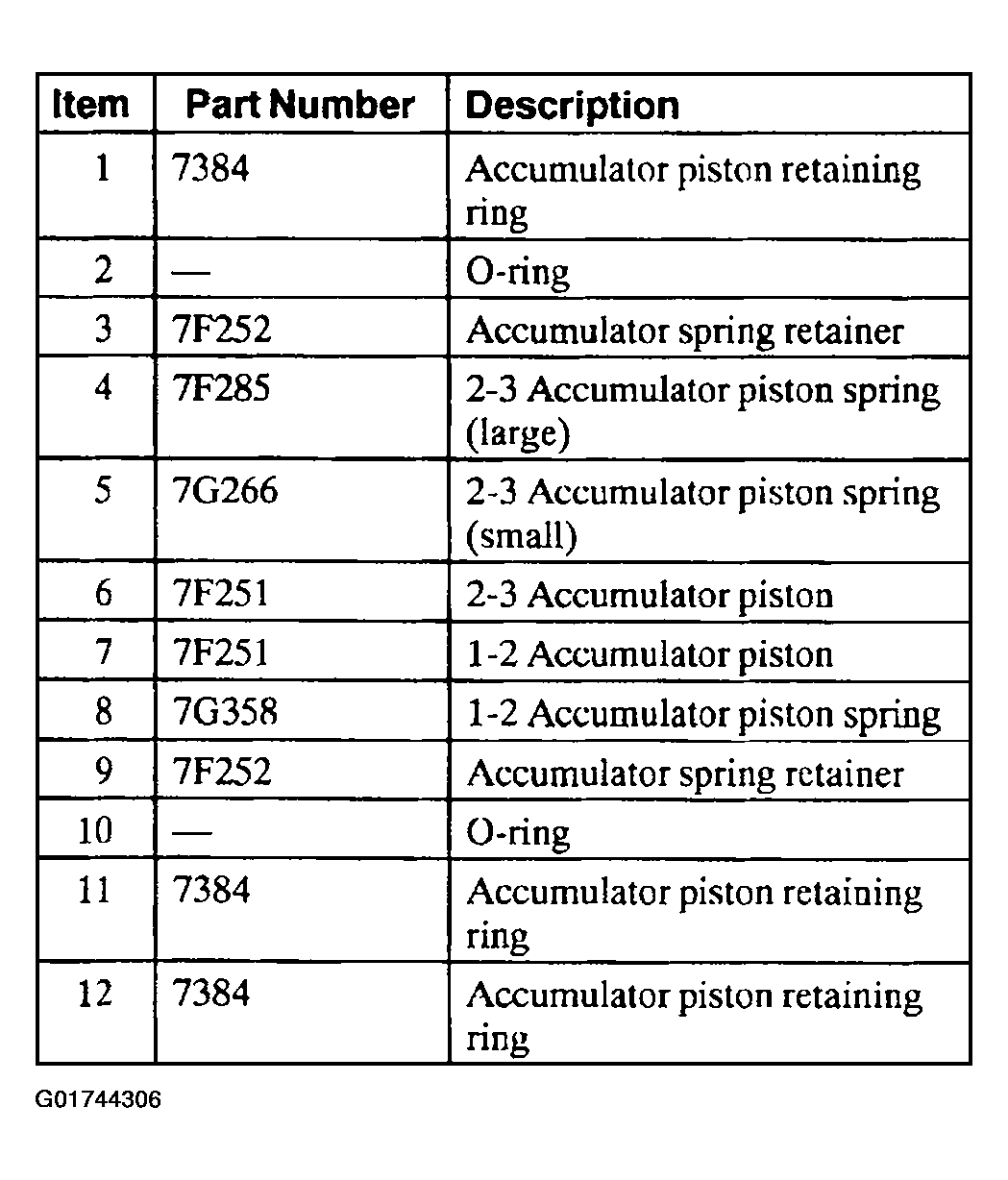

Fig 2: Accumulators Components Legend (Items 1-12)
G01744306Courtesy of FORD MOTOR CO.

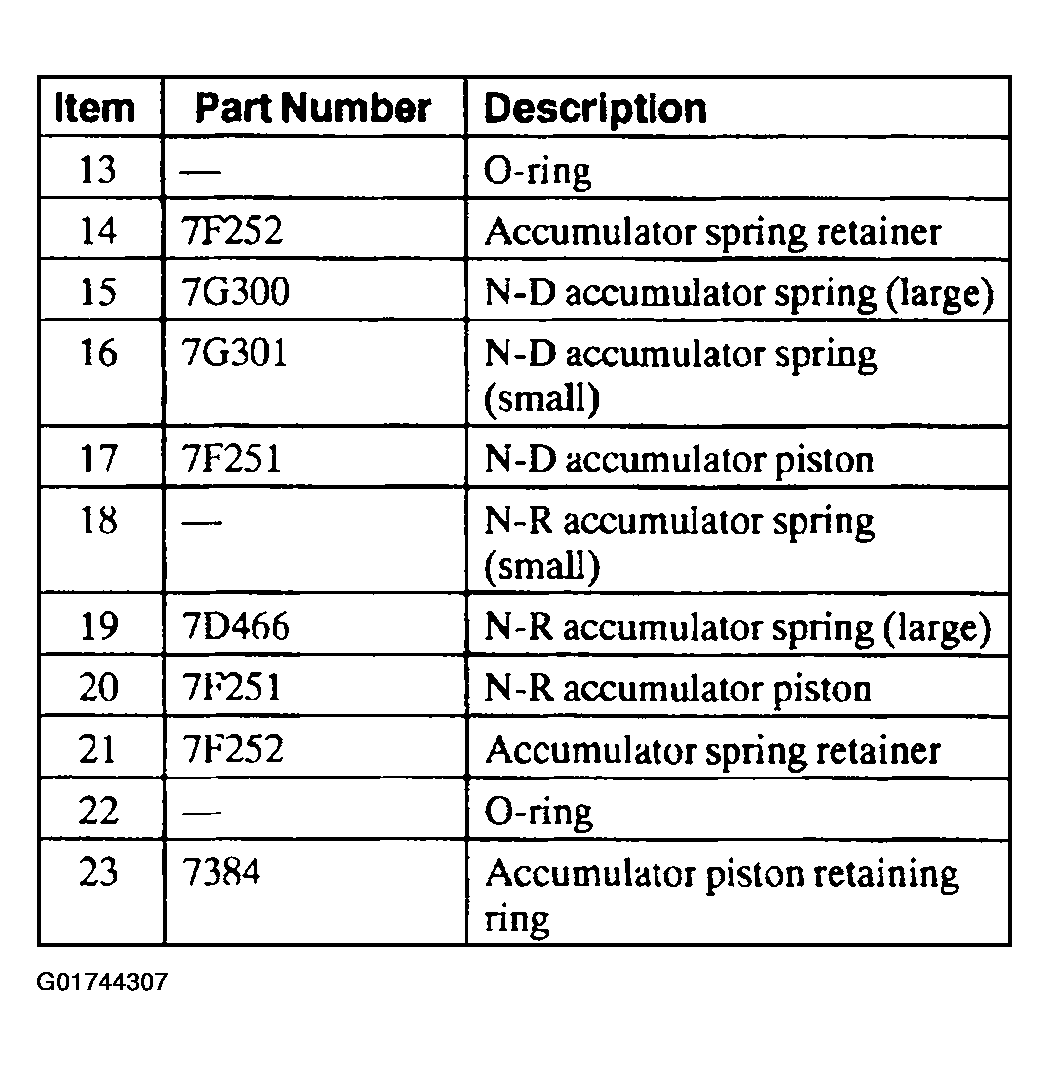

Fig 3: Accumulators Components Legend (Items 13-23)
G01744307Courtesy of FORD MOTOR CO.
