Special Tool(s)

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

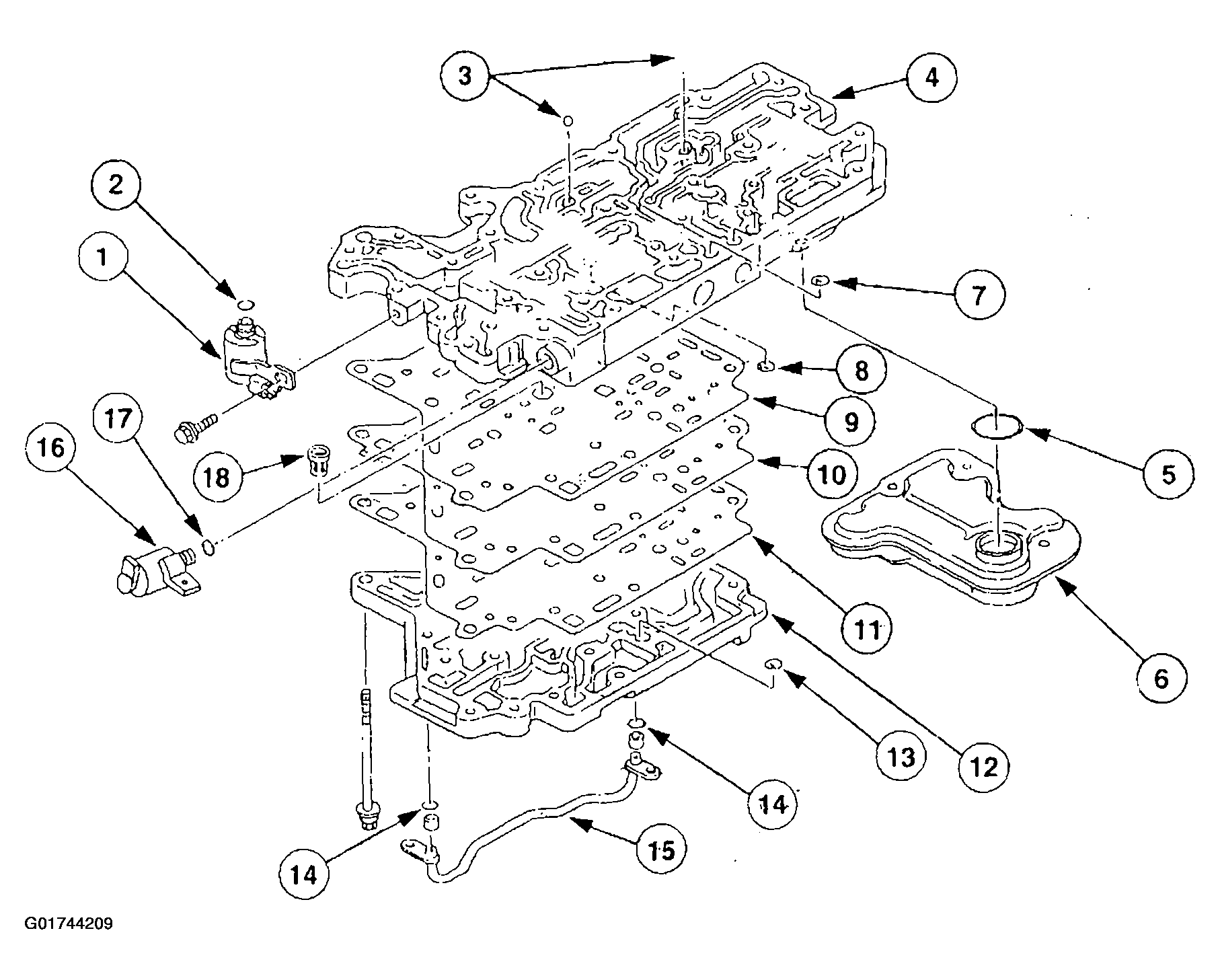

Fig 2: Identifying Premain & Lower Control Valve Bodies Components

Courtesy of FORD MOTOR CO.

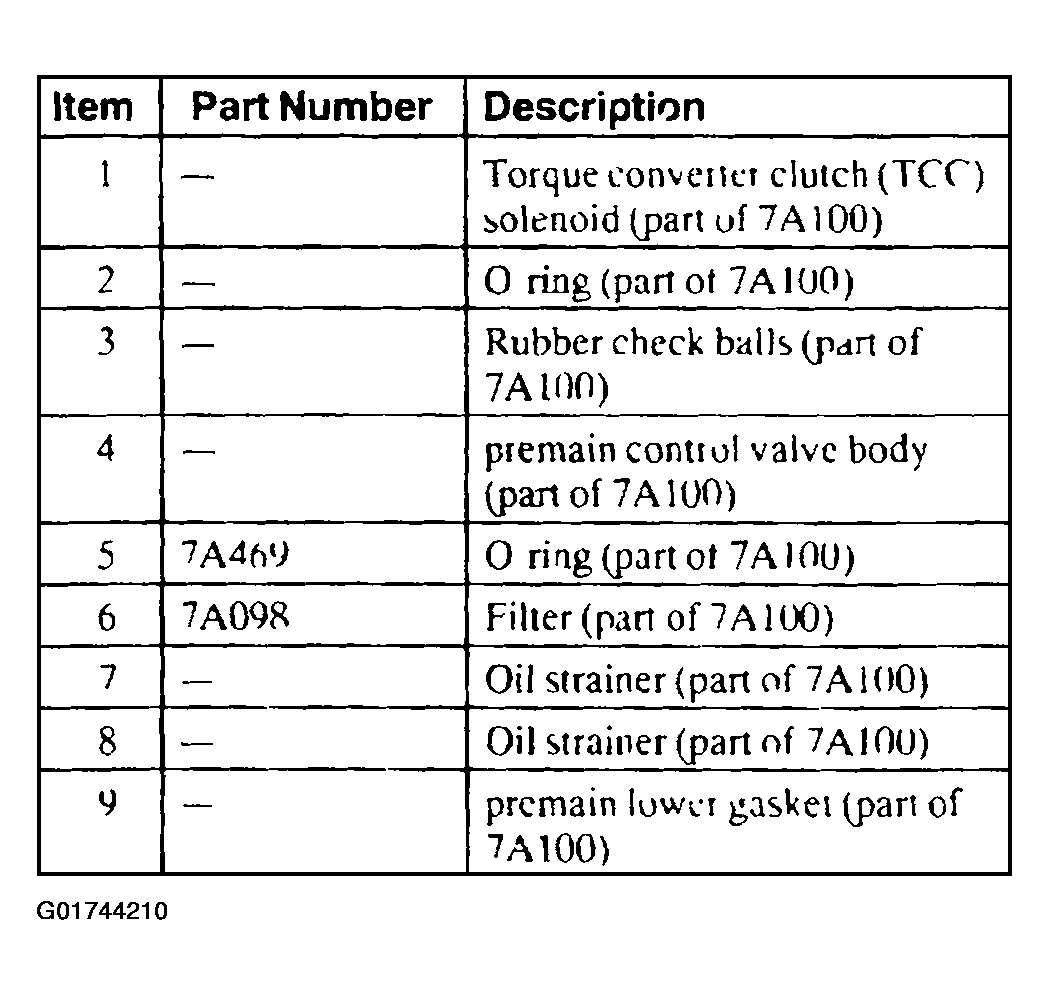

Fig 3: Premain & Lower Control Valve Bodies Legend (Items 1-9)

Courtesy of FORD MOTOR CO.

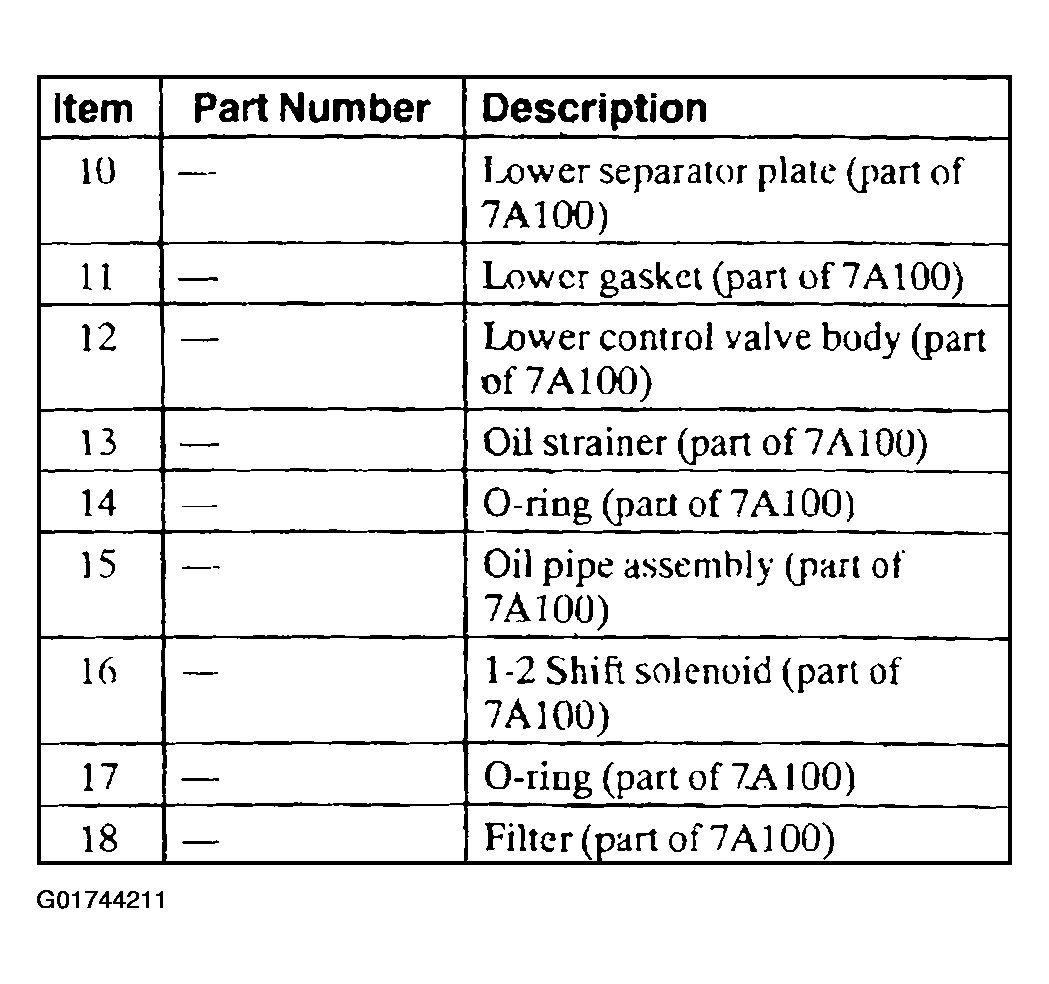

Fig 4: Premain & Lower Control Valve Bodies Legend (Items 10-18)

Courtesy of FORD MOTOR CO.

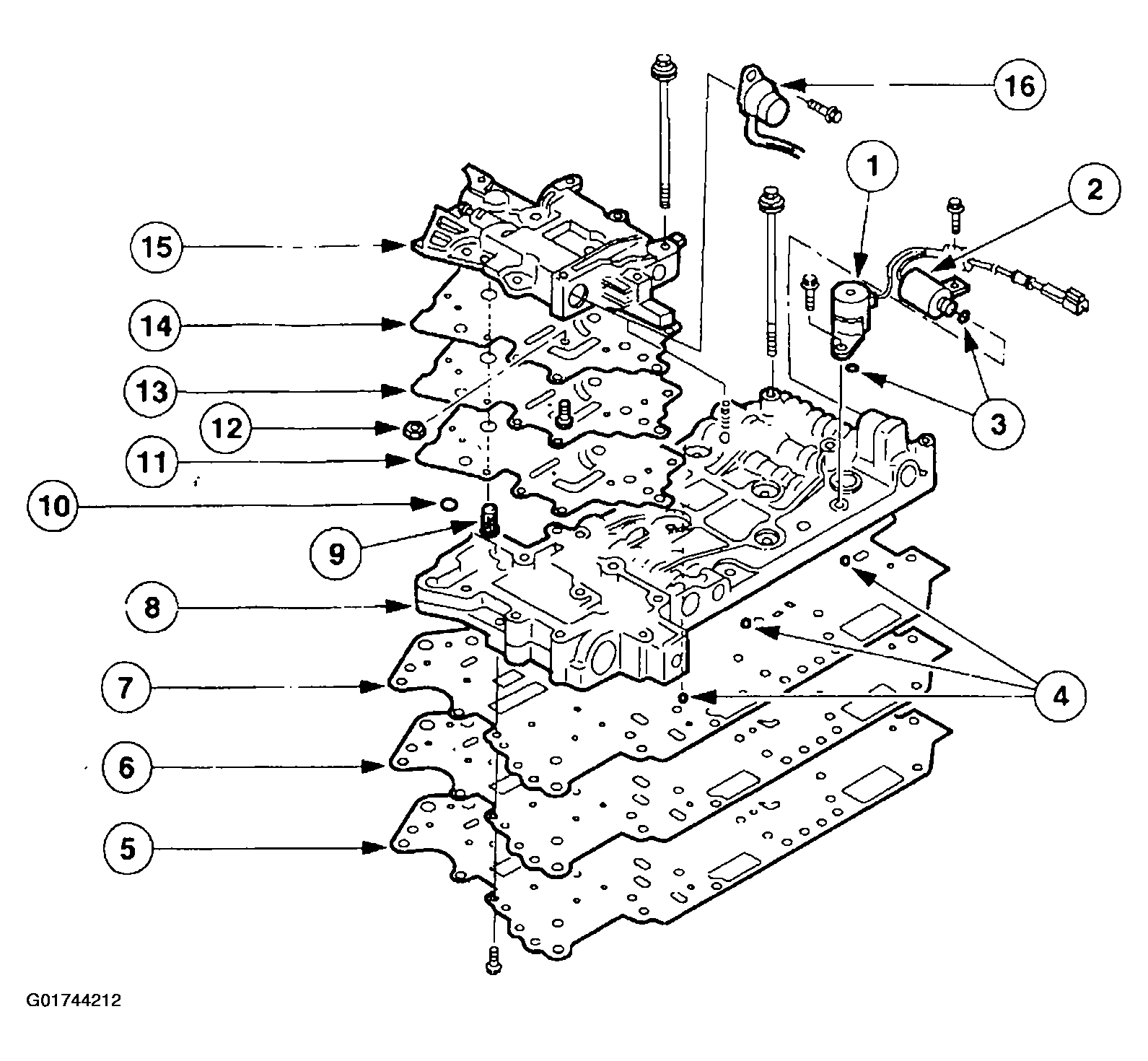

Fig 5: Identifying Upper & Main Control Valve Bodies

Courtesy of FORD MOTOR CO.

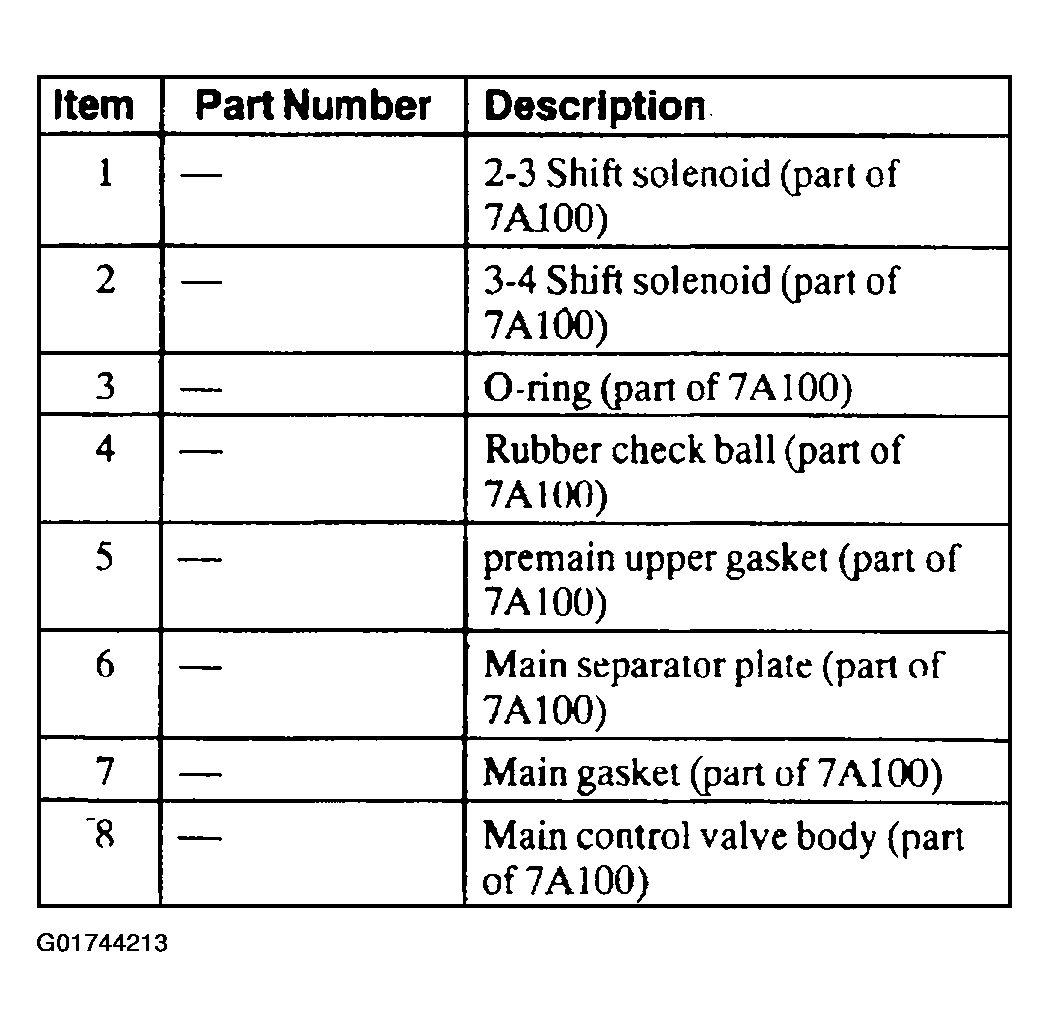

Fig 6: Upper & Main Control Valve Bodies Legend (Items 1-8)

Courtesy of FORD MOTOR CO.

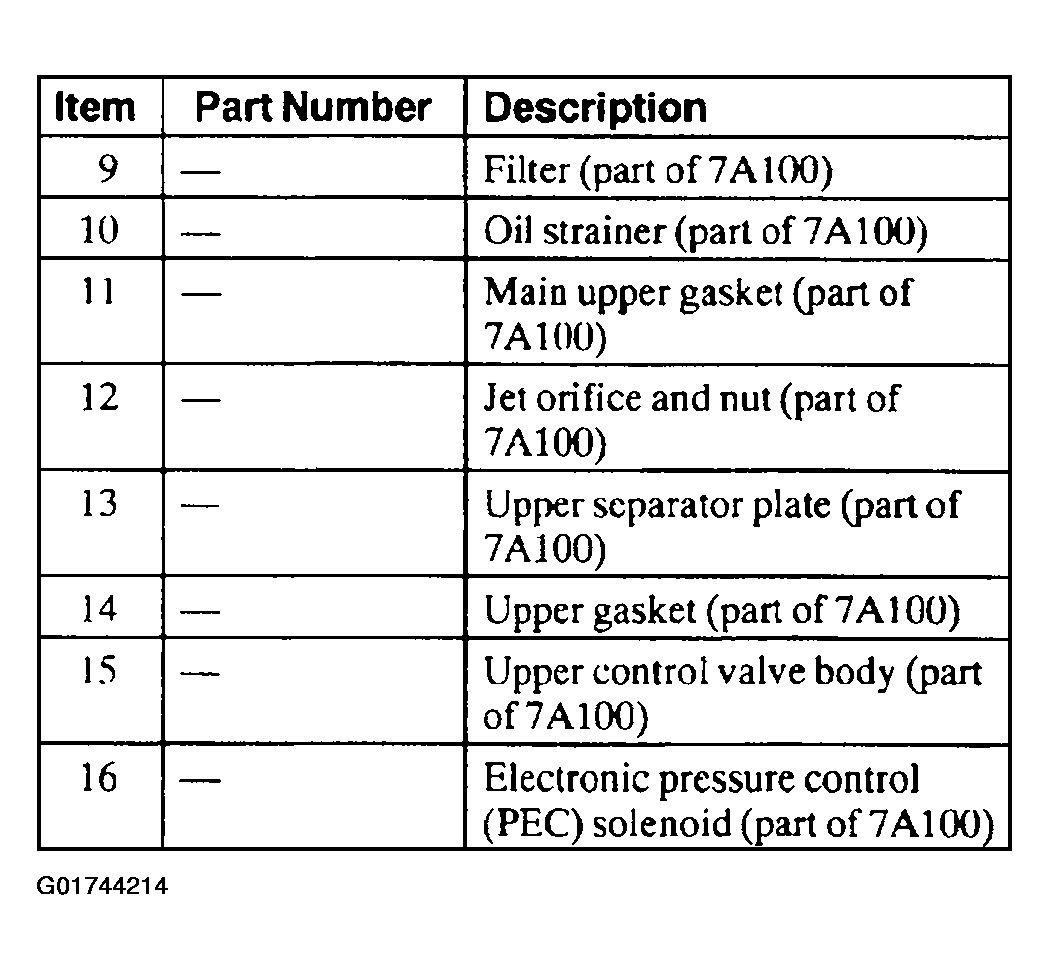

Fig 7: Upper & Main Control Valve Bodies Legend (Items 9-16)

Courtesy of FORD MOTOR CO.

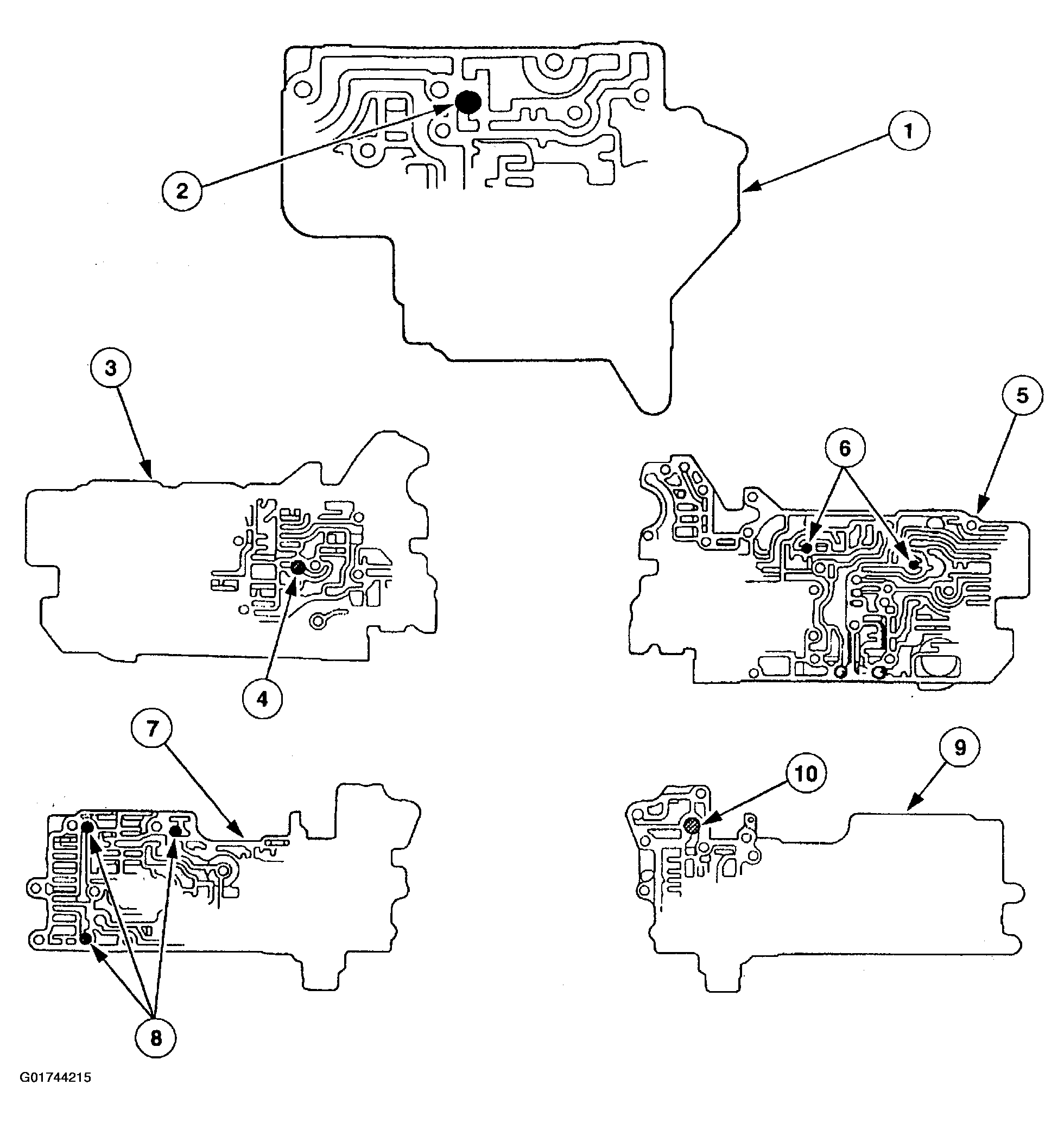

Fig 8: Identifying Rubber Check Ball/Oil Strainer/Oil Filter Installation Positions

Courtesy of FORD MOTOR CO.

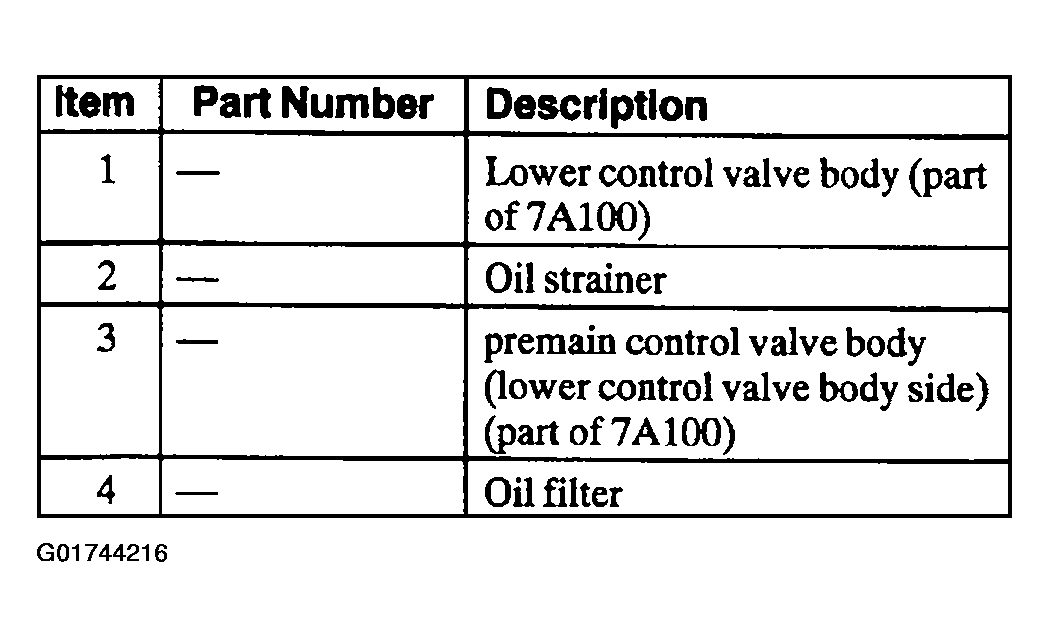

Fig 9: Rubber Check Ball/Oil Strainer/Oil Filter Installation Position Legend (Items 1-4)

Courtesy of FORD MOTOR CO.

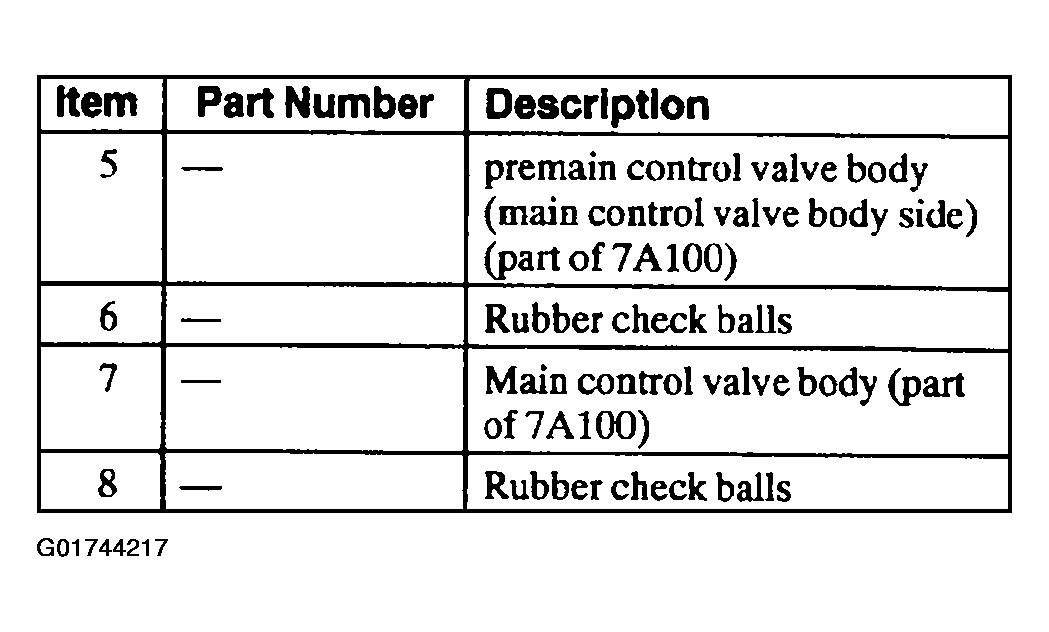

Fig 10: Rubber Check Ball/Oil Strainer/Oil Filter Installation Position Legend (Items 5-8)

Courtesy of FORD MOTOR CO.

Fig 11: Rubber Check Ball/Oil Strainer/Oil Filter Installation Position Legend (Item 9)

Courtesy of FORD MOTOR CO.

Fig 12: Rubber Check Ball/Oil Strainer/Oil Filter Installation Position Legend (Item 10)

Courtesy of FORD MOTOR CO.
