Main Control Valve Body-Upper: Notes

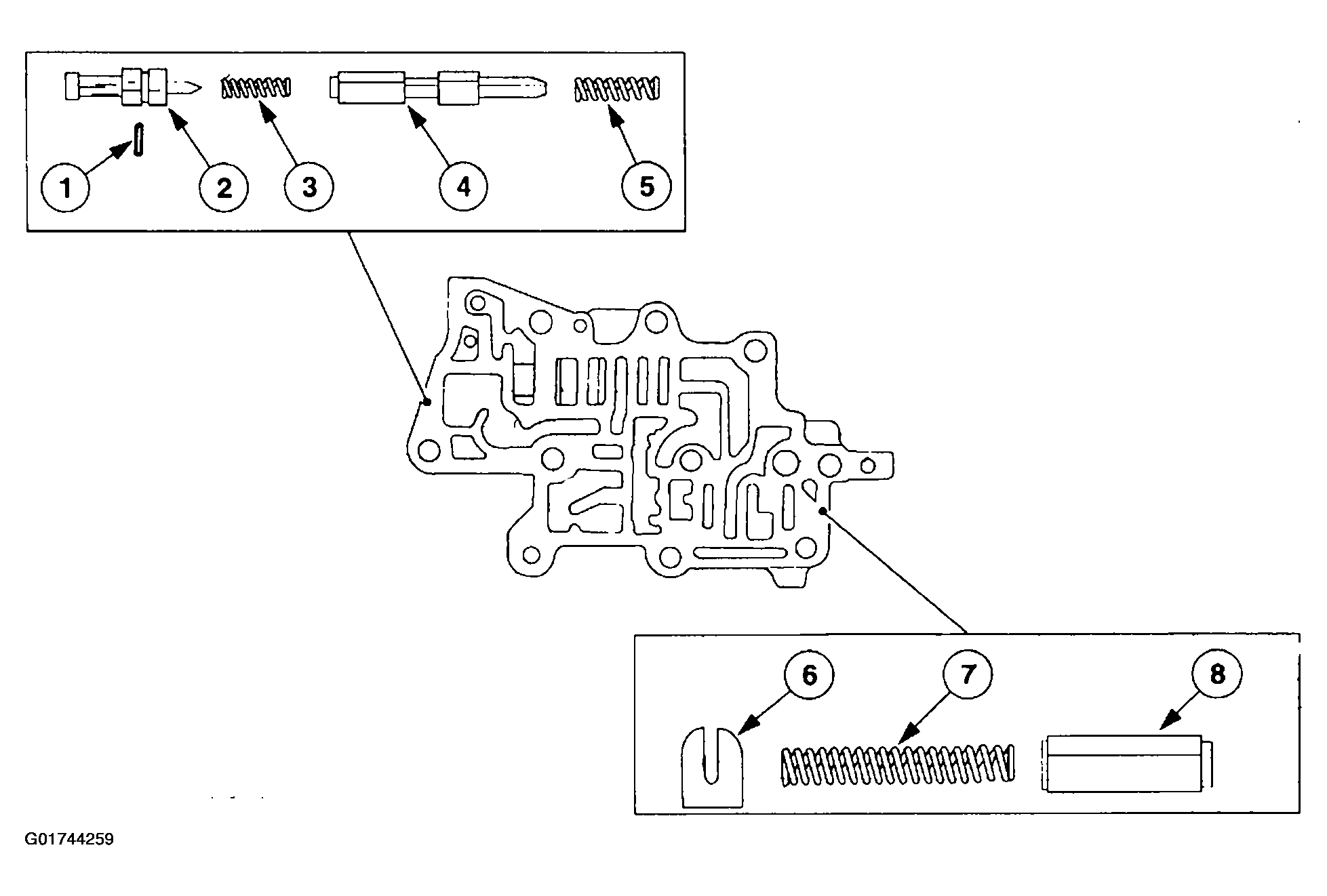

Fig 1: Identifying Upper Main Control Valve Body Components
G01744259Courtesy of FORD MOTOR CO.

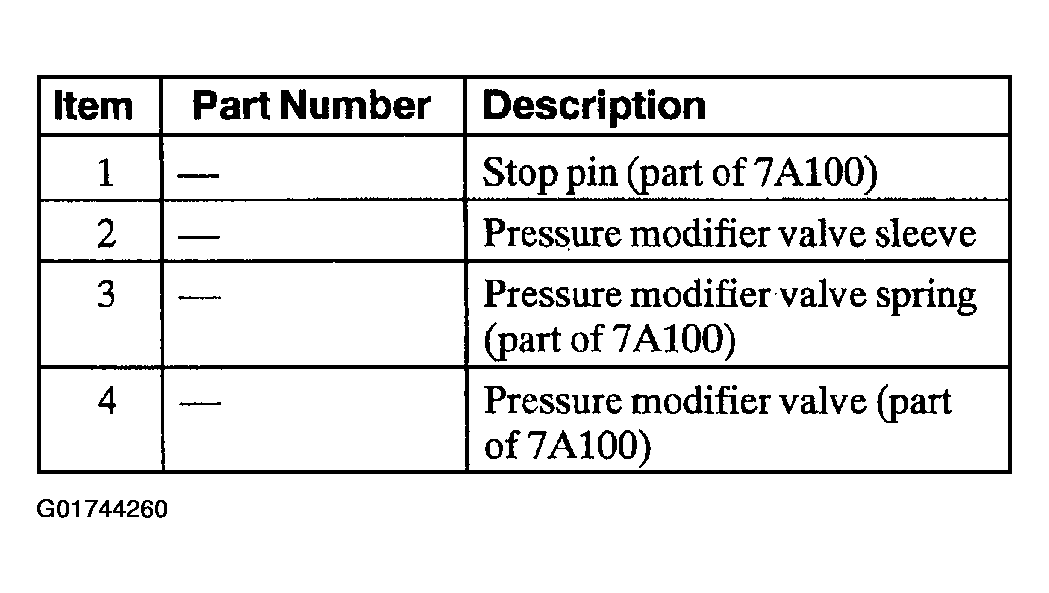

Fig 2: Upper Main Control Valve Body Components Legend (Items 1-4)
G01744260Courtesy of FORD MOTOR CO.

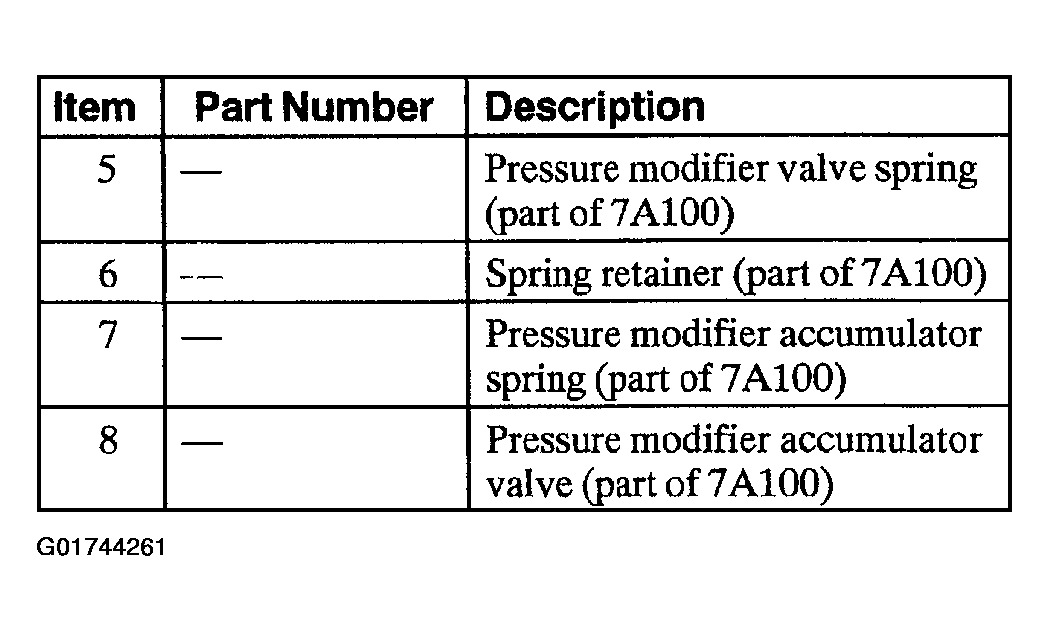

Fig 3: Upper Main Control Valve Body Components Legend (Items 5-8)
G01744261Courtesy of FORD MOTOR CO.
