Torque Converter Stator Support: Disassembly

1. Remove the converter impeller hub seal.

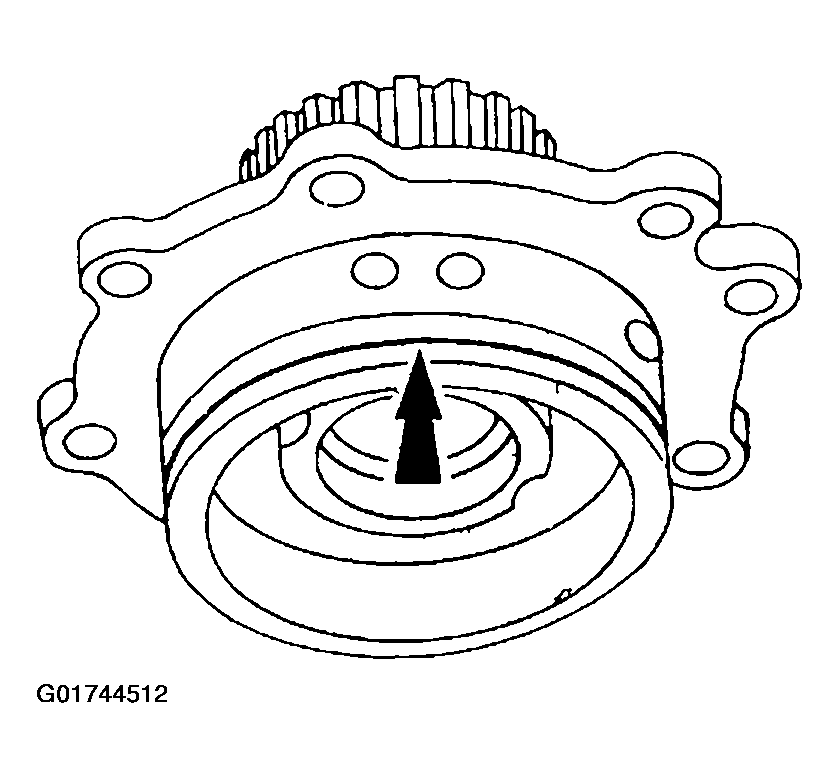

Fig 1: Removing Converter Impeller Hub Seal
Courtesy of FORD MOTOR CO.
2. Remove the bearing outer race.
   1. Use a pin punch and hammer to carefully drive the bearing outer race from the torque converter stator support.

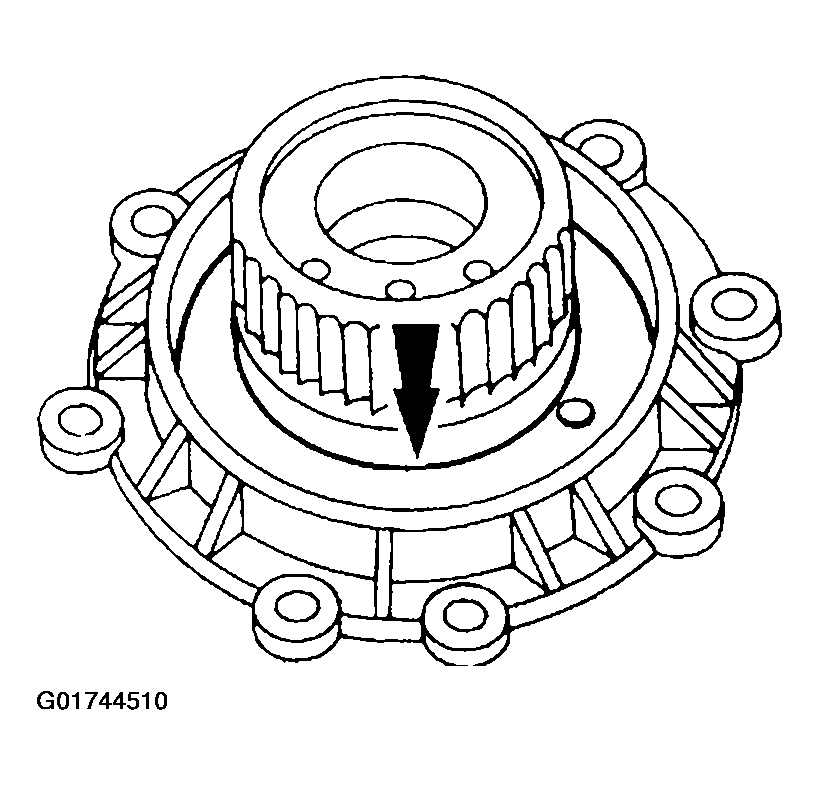

Fig 2: Removing Bearing Outer Race
Courtesy of FORD MOTOR CO.
3. Remove the stator support O-ring.

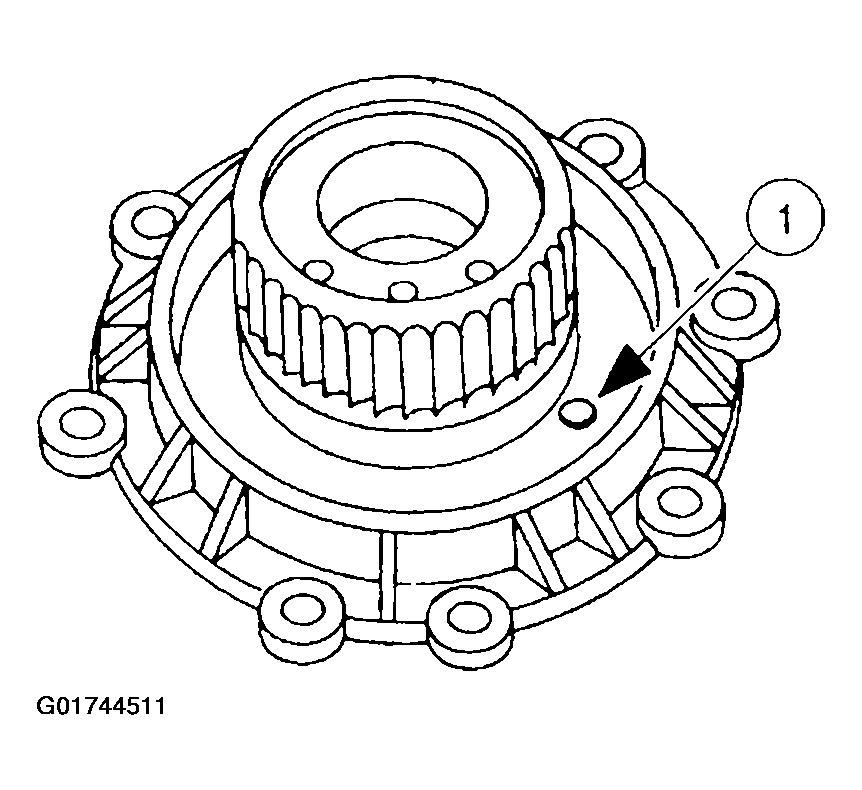

Fig 3: Removing Stator Support O-Ring

Courtesy of FORD MOTOR CO.
