Component Locations

For component locations, see COMPONENT LOCATIONS table and Fig 1 and Fig 2

COMPONENT LOCATIONS

Component	Location
Brake Pedal Position Switch	Mounted Above Brake Pedal
Electronic Pressure Control Solenoid	Mounted To Valve Body
Engine Coolant Temperature Sensor	Mounted In Thermostat Housing
Intake Air Temperature Sensor	Mounted In Air Inlet Hose
Mass Air Flow Sensor	Mounted In Air Cleaner Housing
Powertrain Control Module	Behind Center Console, Under Instrument Panel
Shift Solenoids (SS1, SS2 & SS3)	Mounted To Valve Body
Throttle Position Sensor	Mounted To Throttle Body
Torque Converter Clutch Solenoid	Mounted To Valve Body
Transmission Fluid Temperature Sensor	Mounted To Valve Body
Transmission Range Sensor	At Manual Shaft Lever
Turbine Shaft Speed Sensor	Mounted To Top Of Transaxle
Vehicle Speed Sensor	Mounted To Transaxle, Near Axle

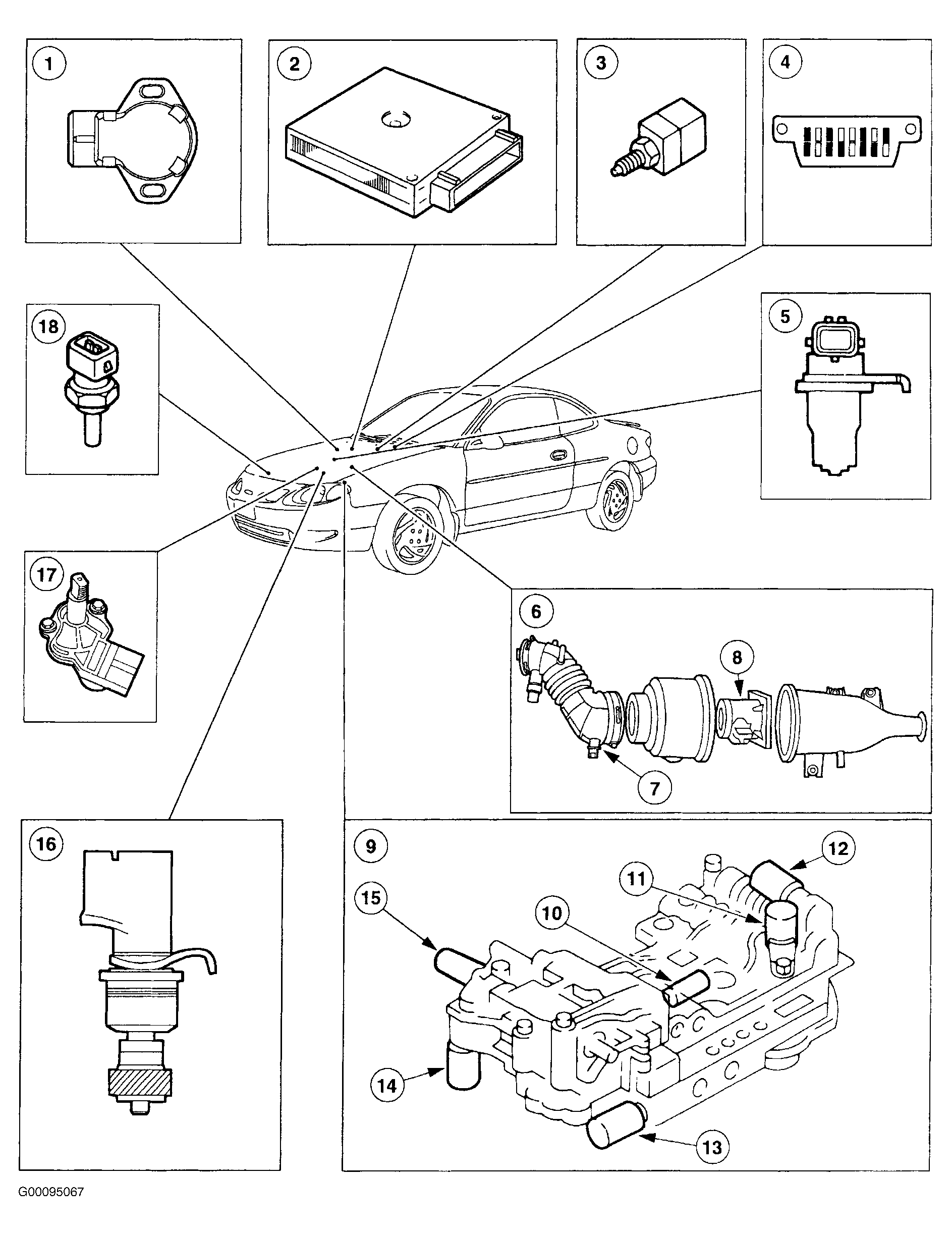

Fig 1: Locating F4E-III Electronic Control Components (1 Of 2)

Courtesy of FORD MOTOR CO.

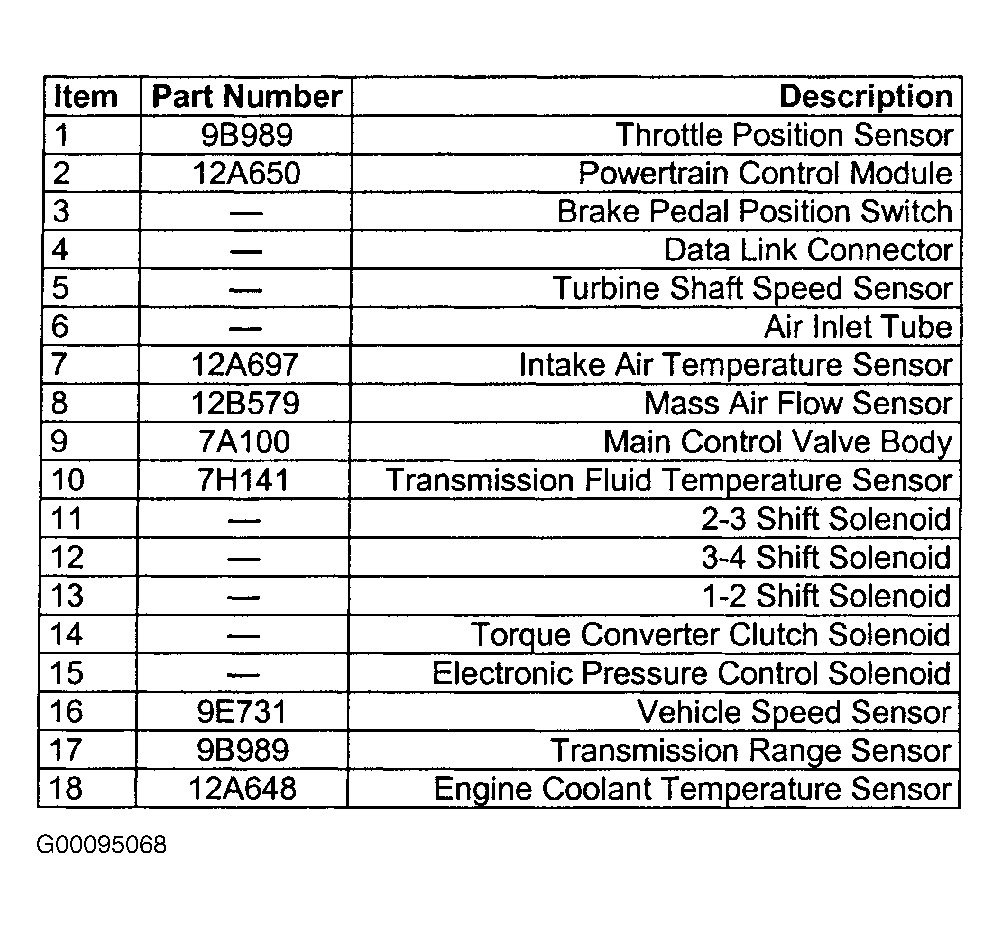

Fig 2: Locating F4E-III Electronic Control Components (2 Of 2)

Courtesy of FORD MOTOR CO.
