Pinpoint Test F: DTCs C1145, C1155 - Front Anti-Lock Brake Sensor - Static

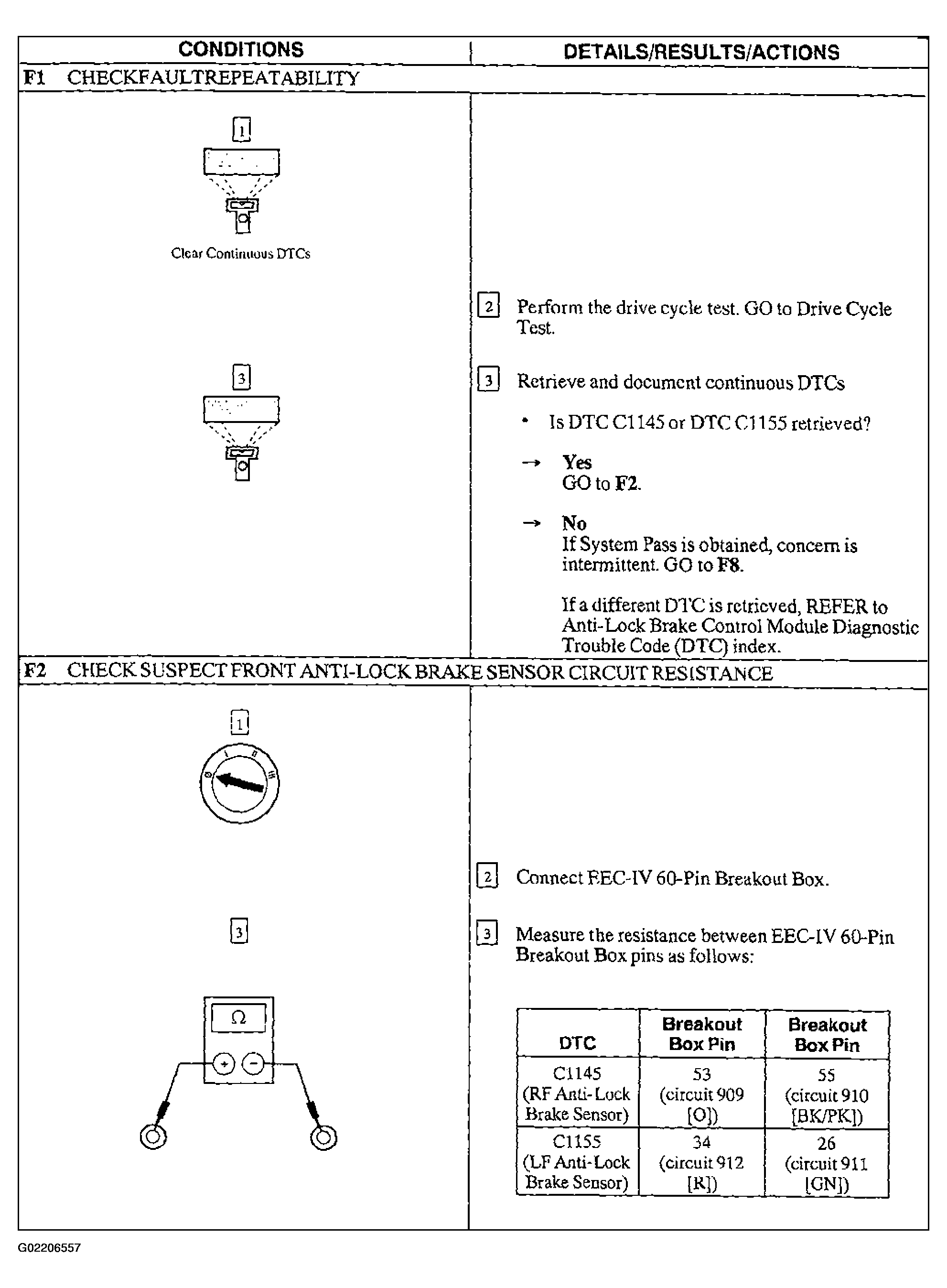

Fig 1: Pinpoint Test F: DTCs C1145, C1155 - Front Anti-Lock Brake Sensor - Static (Steps F1 & F2)

Courtesy of FORD MOTOR CO.

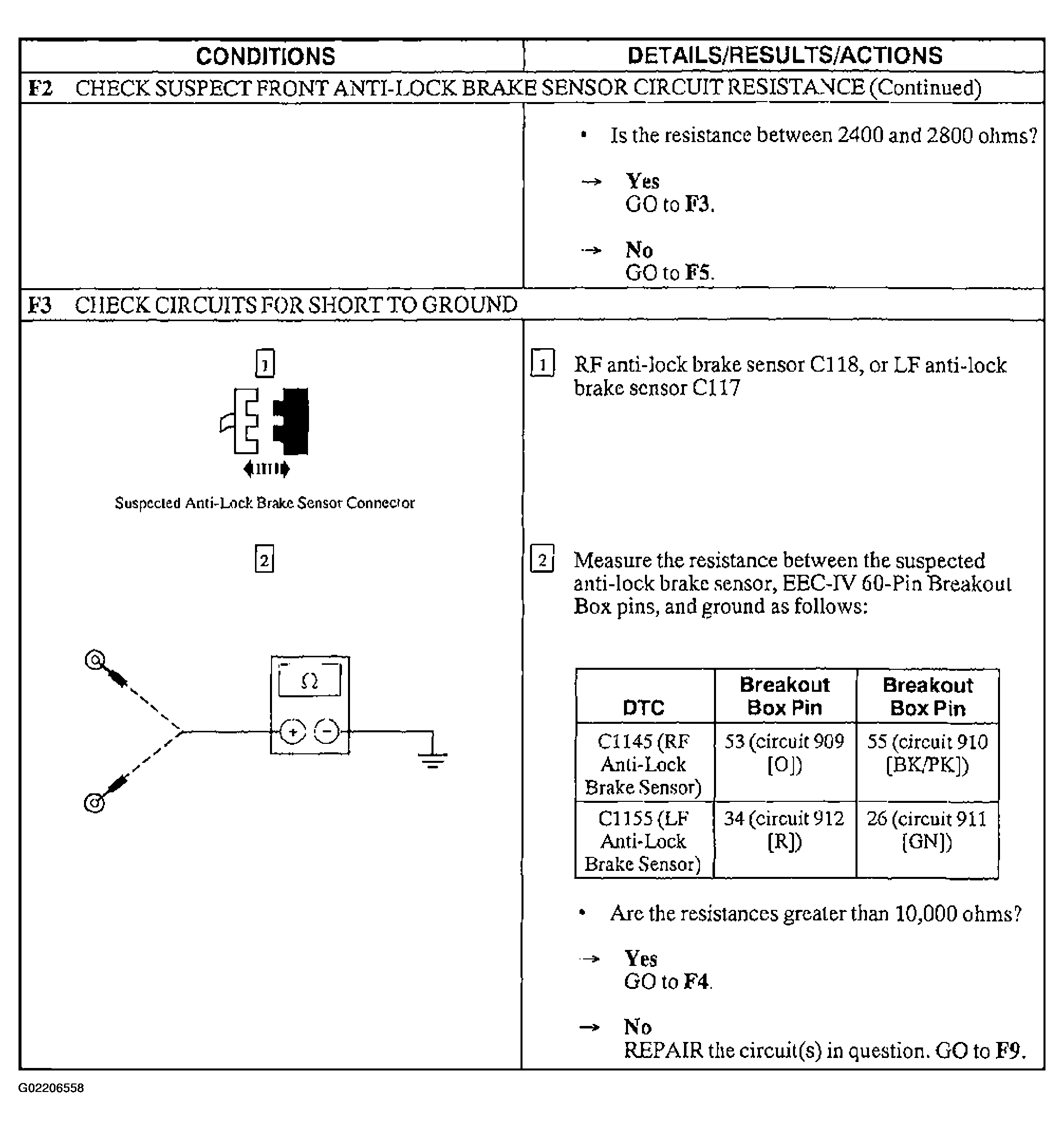

Fig 2: Pinpoint Test F: DTCs C1145, C1155 - Front Anti-Lock Brake Sensor - Static (Steps F2 Cont & F3)

Courtesy of FORD MOTOR CO.

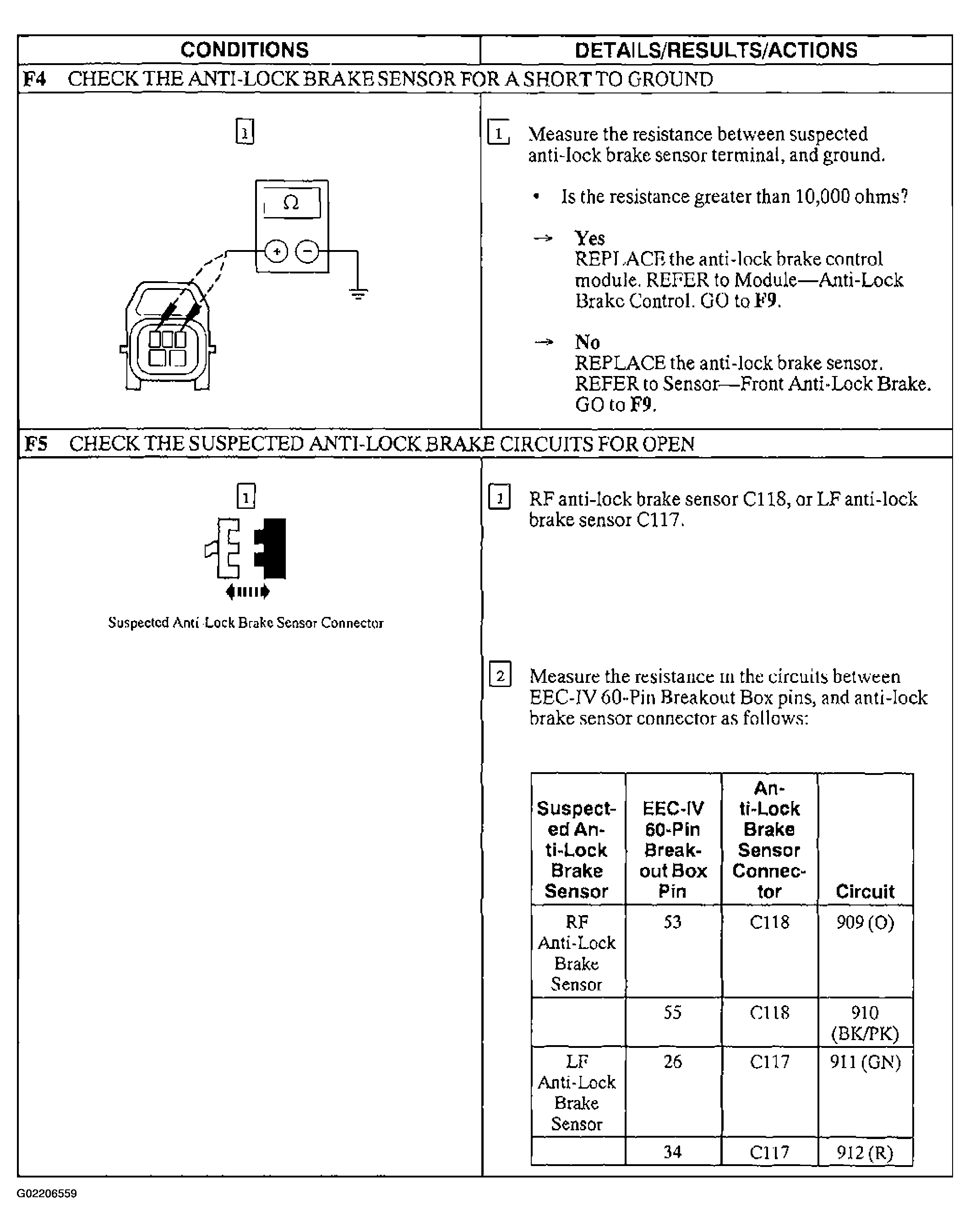

Fig 3: Pinpoint Test F: DTCs C1145, C1155 - Front Anti-Lock Brake Sensor - Static (Steps F4 & F5)

Courtesy of FORD MOTOR CO.

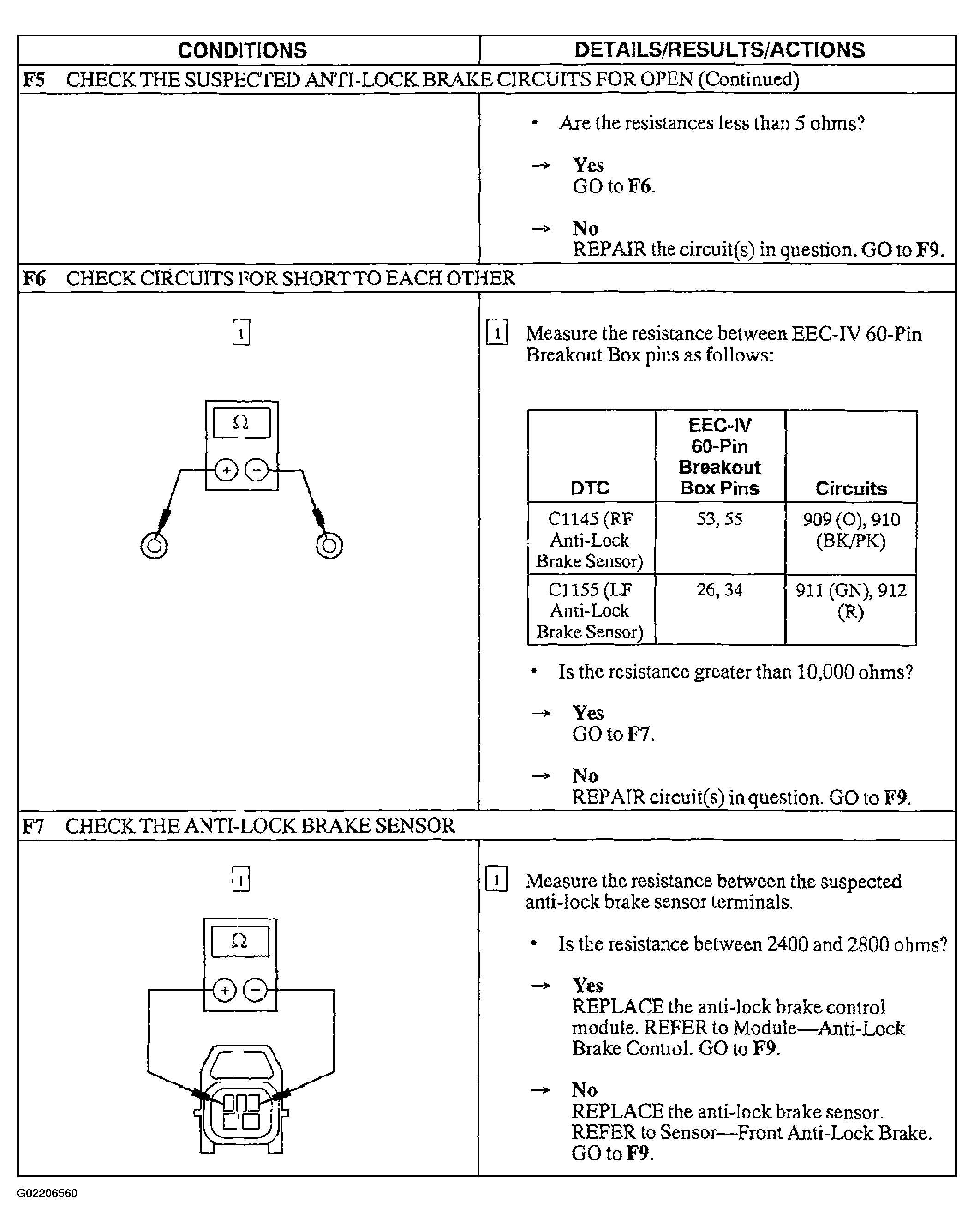

Fig 4: Pinpoint Test F: DTCs C1145, C1155 - Front Anti-Lock Brake Sensor - Static (Steps F5 Cont To F7)

Courtesy of FORD MOTOR CO.

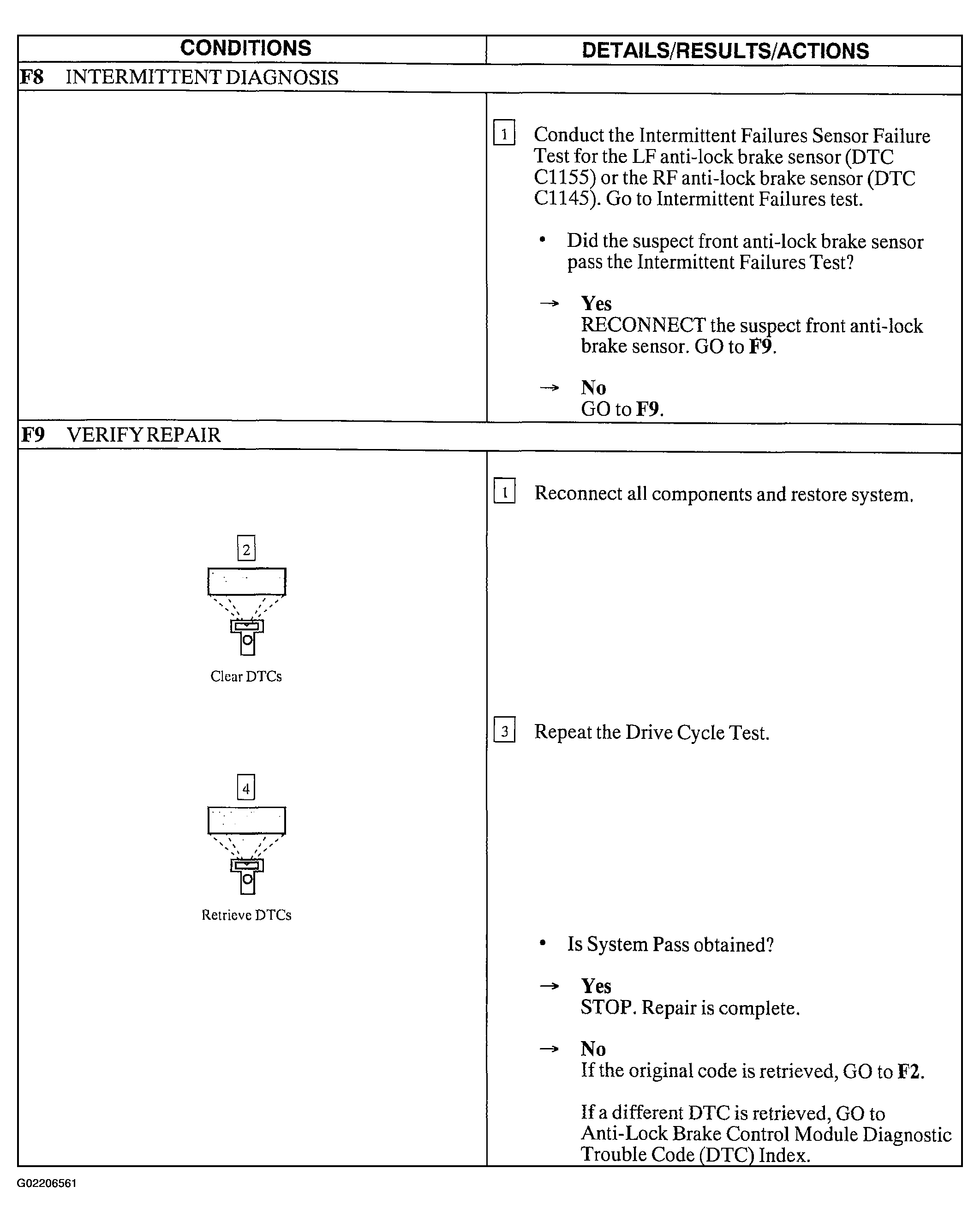

Fig 5: Pinpoint Test F: DTCs C1145, C1155 - Front Anti-Lock Brake Sensor - Static (Steps F8 & F9)

Courtesy of FORD MOTOR CO.
