Brake Pedal Free Play Adjustment

Adjust the brake pedal free play.
1. Loosen the lock nut.
2. Turn the adjustment rod.

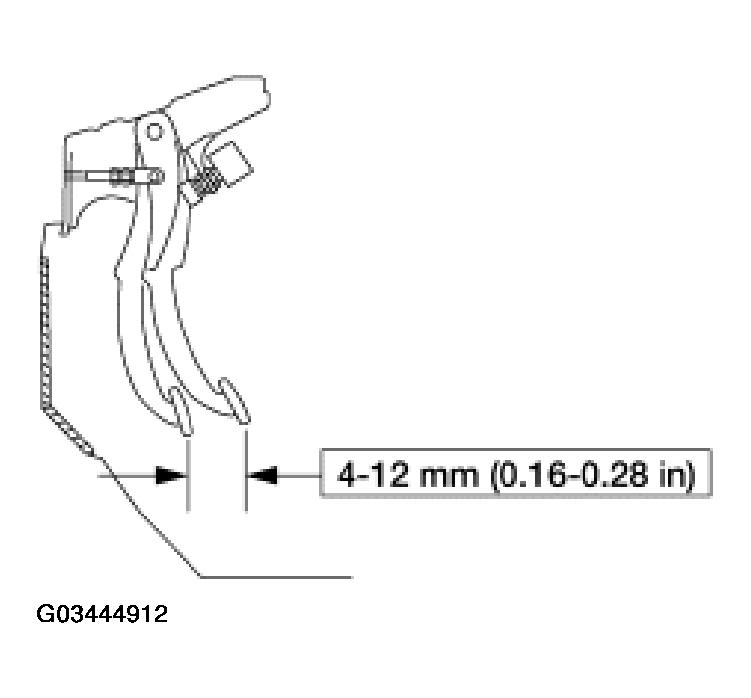

  Fig 1: Adjusting Brake Pedal Free Play
  Courtesy of FORD MOTOR CO.
Verify the rear brake light operation and tighten the lock nut.
- If necessary, adjust the brake pedal position (BPP) switch. For additional information, refer to BRAKE PEDAL HEIGHT .

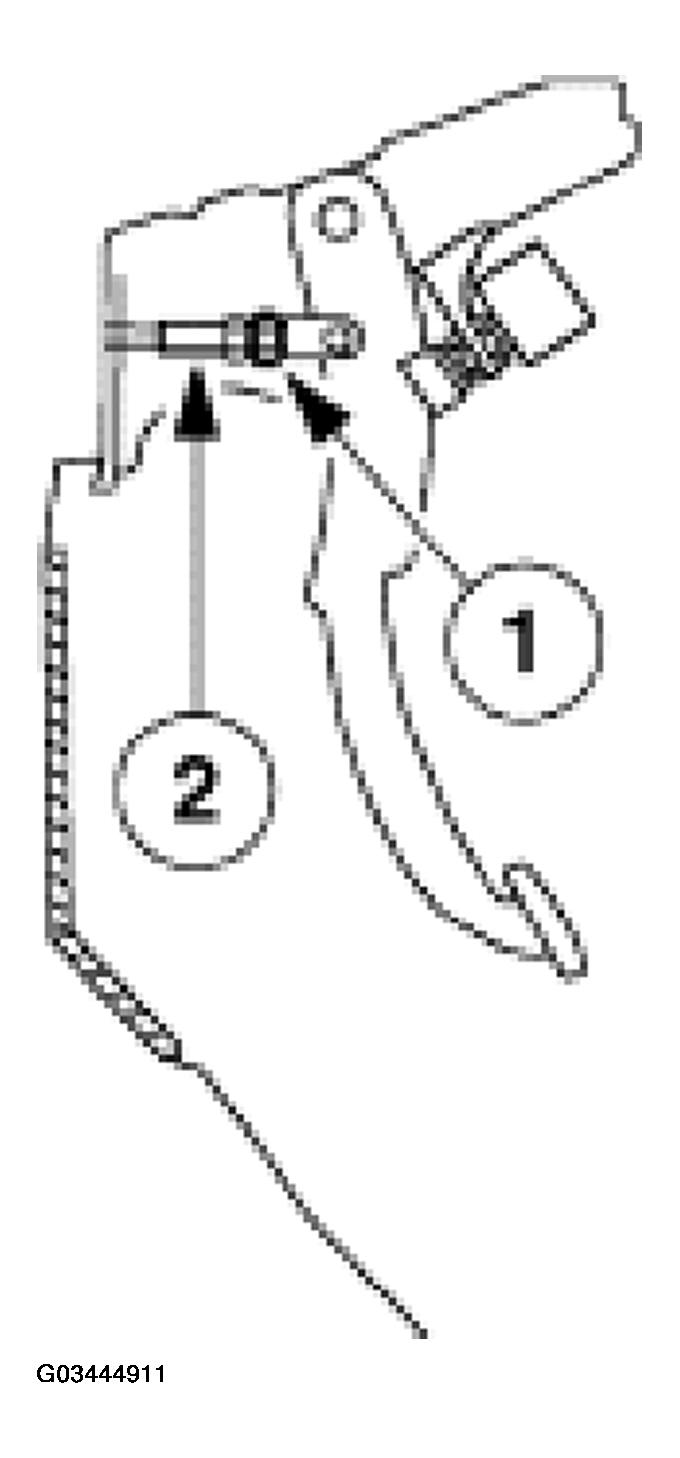

  Fig 2: Tightening Lock Nut
  Courtesy of FORD MOTOR CO.
