Induction System: Installation

WARNING: This page is about a different car, the 2002 Ford Escort. However, it is still accessible from the selected car via links, so may be relevant.

Install the IMRC actuator, if necessary.

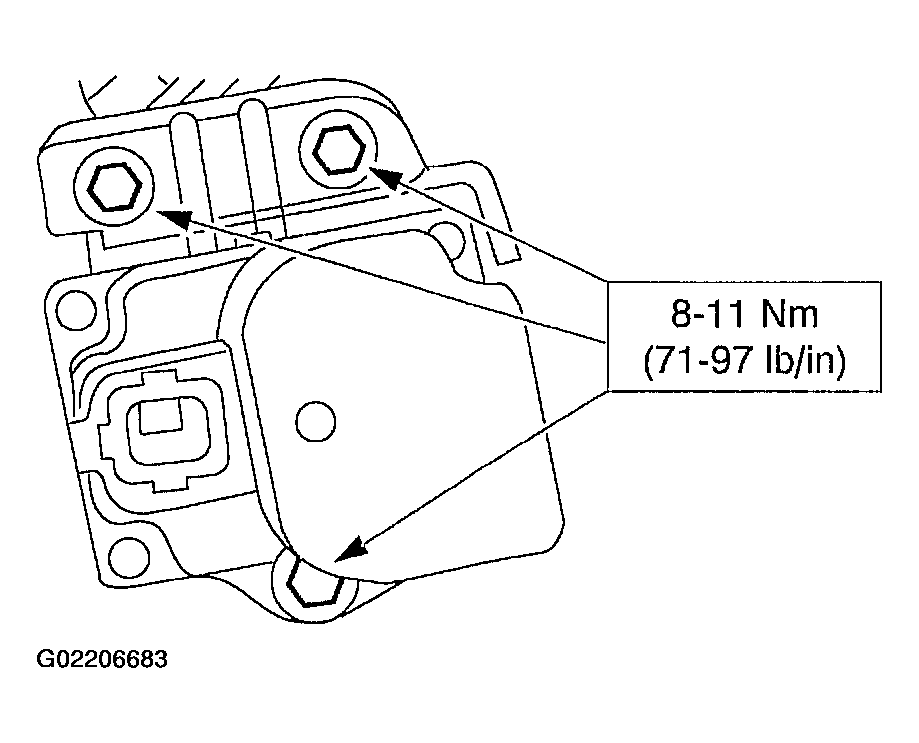

Fig 1: Installing IMRC Actuator
Courtesy of FORD MOTOR CO.
Install the fuel injection supply manifold, if necessary. .
Install the intake manifold runner control (IMRC).

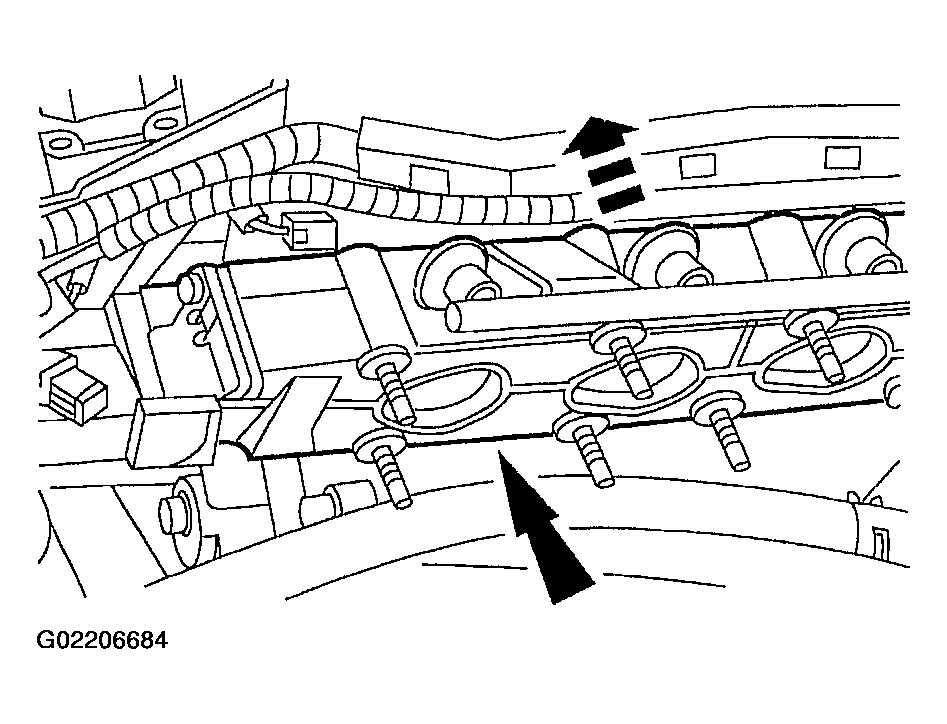

Fig 2: Installing Intake Manifold Runner Control
Courtesy of FORD MOTOR CO.
Connect the four fuel injector electrical connectors.

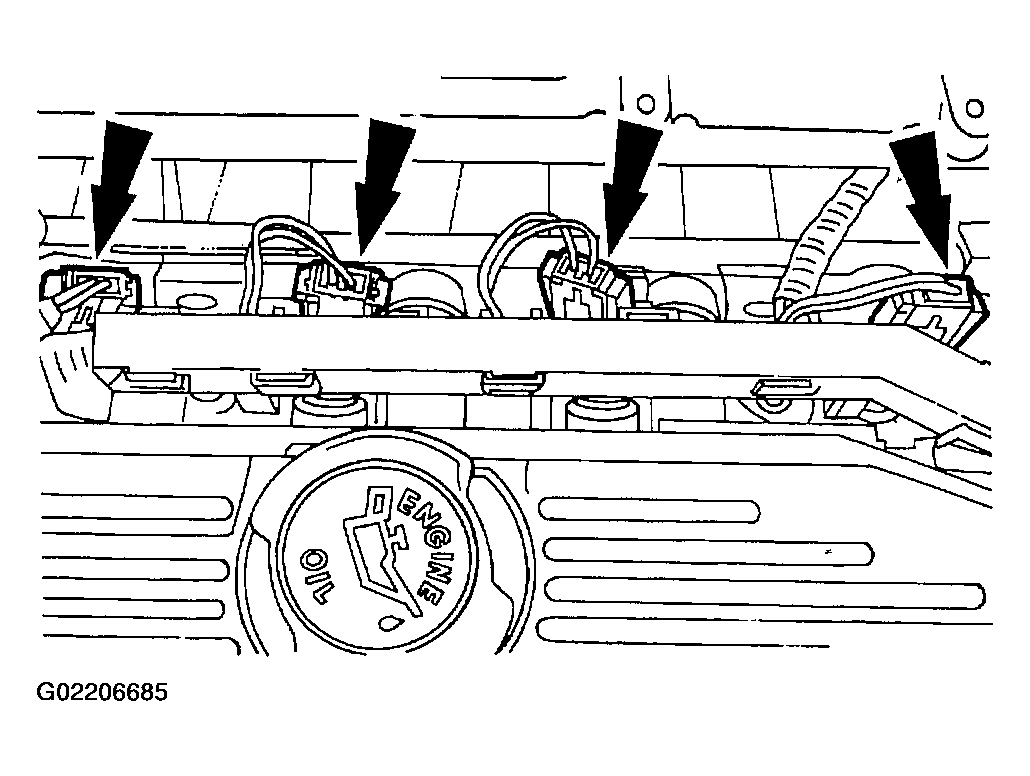

Fig 3: Connecting Fuel Injector Electrical Connectors
Courtesy of FORD MOTOR CO.
Install the intake manifold. For additional information, refer to INTAKE MANIFOLD .
Connect the IMRC actuator electrical connector.

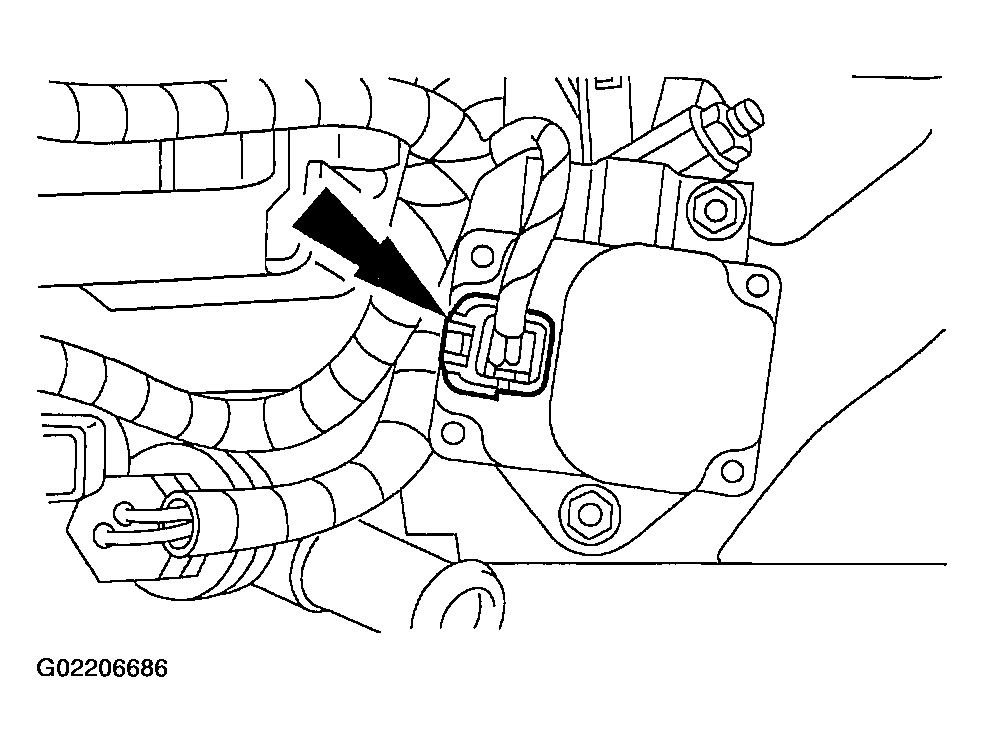

Fig 4: Connecting IMRC Actuator Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the fuel supply line to the fuel injection supply manifold.

Fig 5: Connecting Fuel Supply Line To Fuel Injection Supply Manifold
Courtesy of FORD MOTOR CO.
