Pump - 2.0L: Installation

  1. Use (A) Power Steering Pump Pulley Replacer to install the (B) power steering pump pulley hub, if necessary.

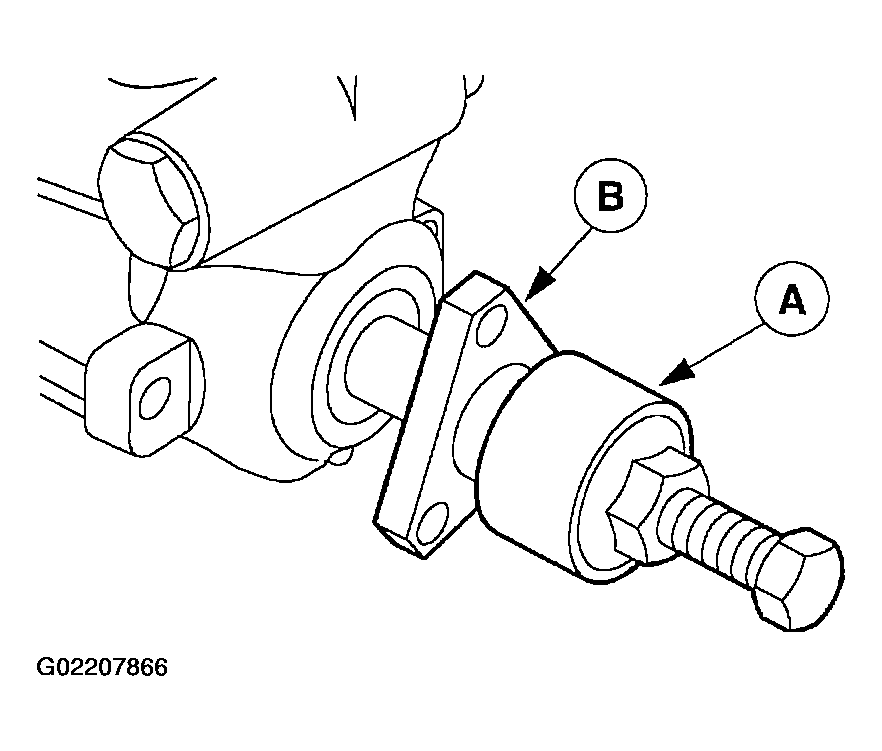

    Fig 1: Installing Power Steering Pump Pulley Hub Using Power Steering Pump Pulley Replacer
    G02207866Courtesy of FORD MOTOR CO.
  2. Install the power steering pump.
    1. Position the power steering pump.
    2. Install the bolts.

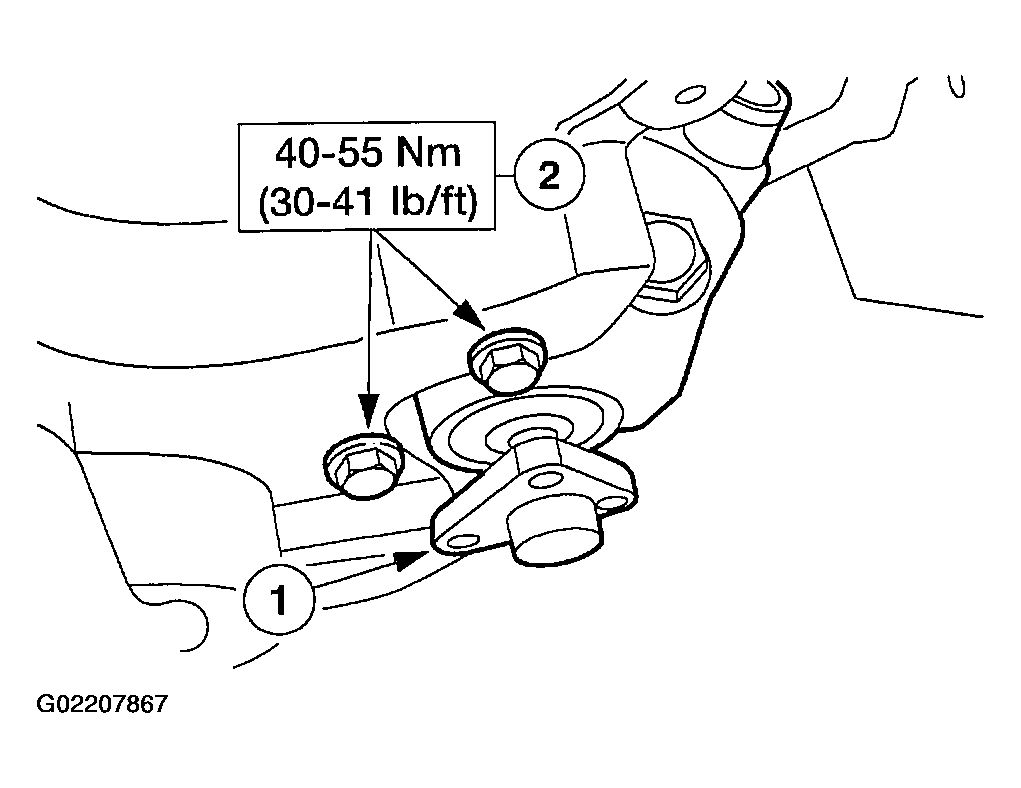

    Fig 2: Installing Power Steering Pump
    G02207867Courtesy of FORD MOTOR CO.
  3. Connect the power steering reservoir pump hose (3691) and tighten the clamp.
    Fig 3: Connecting Power Steering Reservoir Pump Hose
    G02207868Courtesy of FORD MOTOR CO.
  4. Raise and support the vehicle.
    5. NOTE: Install a new teflon seal 388898-S on the power steering pressure hose fitting before connecting the hose.

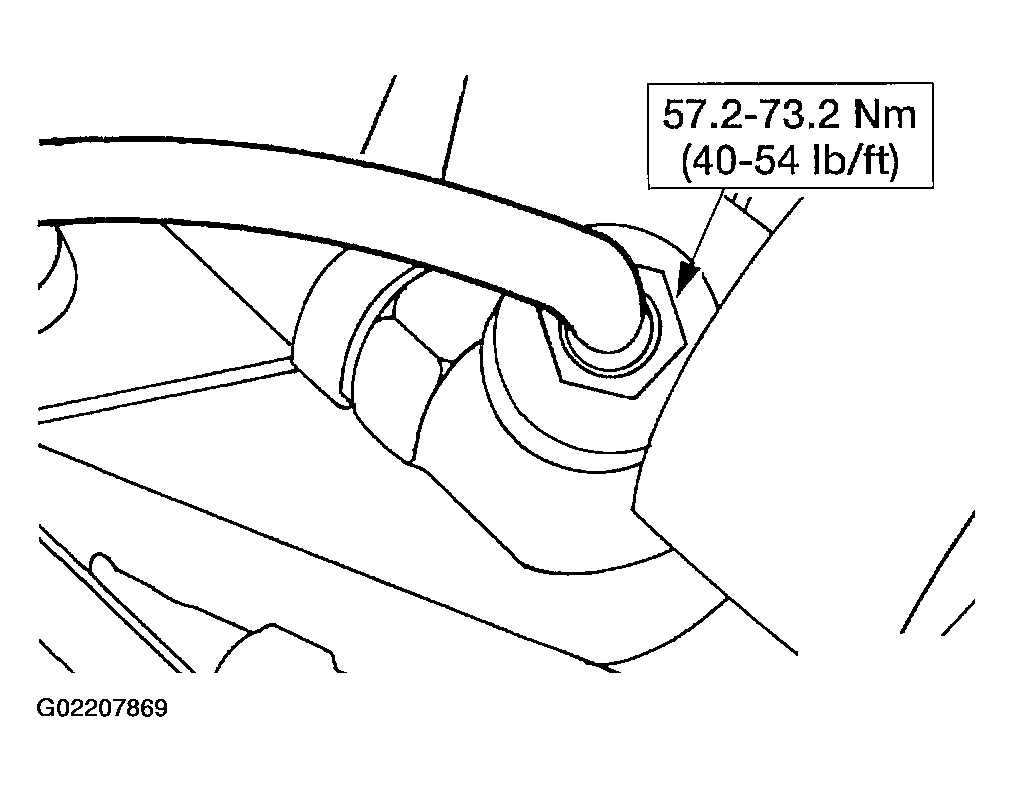

    Fig 4: Connecting Power Steering Pressure Hose
    G02207869Courtesy of FORD MOTOR CO.
  5. Connect the power steering pressure hose.
  6. Install the RH lower splash shield.

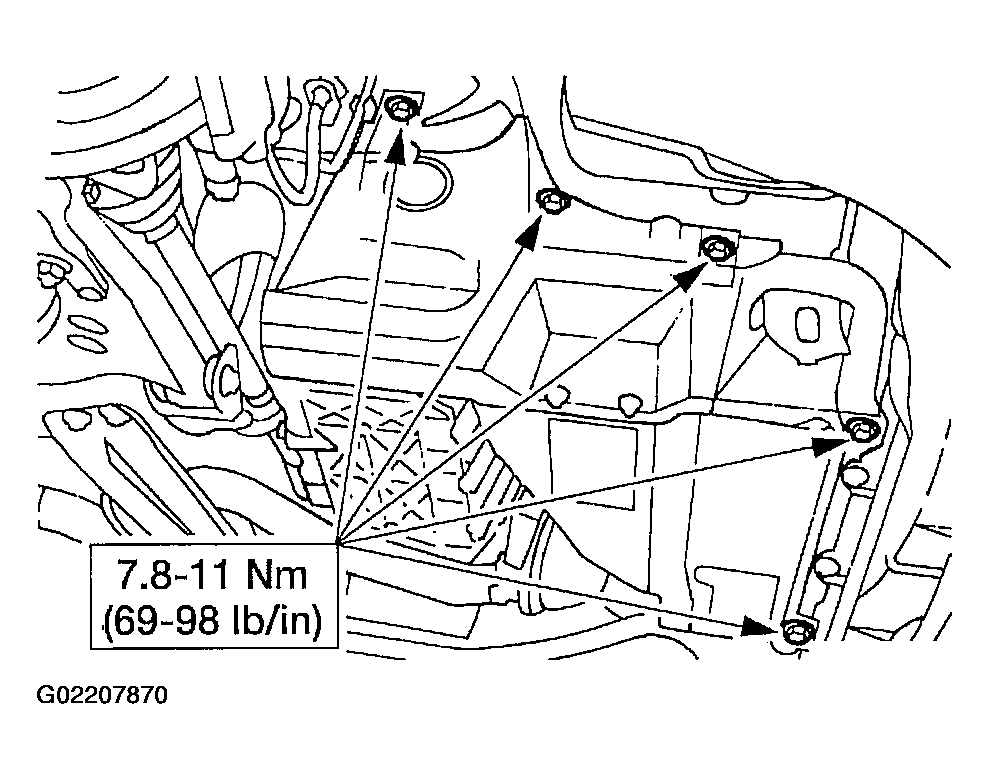

    Fig 5: Installing RH Lower Splash Shield
    G02207870Courtesy of FORD MOTOR CO.
  7. Lower the vehicle.
  8. Install the power steering pump pulley.
  9. Install the power steering pump reservoir.
  10. Fill the power steering system; refer to STEERING SYSTEM-GENERAL INFORMATION .
