Shift Lever: Installation

  1. To install, reverse the removal procedure.

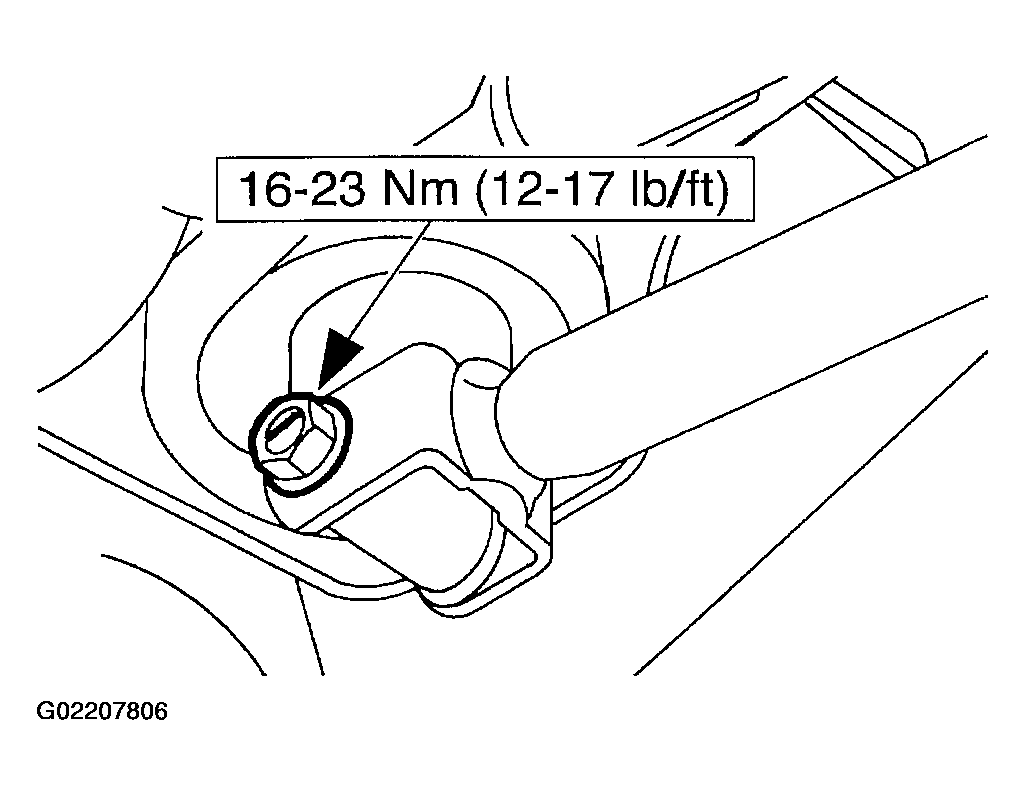

    Fig 1: Installing Transmission Gearshift Lever Clamp Bolt
    G02207806Courtesy of FORD MOTOR CO.
    Fig 2: Installing Heat Shield Rear Bolt
    G02207807Courtesy of FORD MOTOR CO.
    Fig 3: Installing Heat Shield Middle (RH) Bolt
    G02207808Courtesy of FORD MOTOR CO.
    Fig 4: Installing Heat Shield Front (LH) Bolt
    G02207809Courtesy of FORD MOTOR CO.

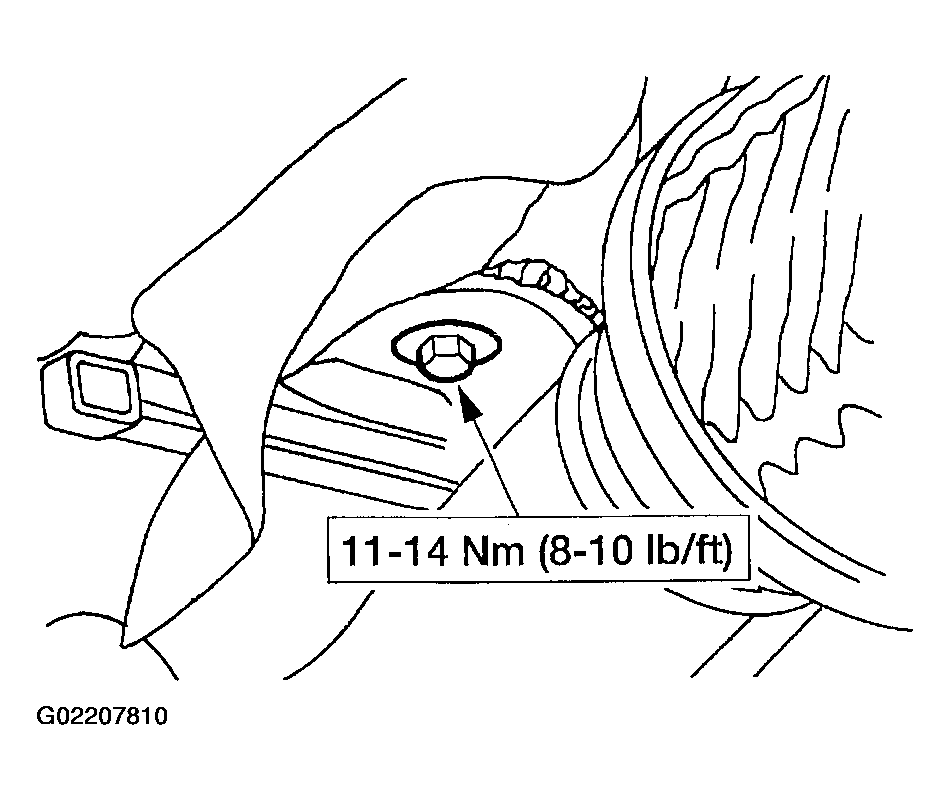

    Fig 5: Installing Heat Shield Front (RH) Bolt
    G02207810Courtesy of FORD MOTOR CO.
