Disassembly And Assembly Of Subassemblies: Differential: Notes

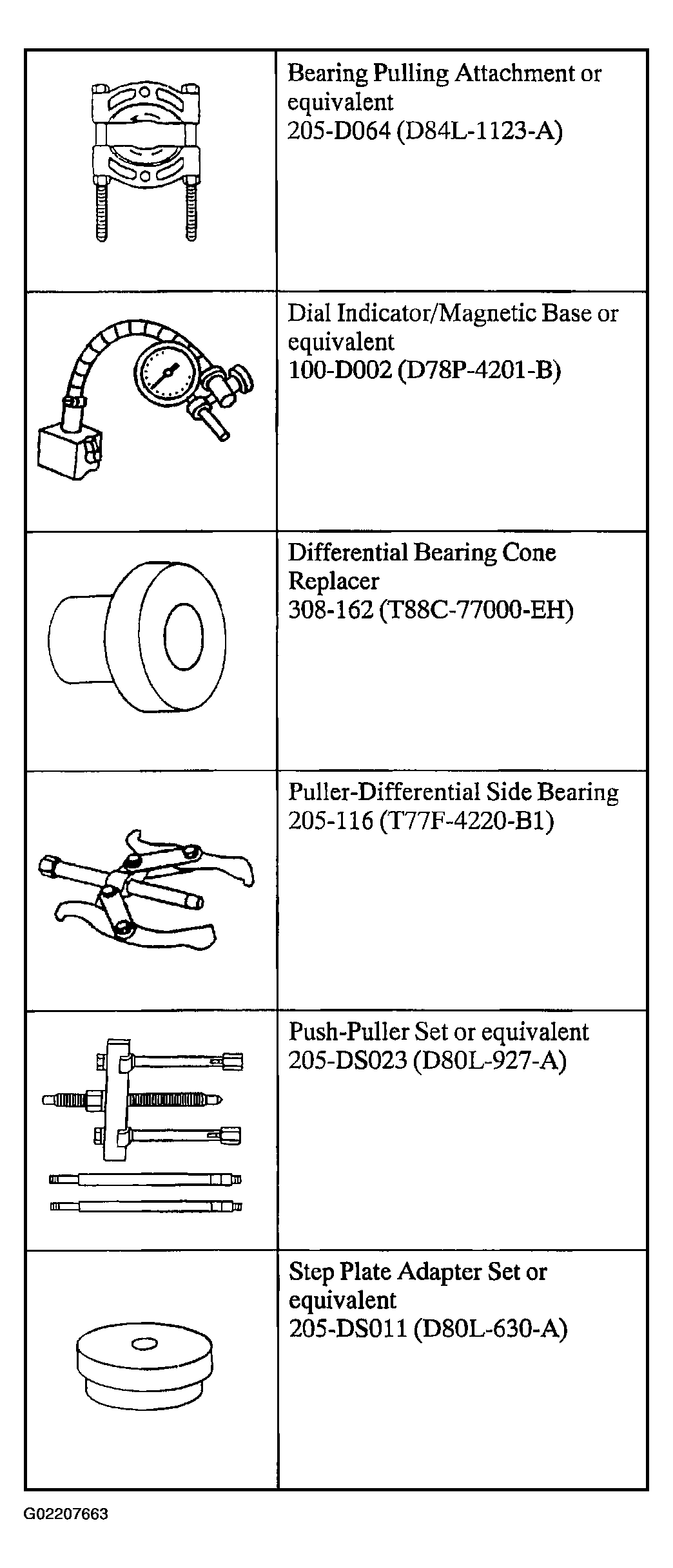

Fig 1: Identifying Special Tools
Courtesy of FORD MOTOR CO.

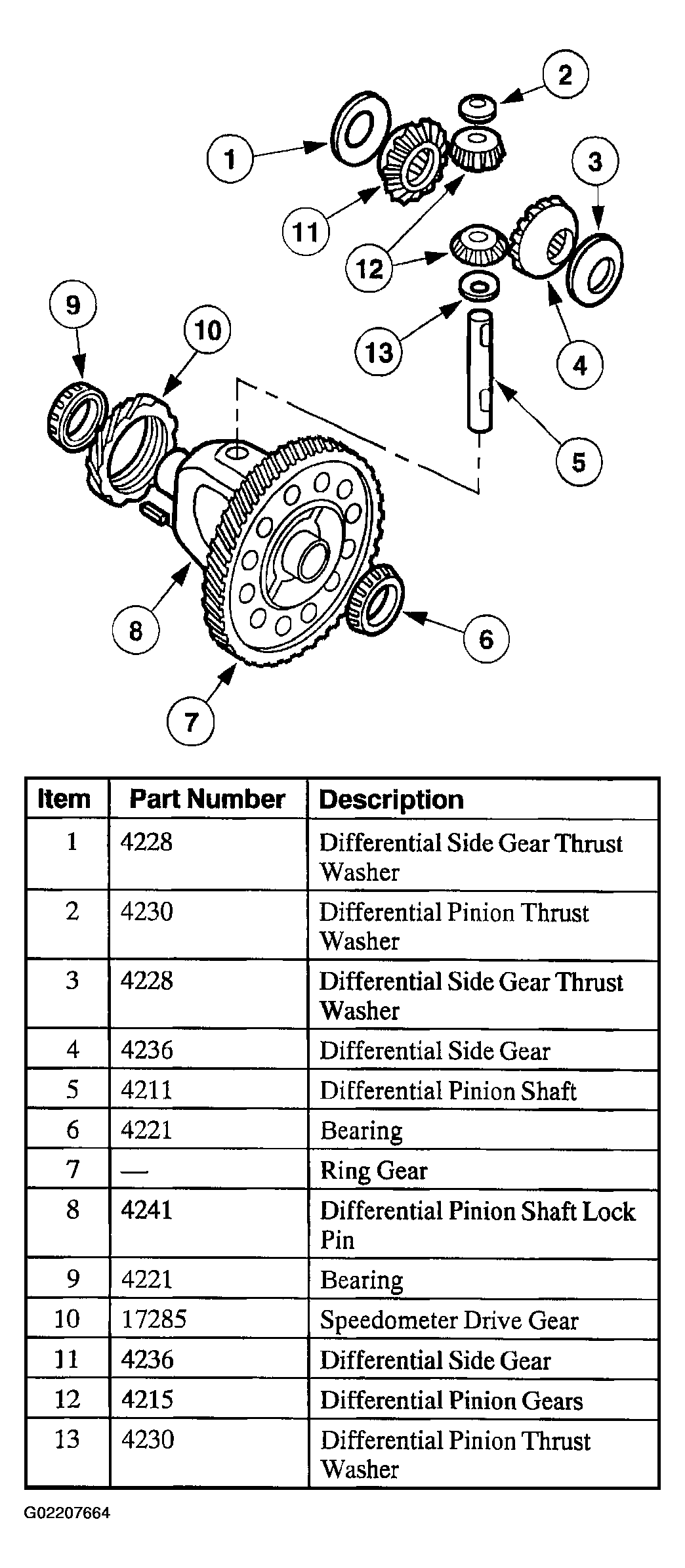

Fig 2: Identifying Differential Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
