Input Shaft: Notes

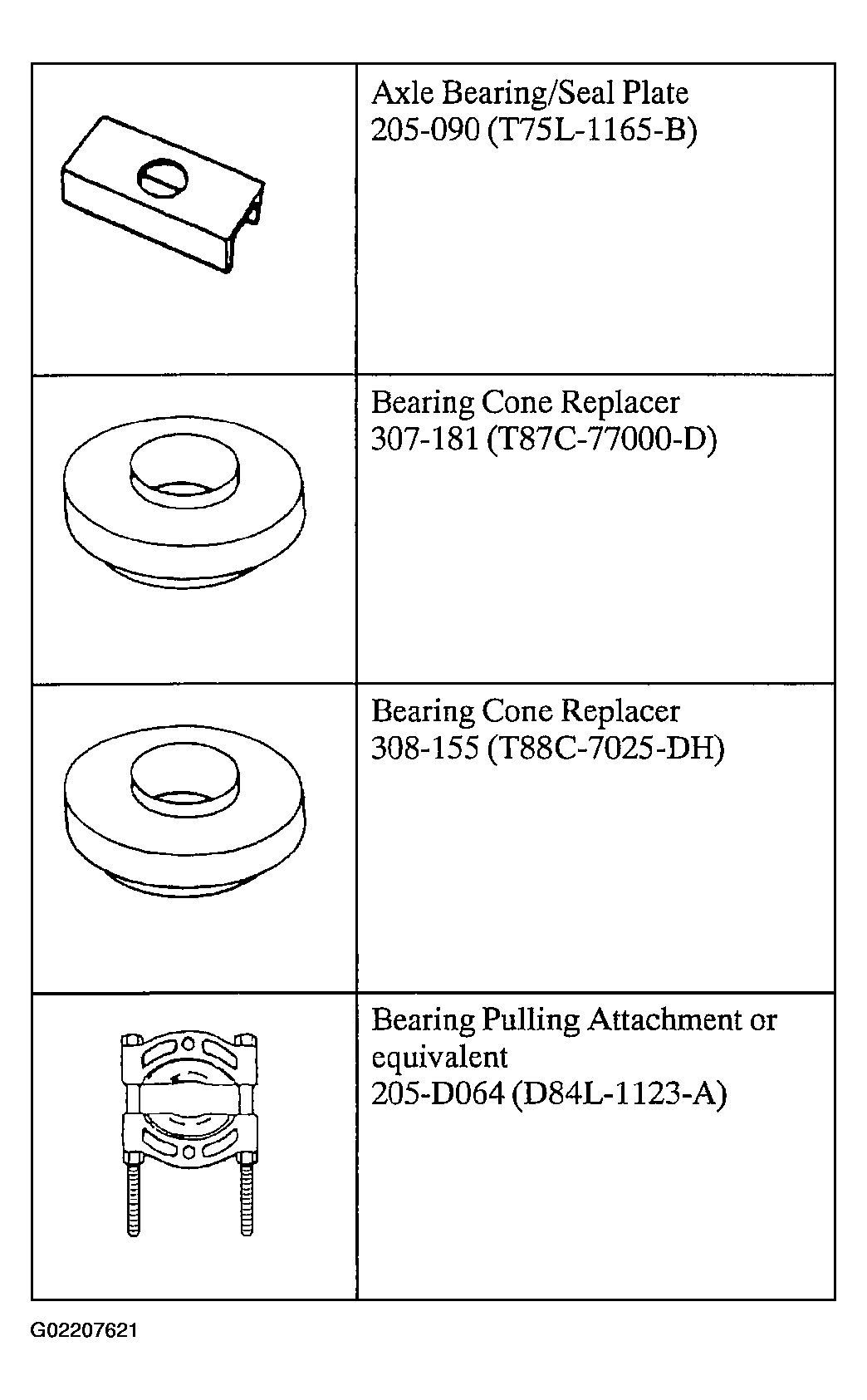

Fig 1: Identifying Special Tools (1 Of 2)
G02207621Courtesy of FORD MOTOR CO.

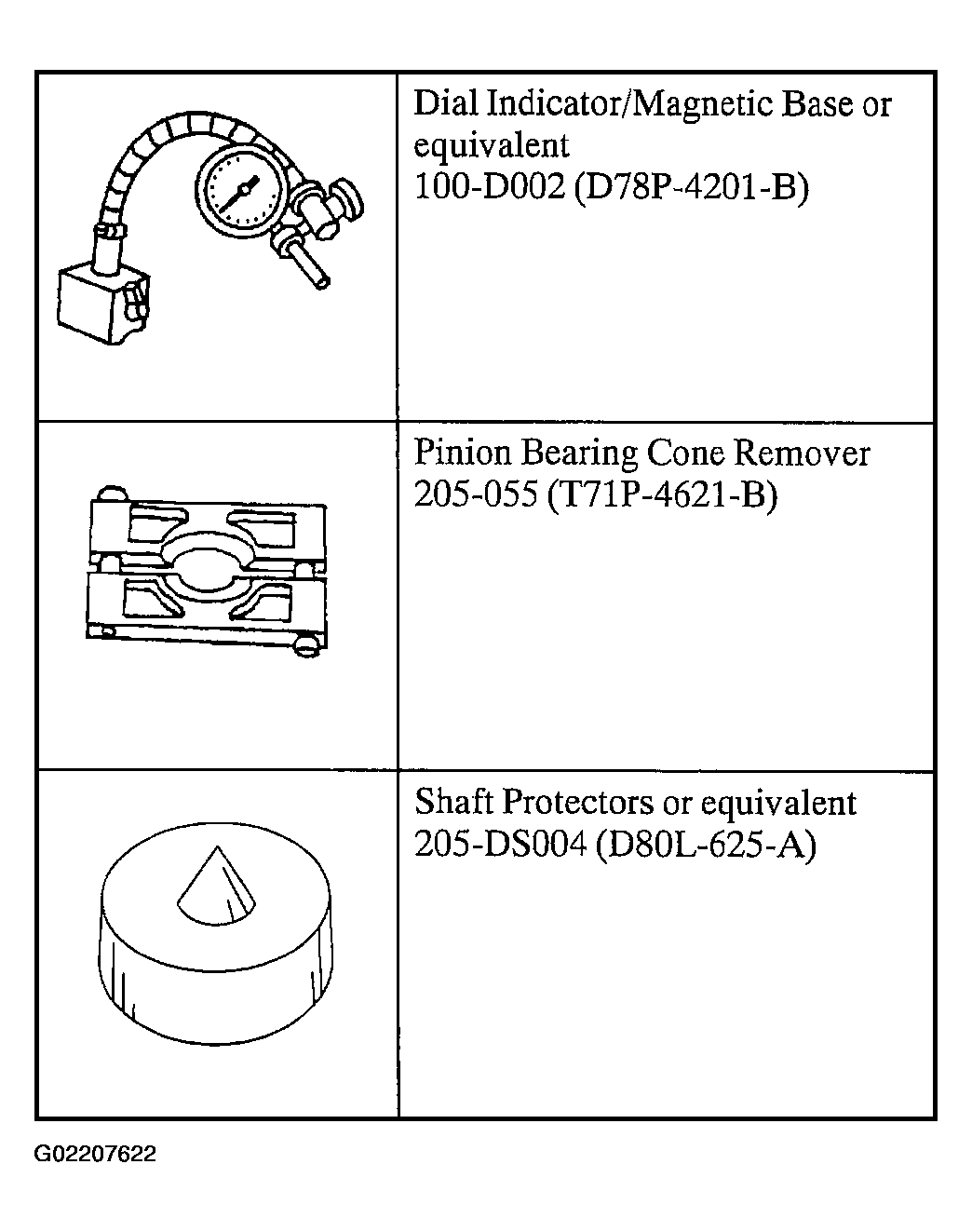

Fig 2: Identifying Special Tools (2 Of 2)
G02207622Courtesy of FORD MOTOR CO.

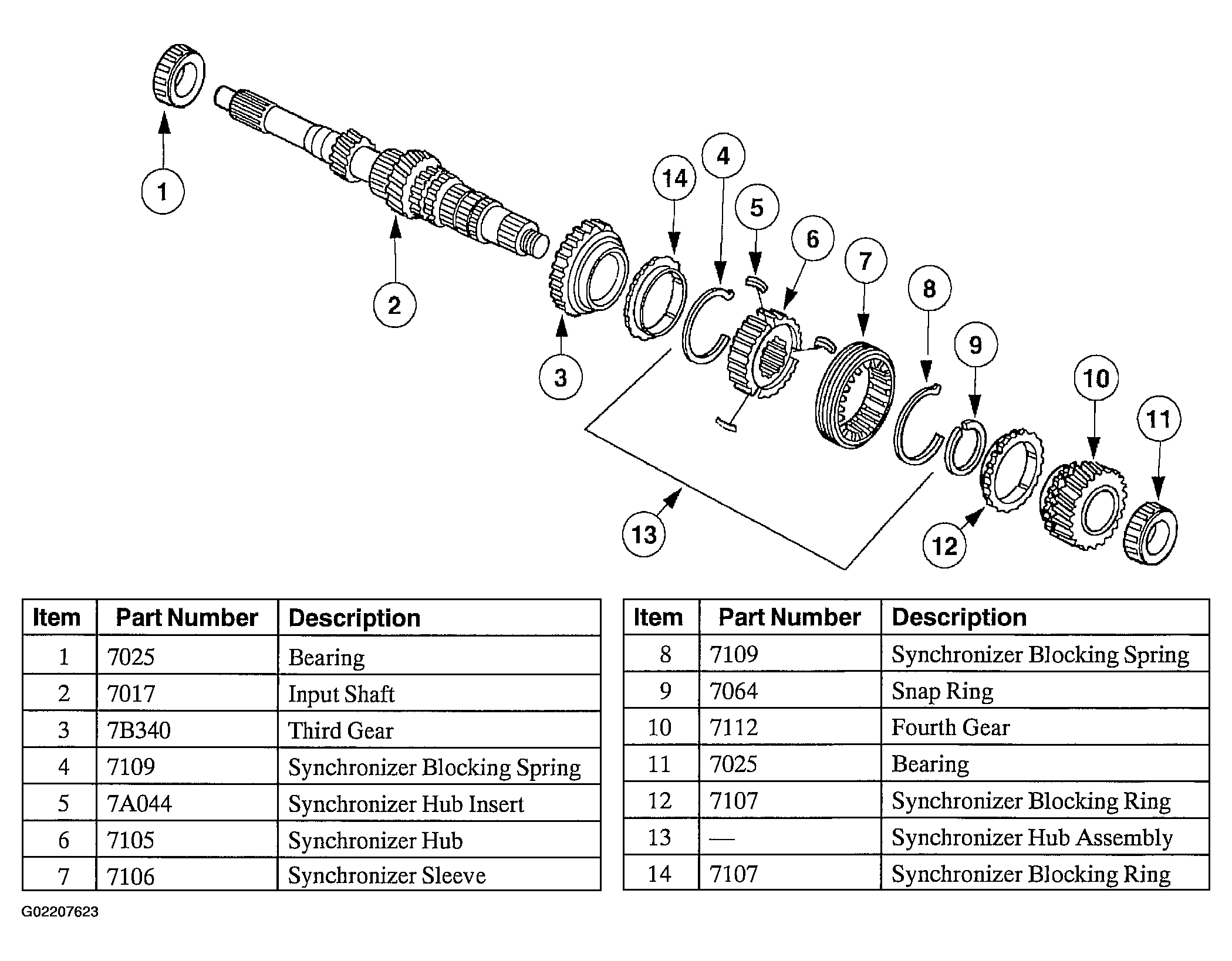

Fig 3: Identifying Input Shaft Components
G02207623Courtesy of FORD MOTOR CO.
