Pinpoint Test G: Poor Vehicle Tracking During Anti-Lock Function

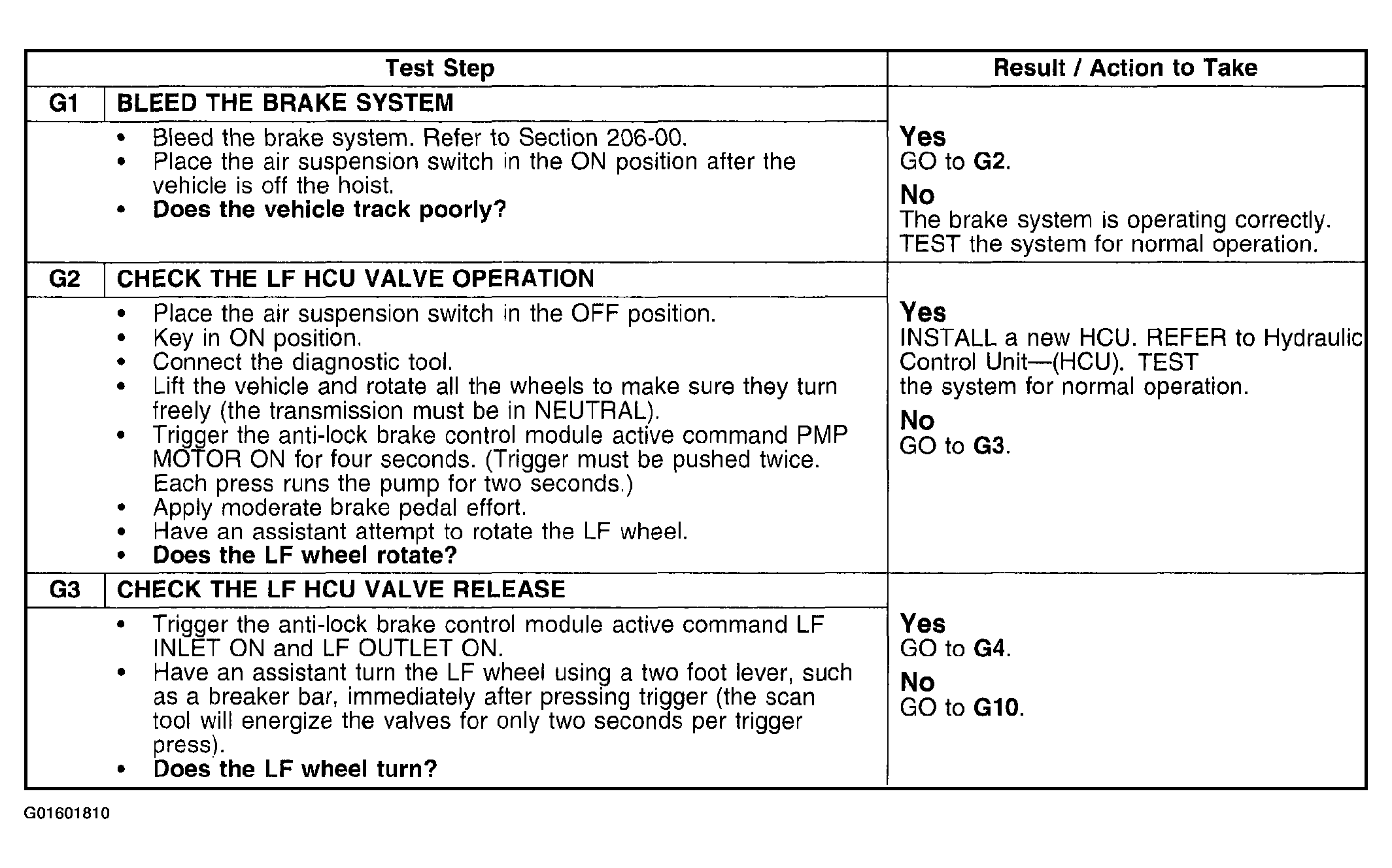

Fig 1: Pinpoint Test G: Poor Vehicle Tracking During Anti-Lock Function (G1-G3)

Courtesy of FORD MOTOR CO.

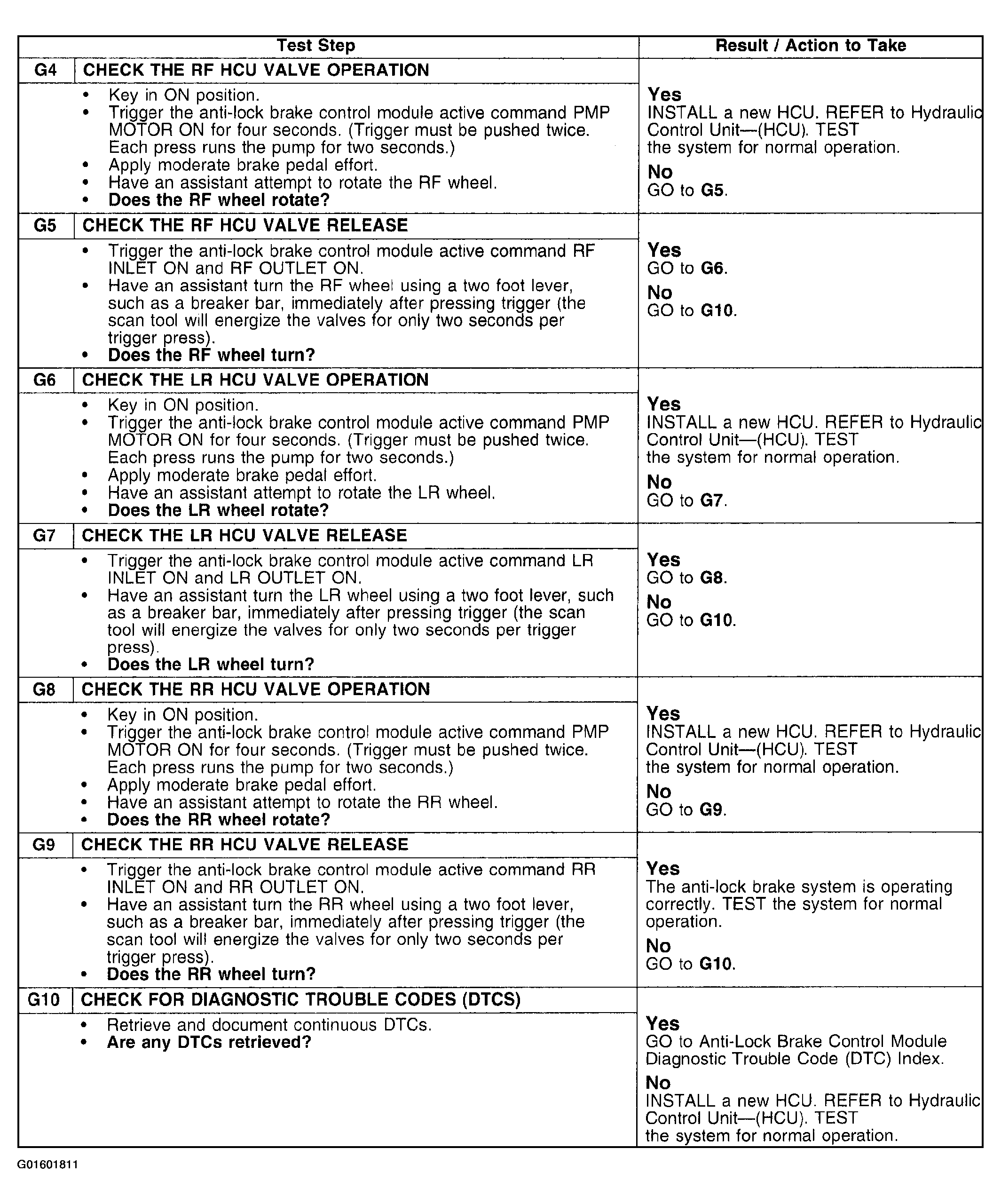

Fig 2: Pinpoint Test G: Poor Vehicle Tracking During Anti-Lock Function (G4-G10)

Courtesy of FORD MOTOR CO.
