Valve - Spring Installed Length

Measure the installed length of each valve spring.
- Refer to ENGINE 4.6L 2V or ENGINE 4.6L 4V .
- If out of specification, install new components. Refer to ENGINE 4.6L 2V or ENGINE 4.6L 4V .

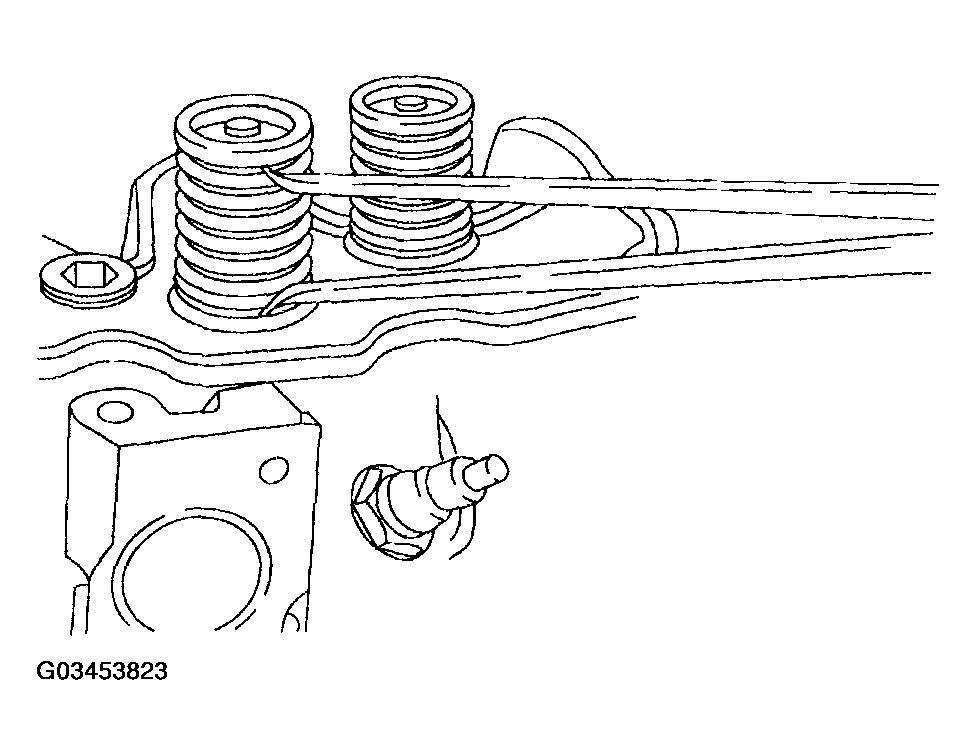

  Fig 1: Measuring Installed Length Of Each Valve Spring
  Courtesy of FORD MOTOR CO.
