In-Vehicle Repair: Flexplate: Installation

  1. Position the flexplate and loosely install the bolts. Tighten the bolts in the sequence shown.

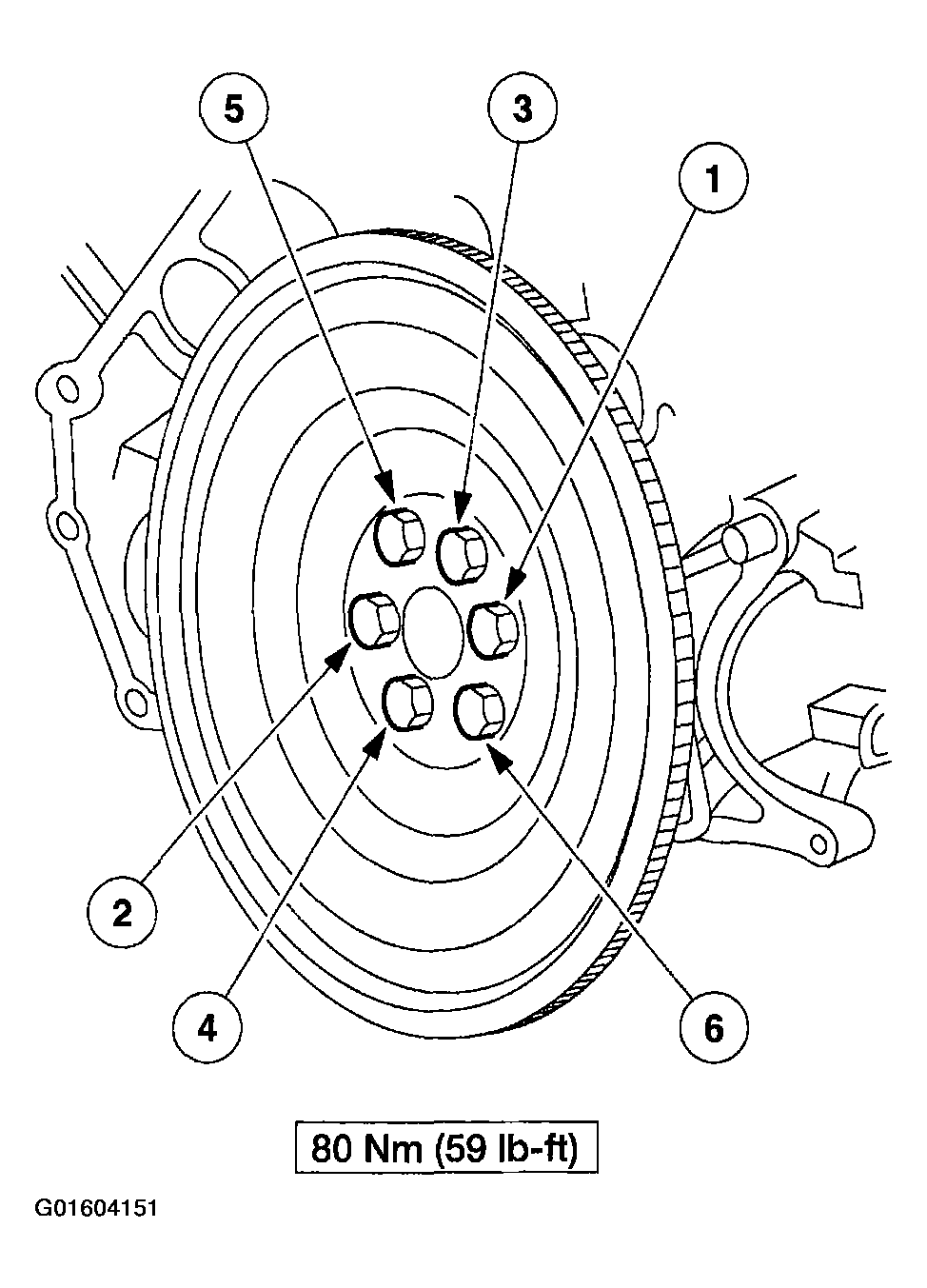

    Fig 1: Installing Flexplate Bolts
    G01604151Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to REMOVAL & INSTALLATION - A/T (4R70W) .
