Pinpoint Test K: DTCS C1229, C1237: Testing

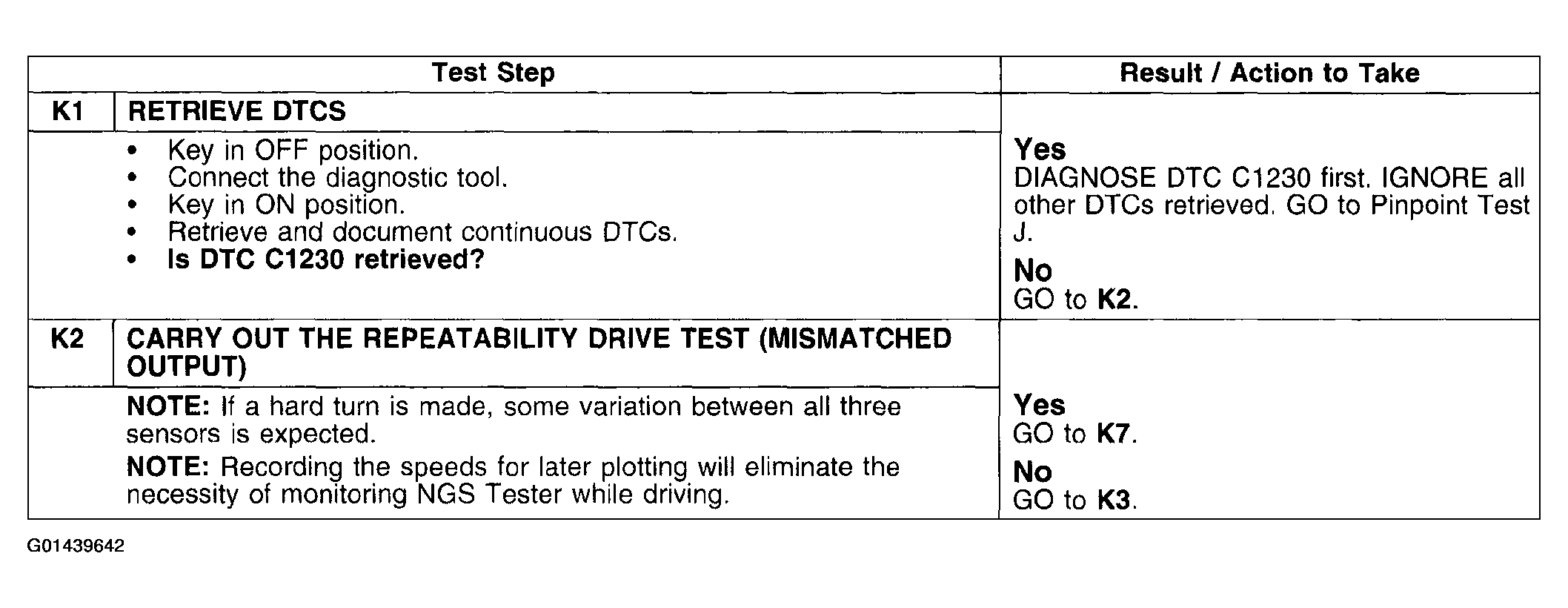

Fig 1: Pinpoint Test K: DTCS C1229, C1237 Rear Anti-Lock Brake Sensor (Dynamic) (K1-K2)

Courtesy of FORD MOTOR CO.

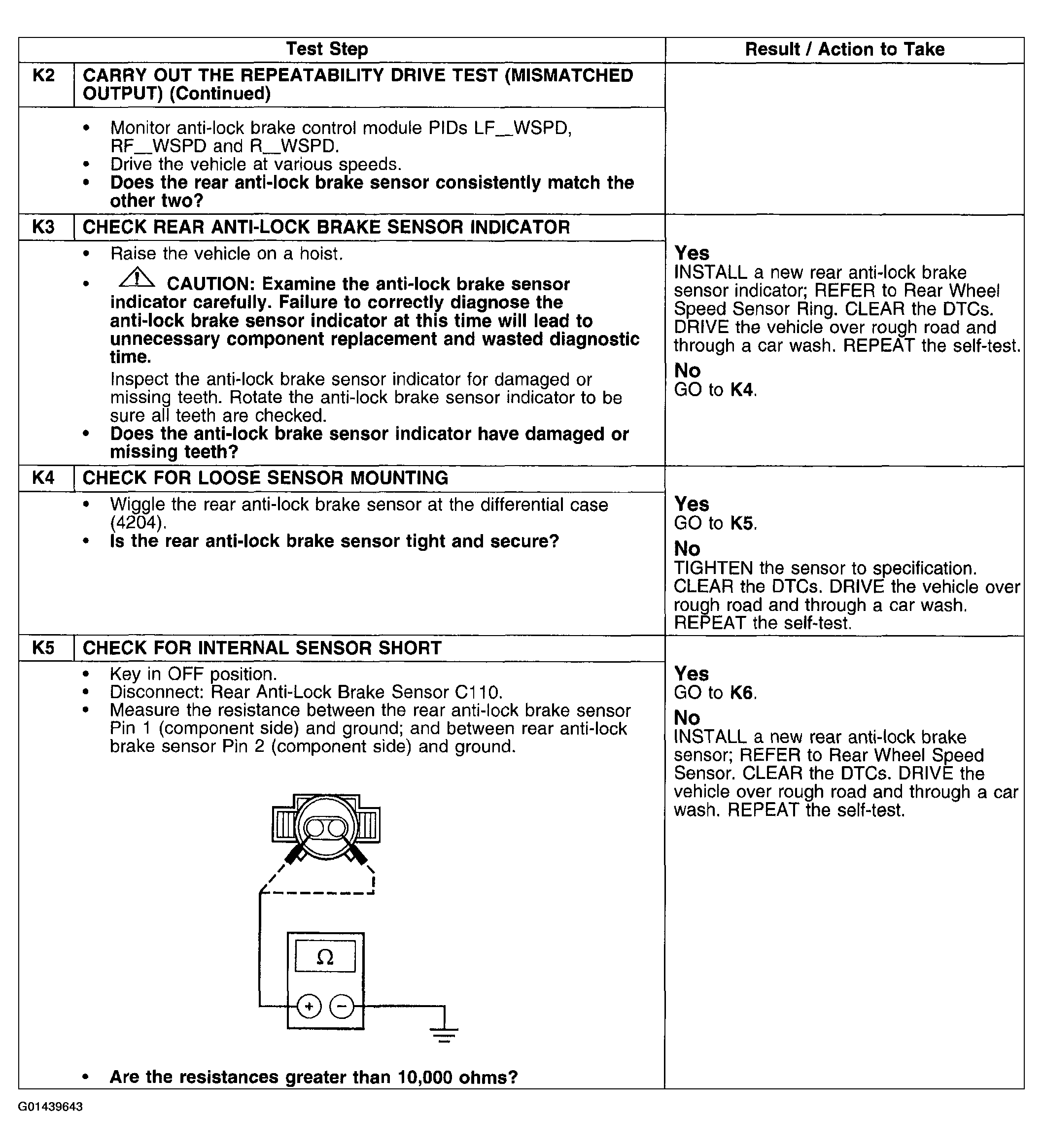

Fig 2: Pinpoint Test K: DTCS C1229, C1237 Rear Anti-Lock Brake Sensor (Dynamic) (K2 Cont.-K5)

Courtesy of FORD MOTOR CO.

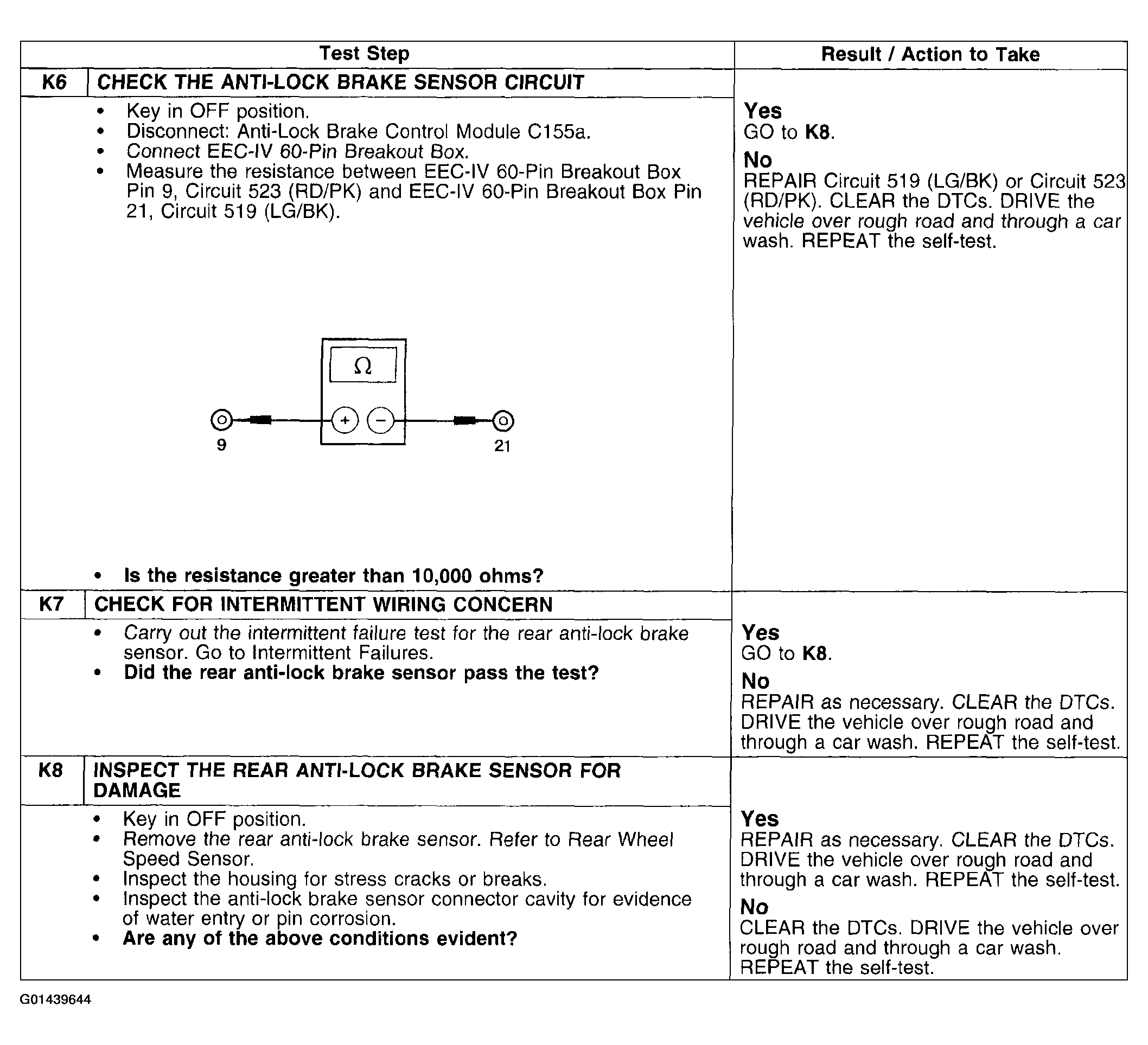

Fig 3: Pinpoint Test K: DTCS C1229, C1237 Rear Anti-Lock Brake Sensor (Dynamic) (K6-K8)

Courtesy of FORD MOTOR CO.
