Brake System Leak Check

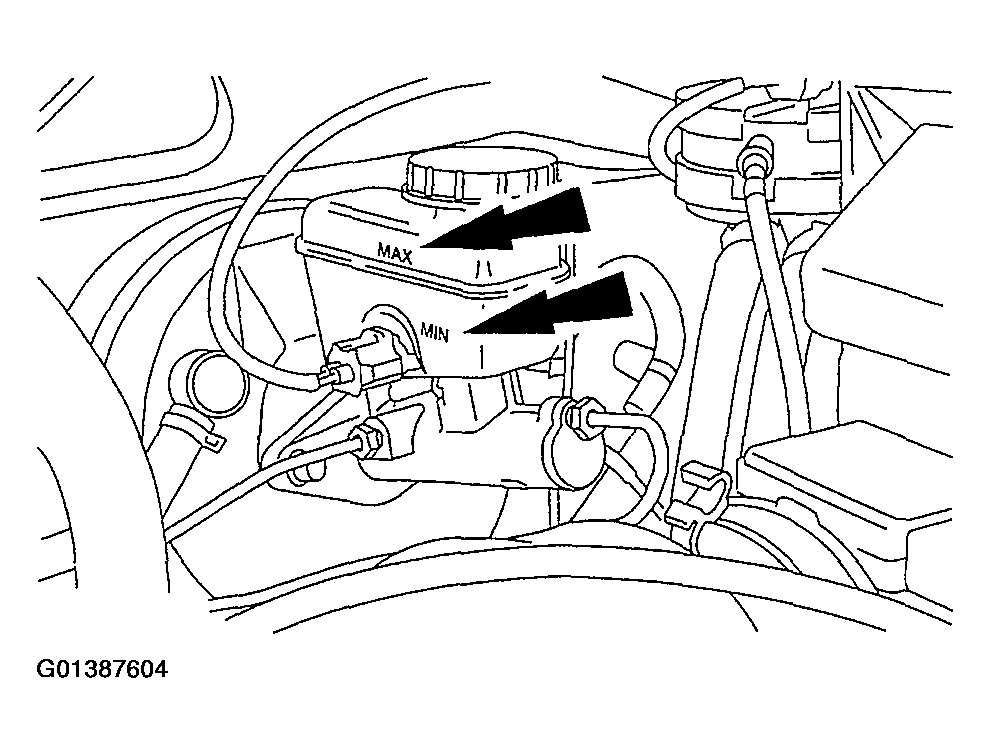

Check the brake fluid level. If the fluid level is below the MIN line on the brake master cylinder reservoir add the necessary amount of High Performance DOT 3 Brake Fluid C6AZ-19542-AB meeting Ford specification ESA-M6C25-A or DOT 3 equivalent.

Fig 1: Checking Brake Fluid Level
Courtesy of FORD MOTOR CO.

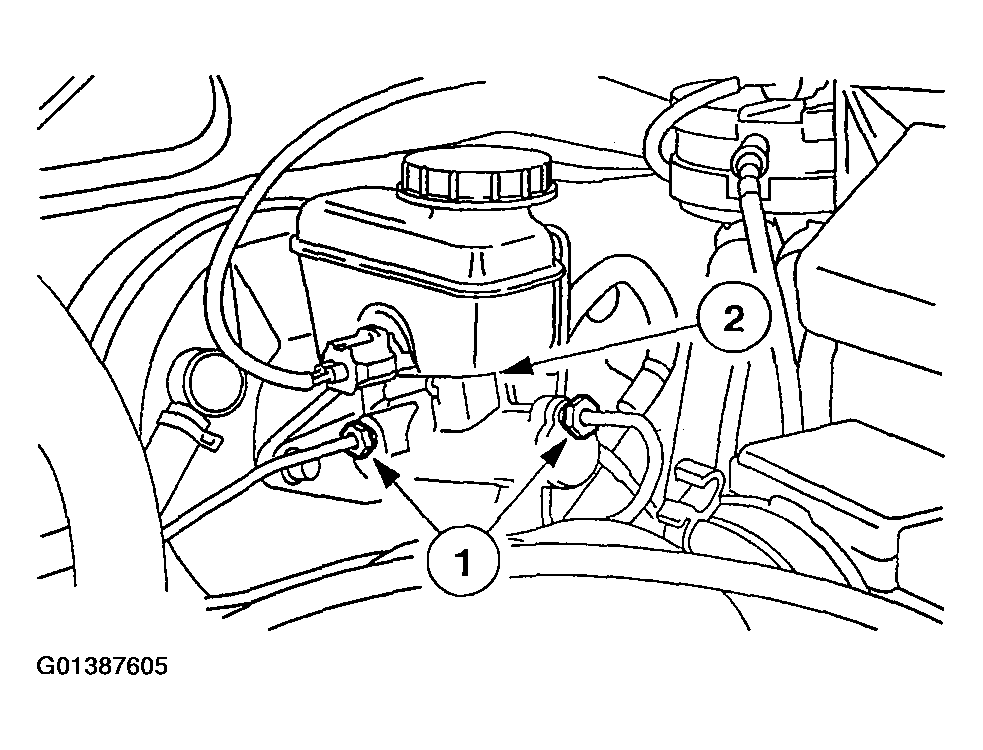

Inspect the (1) brake line nuts and the (2) brake master cylinder reservoir for fluid leaks.

Fig 2: Locating Brake Line Nuts And Brake Master Cylinder Reservoir
Courtesy of FORD MOTOR CO.
Inspect the brake lines and hoses for fluid leaks.
Inspect the rear wheel cylinders for leaks.
Inspect the front disc brake calipers for leaks.
If a hydraulic leak is detected, refer to HYDRAULIC BRAKE ACTUATION .
