ABS Control Module Connector End View (C155)

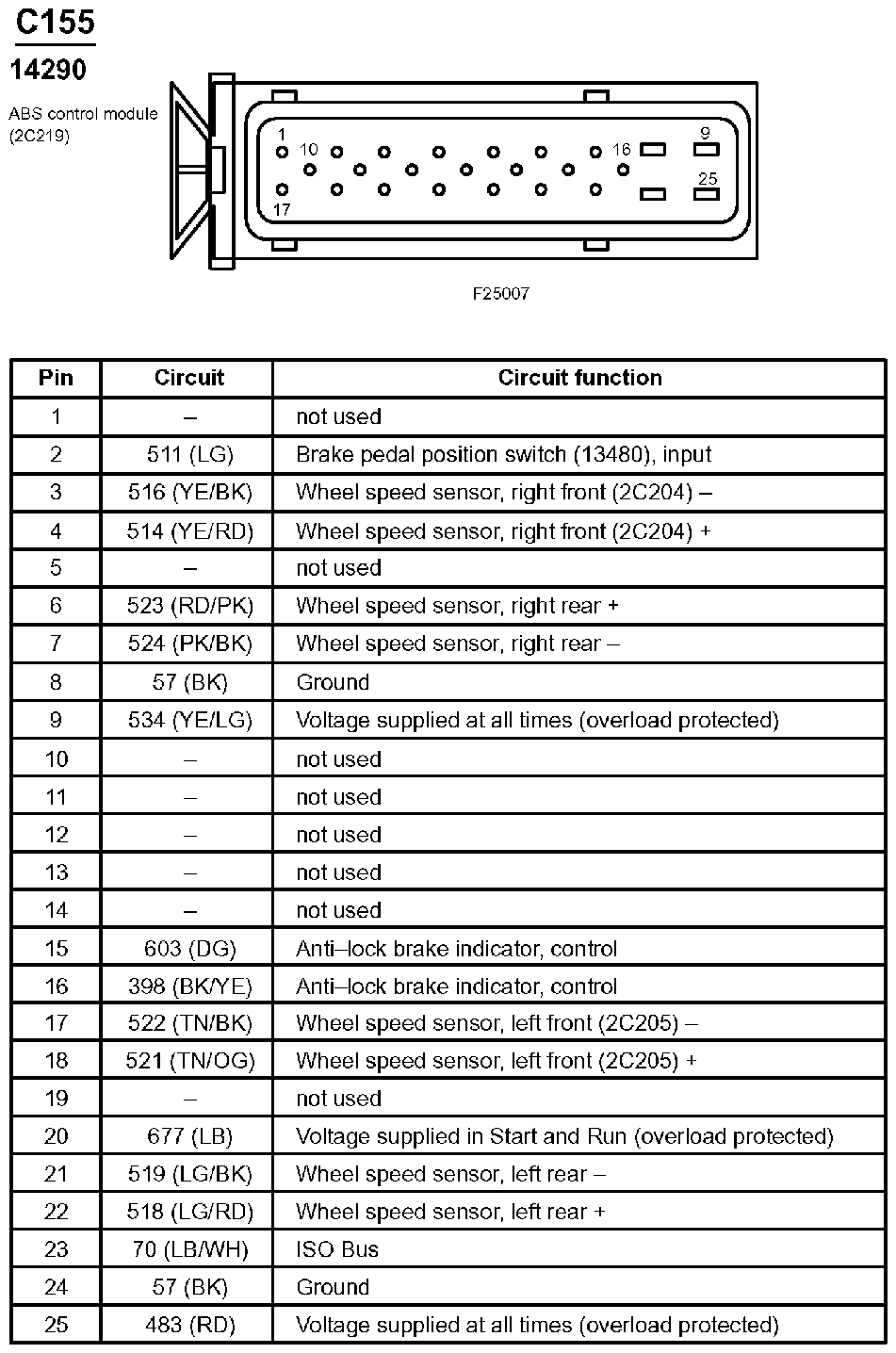

Fig 1: ABS Control Module Connector End View (C155)
G07831438Courtesy of FORD MOTOR CO.
