Restraints Control Module Connector End View (C2041a)

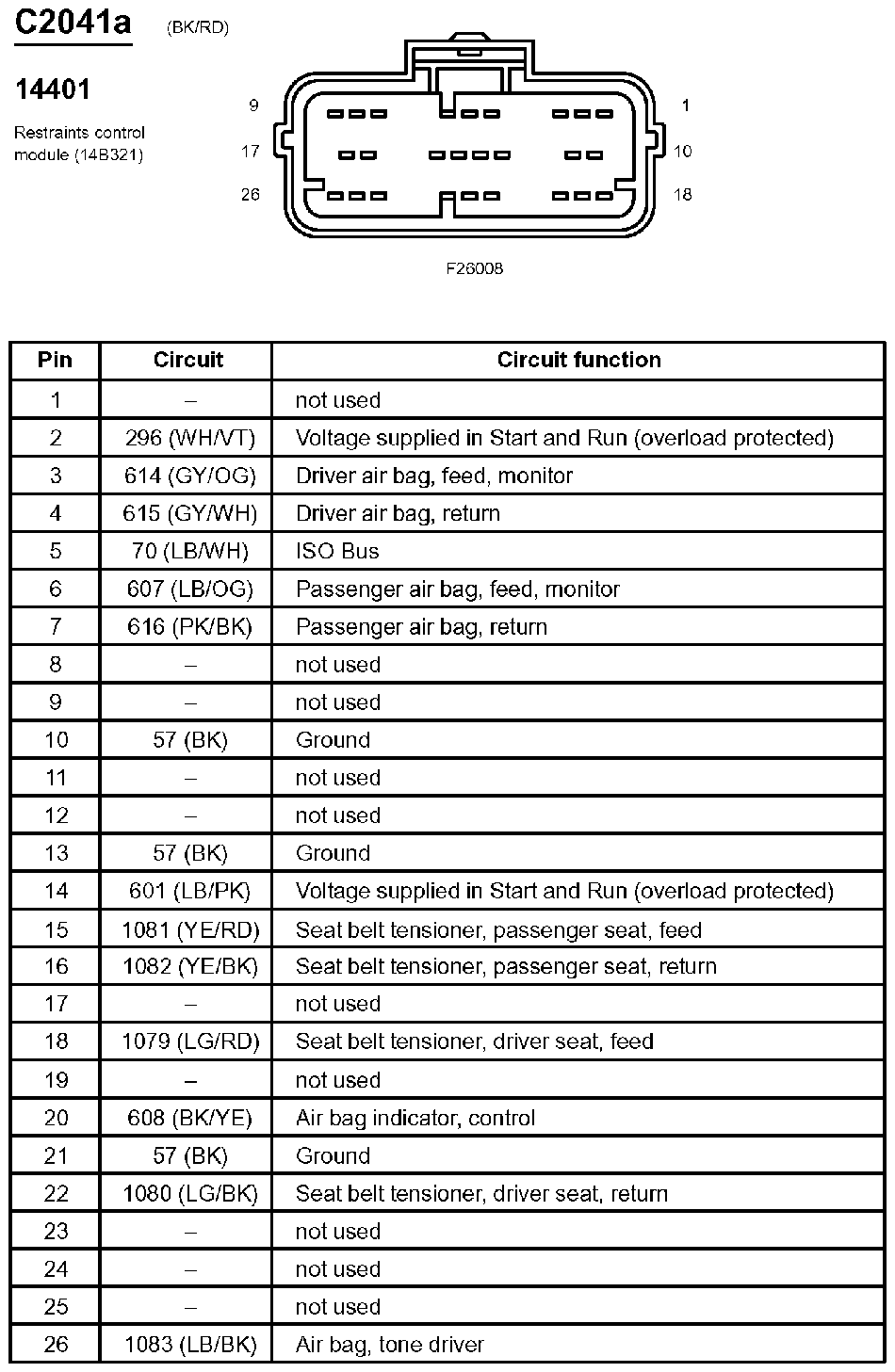

Fig 1: Restraints Control Module Connector End View (C2041a)
G07831639Courtesy of FORD MOTOR CO.
