Removal And Installation: Resonator

Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
Remove and discard the nuts.
- Discard the gasket.

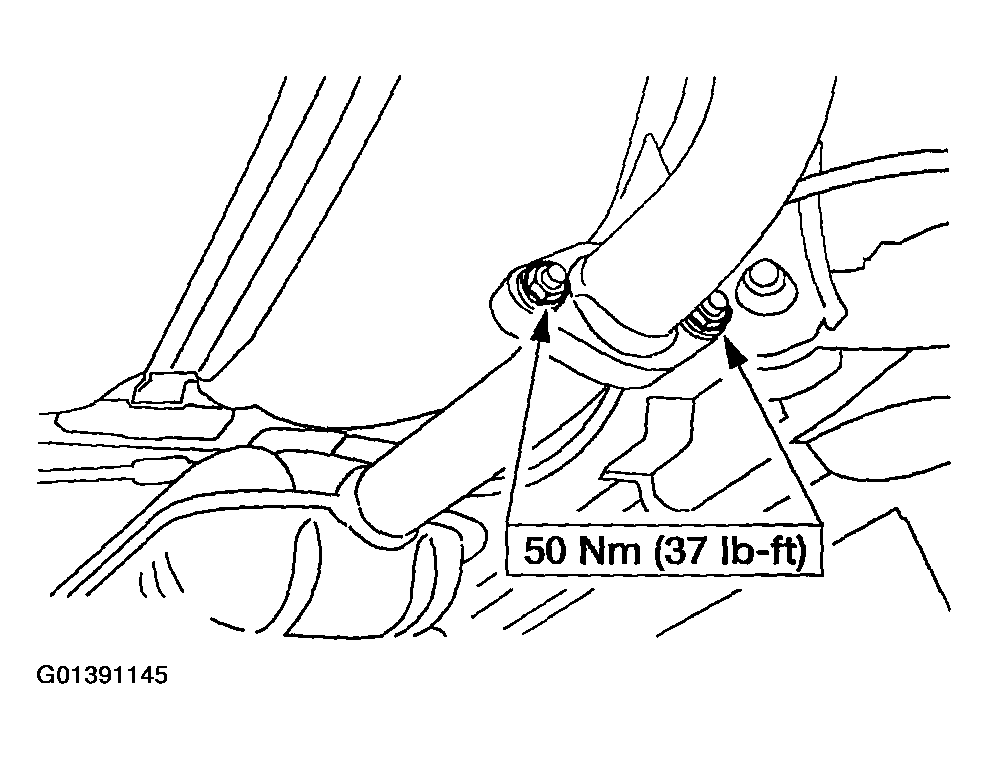

  Fig 1: Removing Nuts
  Courtesy of FORD MOTOR CO.
Disconnect the resonator from the hanger and remove the resonator.

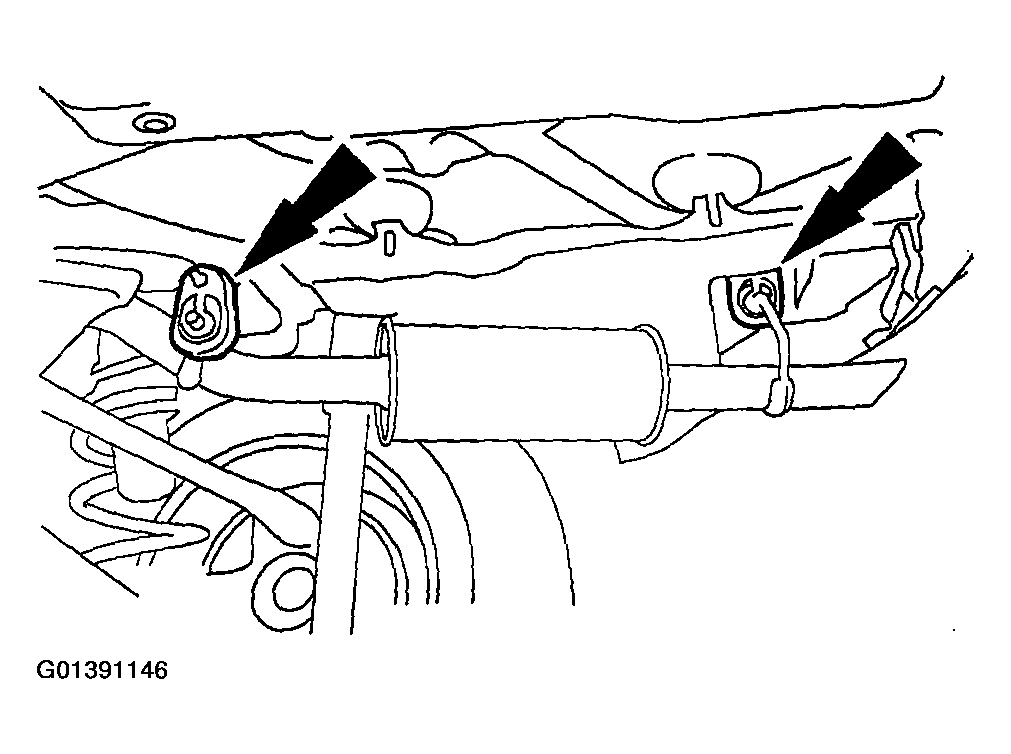

Fig 2: Disconnecting Resonator From Hanger
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
