Symptom Chart

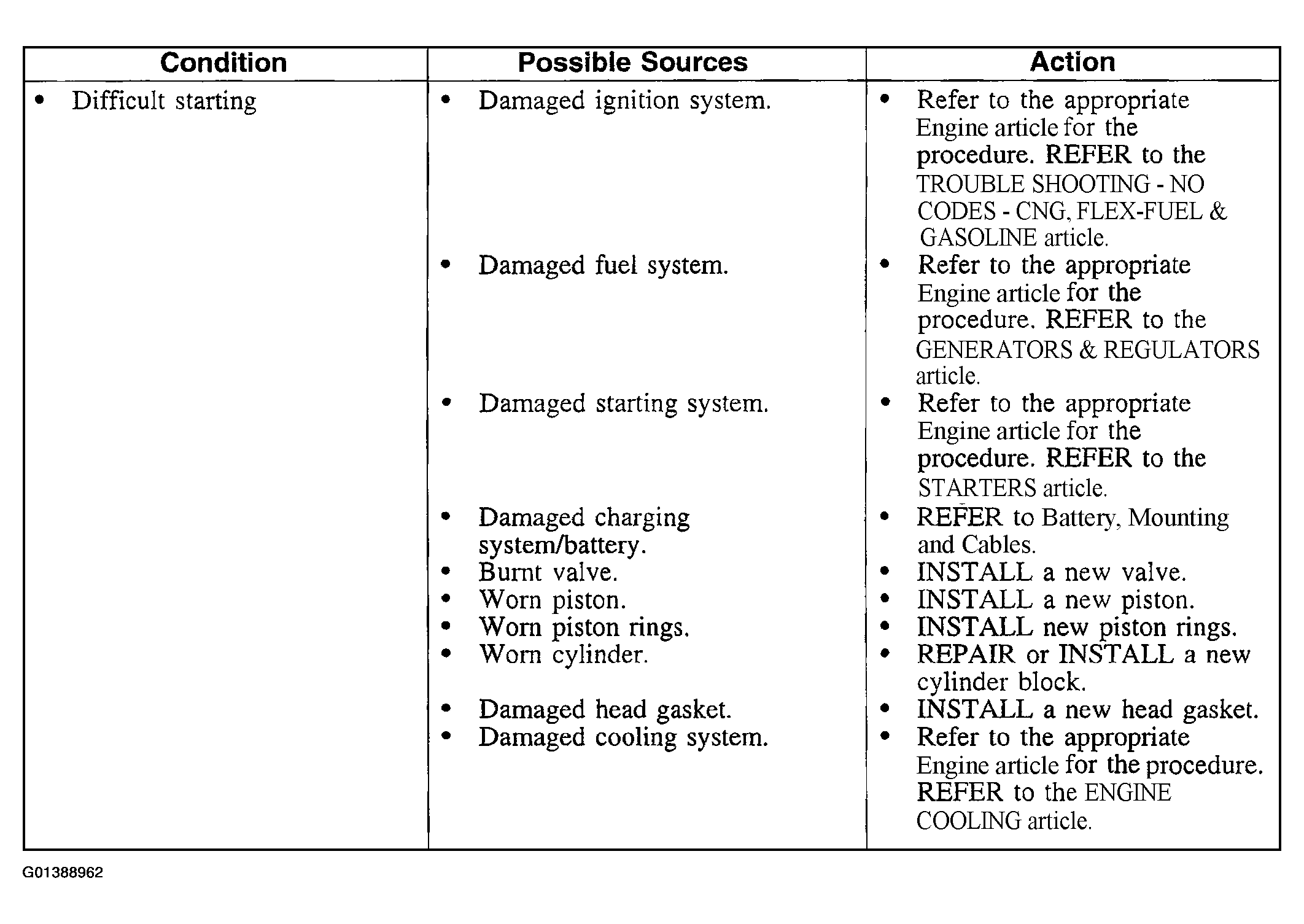

Fig 1: Symptom Chart (1 Of 5)
G01388962Courtesy of FORD MOTOR CO.

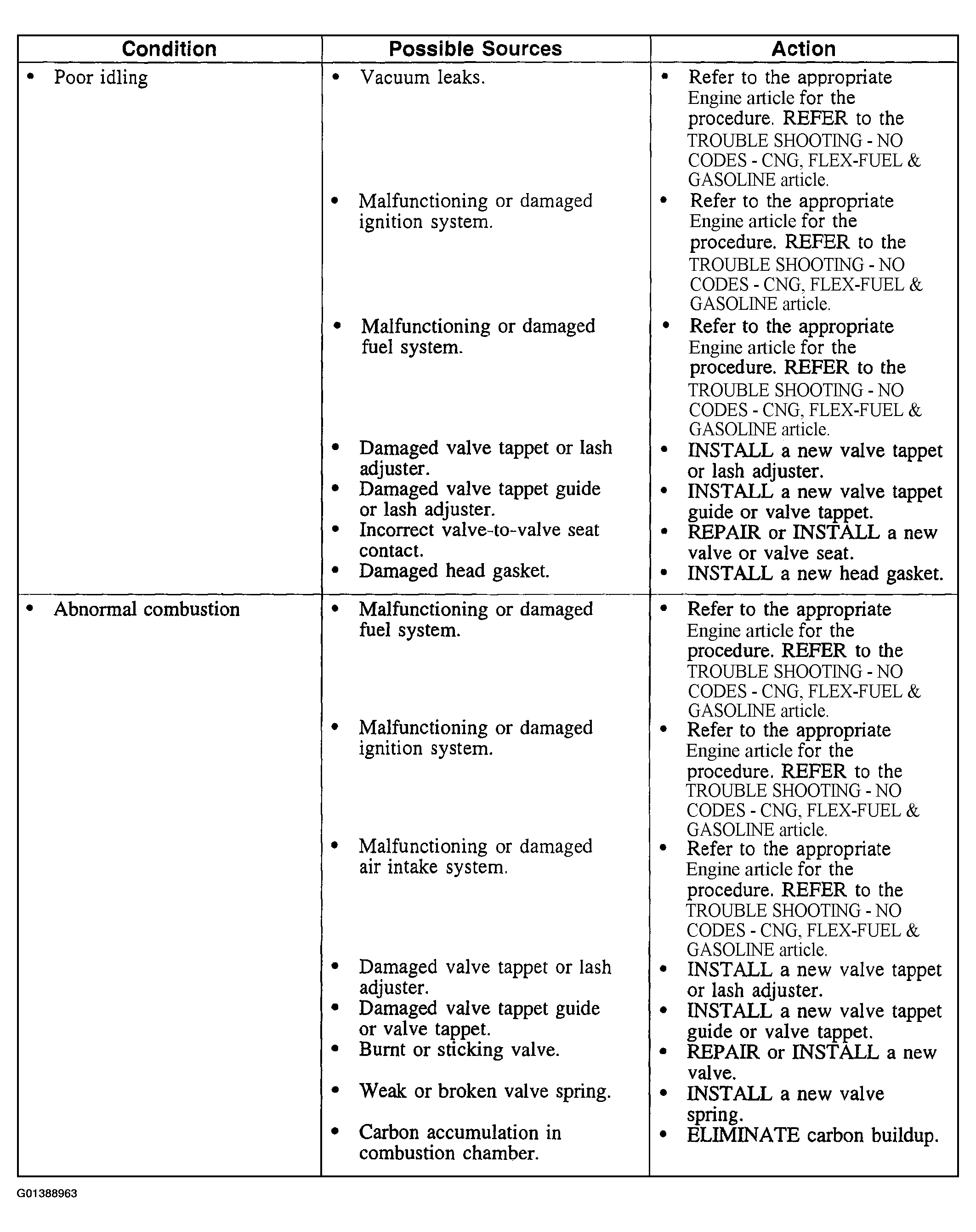

Fig 2: Symptom Chart (2 Of 5)
G01388963Courtesy of FORD MOTOR CO.

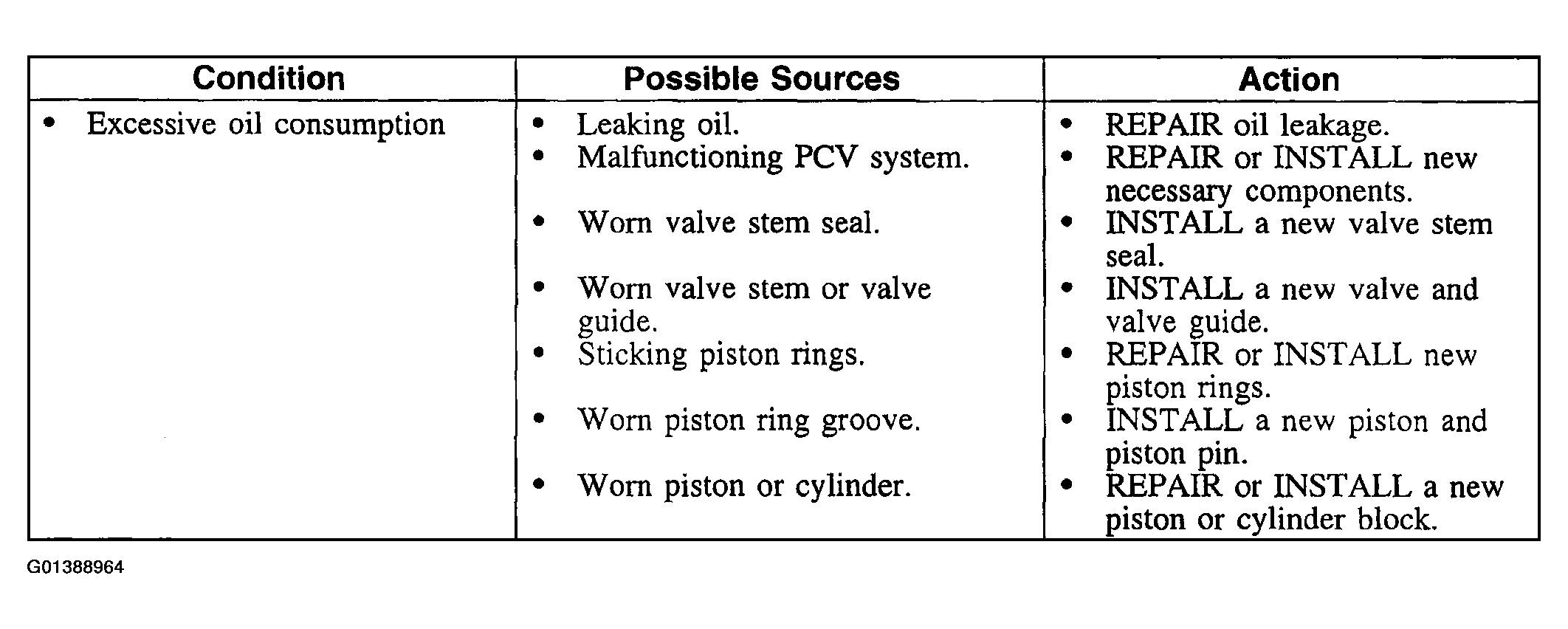

Fig 3: Symptom Chart (3 Of 5)
G01388964Courtesy of FORD MOTOR CO.

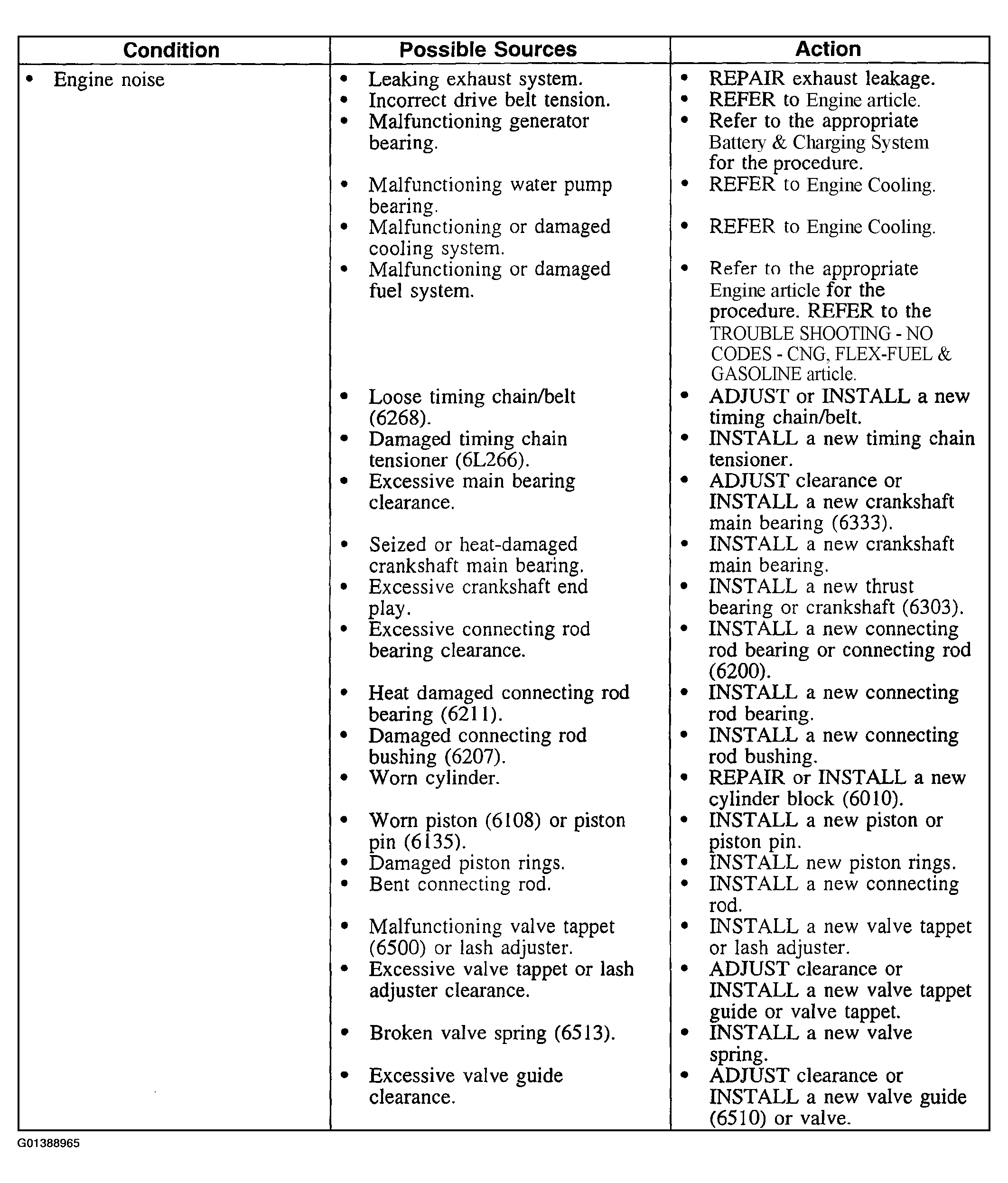

Fig 4: Symptom Chart (4 Of 5)
G01388965Courtesy of FORD MOTOR CO.

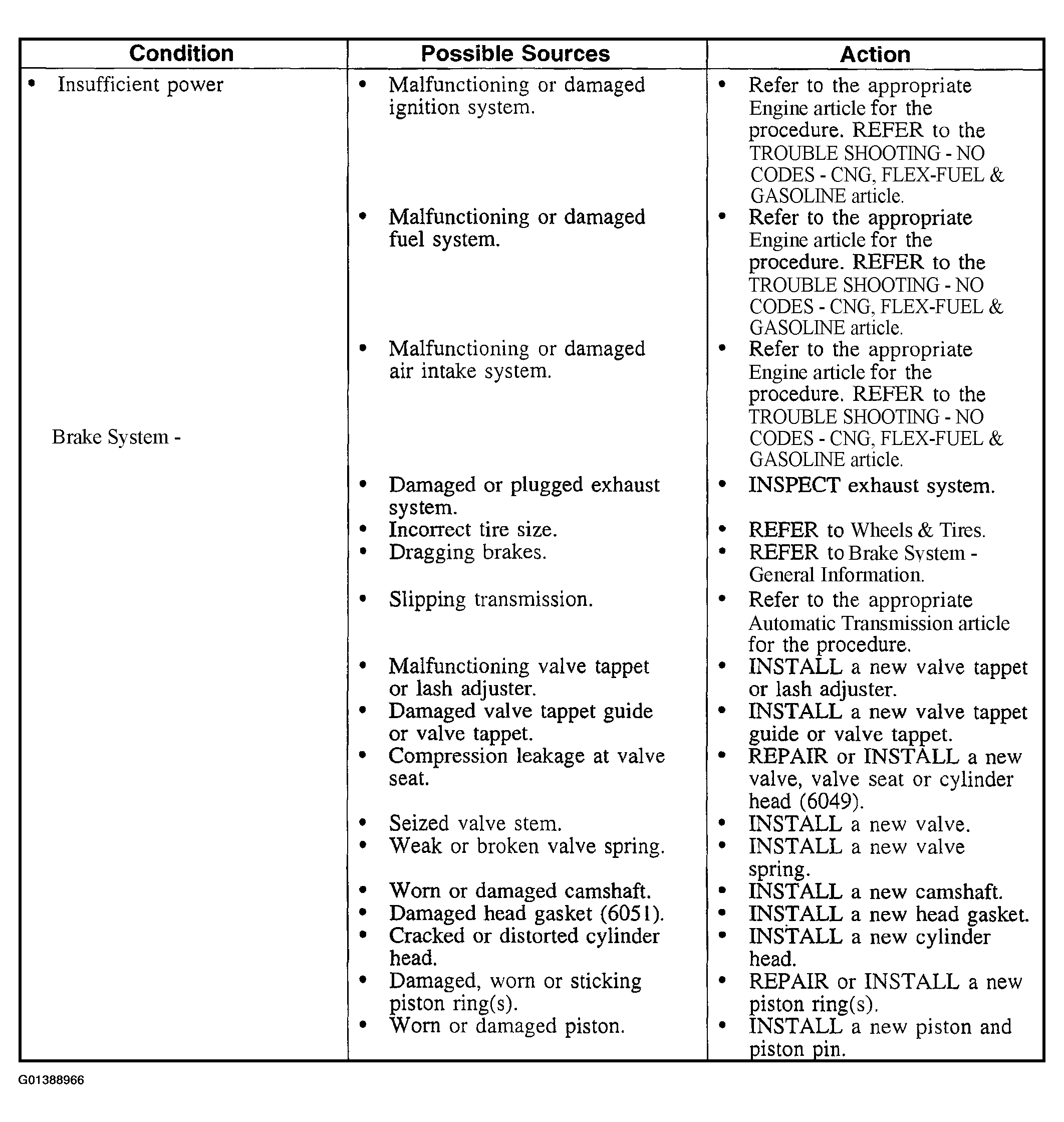

Fig 5: Symptom Chart (5 Of 5)
G01388966Courtesy of FORD MOTOR CO.
