Valve Spring Installed Length

Measure the installed length of each valve spring.
- Refer to the appropriate ENGINE article for the procedure.
- If out of specification, install new components.

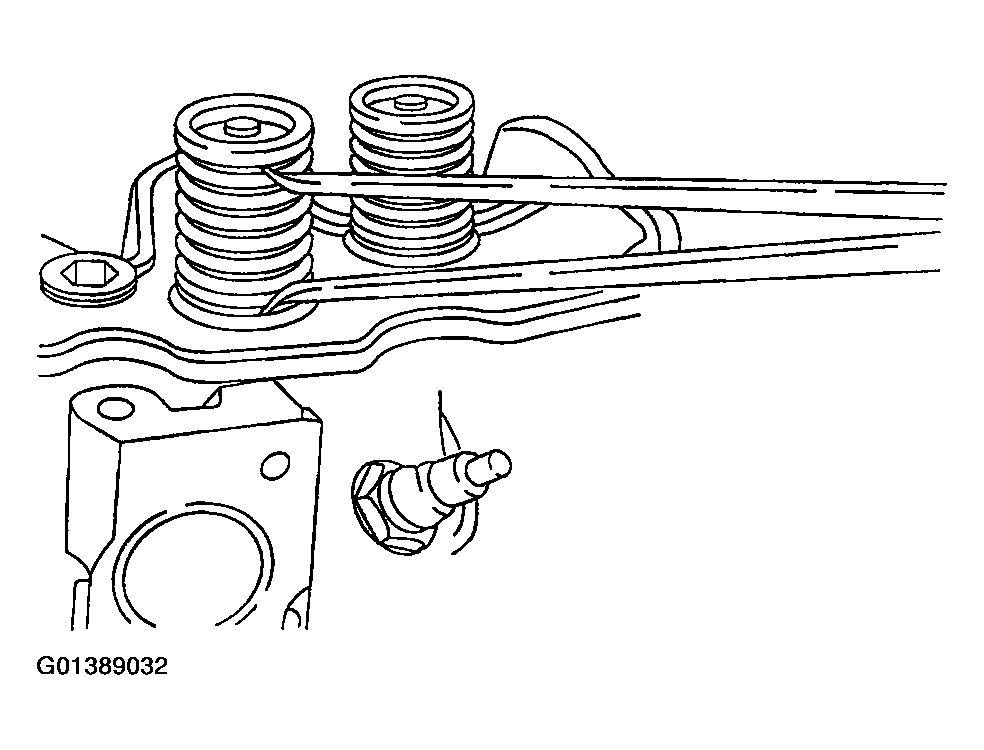

  Fig 1: Measuring Valve Spring Installed Length
  Courtesy of FORD MOTOR CO.
