Diagnostic Flow Chart

WARNING: This page is about a different variant/trim than selected.

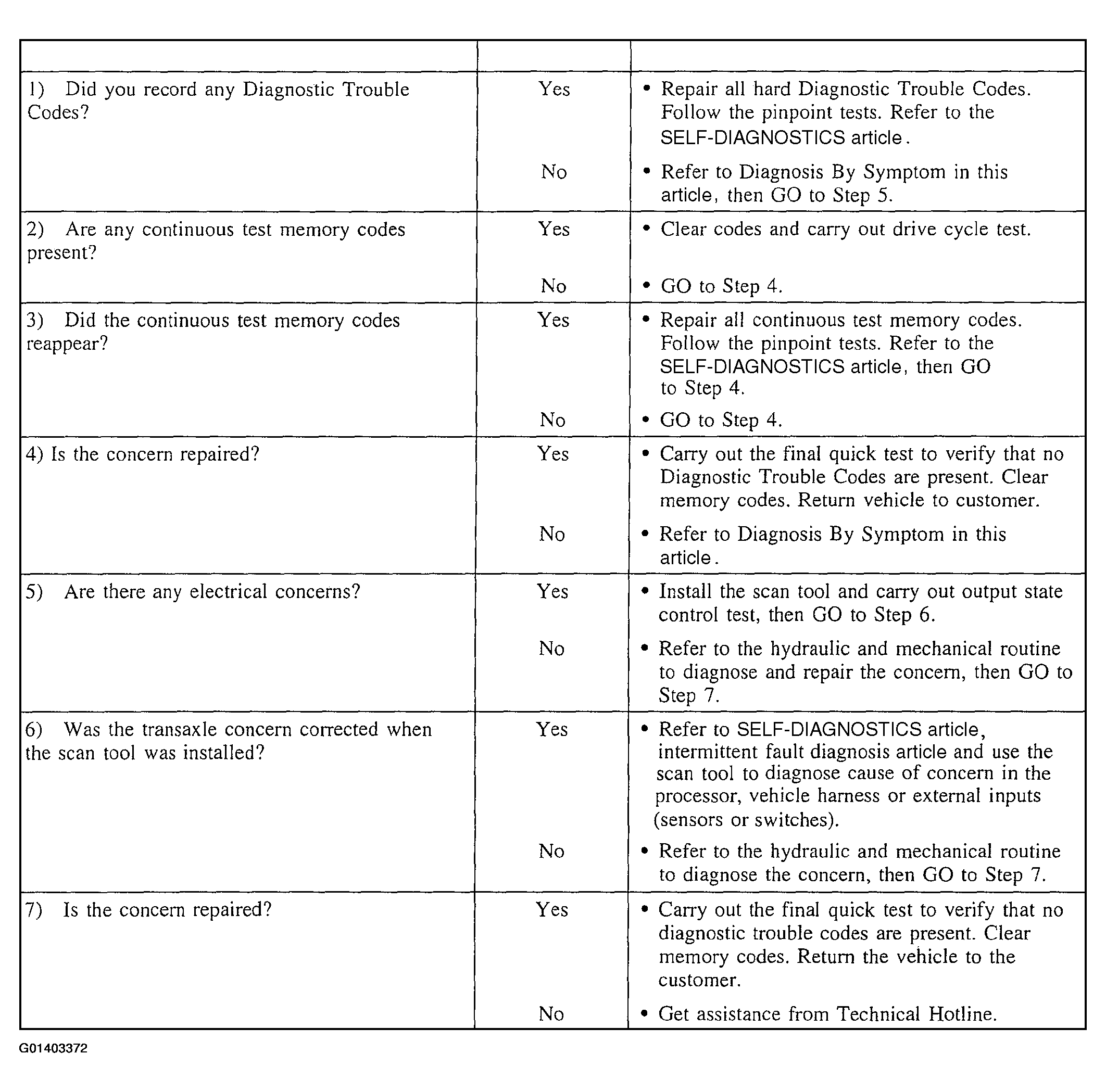

Fig 1: Diagnostic Chart
G01403372Courtesy of FORD MOTOR CO.
