Generic Electronic Module (GEM) Connector End View (C201a)

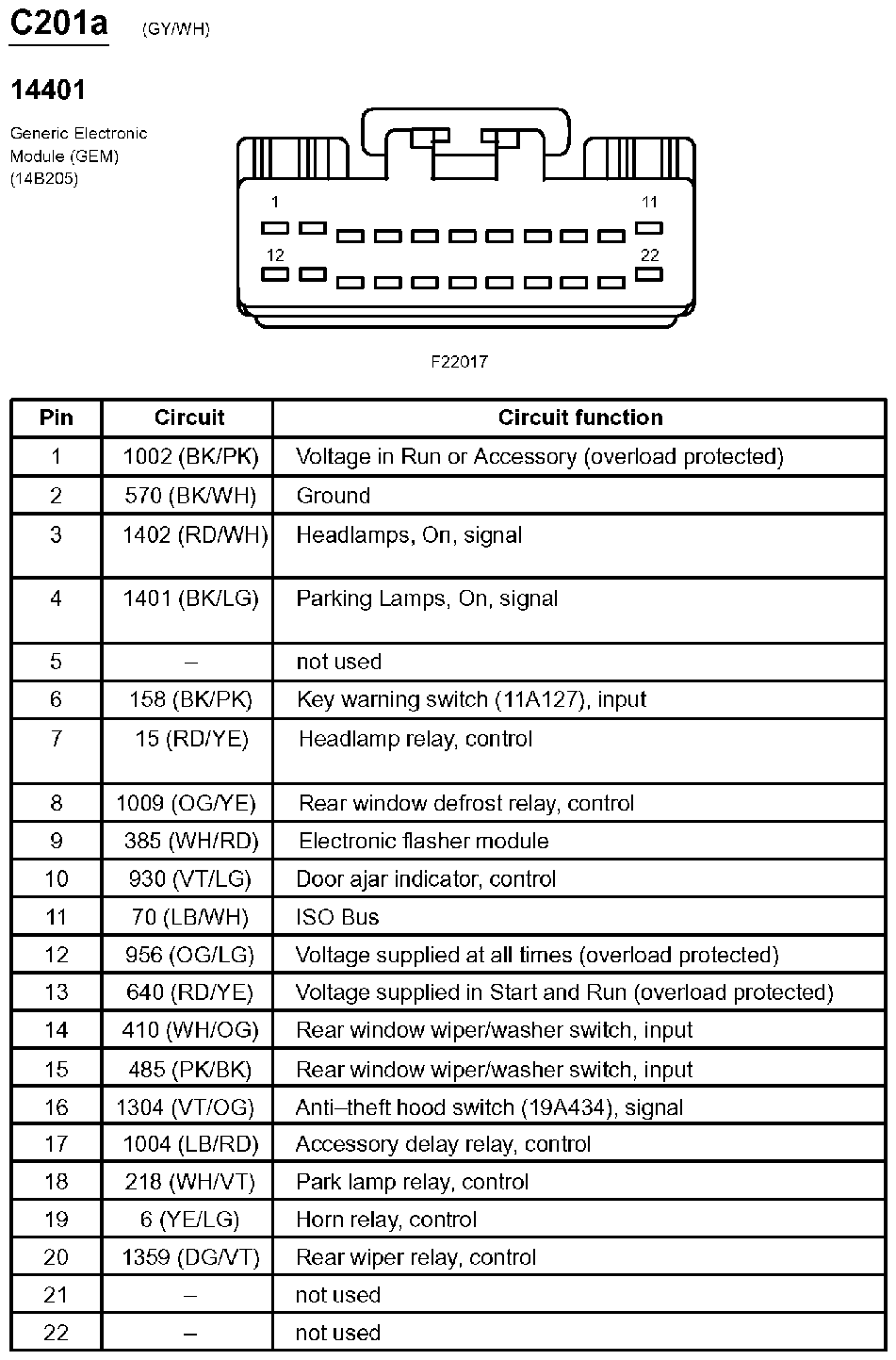

Fig 1: Generic Electronic Module (GEM) Connector End View (C201a)
G07831458Courtesy of FORD MOTOR CO.
